- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
fine ribbed rubber sheet
-
Color:
-
black, red,white etc
-
Material:
-
SBR,NBR,etc
-
Width:
-
Max 2m
-
Length:
-
Costomizable
-
Thickness:
-
3-6mm
-
Character:
-
Cloth Insertion Available
-
Sample:
-
on request
-
Standard:
-
ISO 9001:2000
-
Surface:
-
smooth or pattern
-
MOQ:
-
500kg
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Bothwin
-
Model Number:
-
fine ribbed rubber sheet
-
Color:
-
black, red,white etc
-
Material:
-
SBR,NBR,etc
-
Width:
-
Max 2m
-
Length:
-
Costomizable
-
Thickness:
-
3-6mm
-
Character:
-
Cloth Insertion Available
-
Sample:
-
on request
-
Standard:
-
ISO 9001:2000
-
Surface:
-
smooth or pattern
-
MOQ:
-
500kg
Product Description

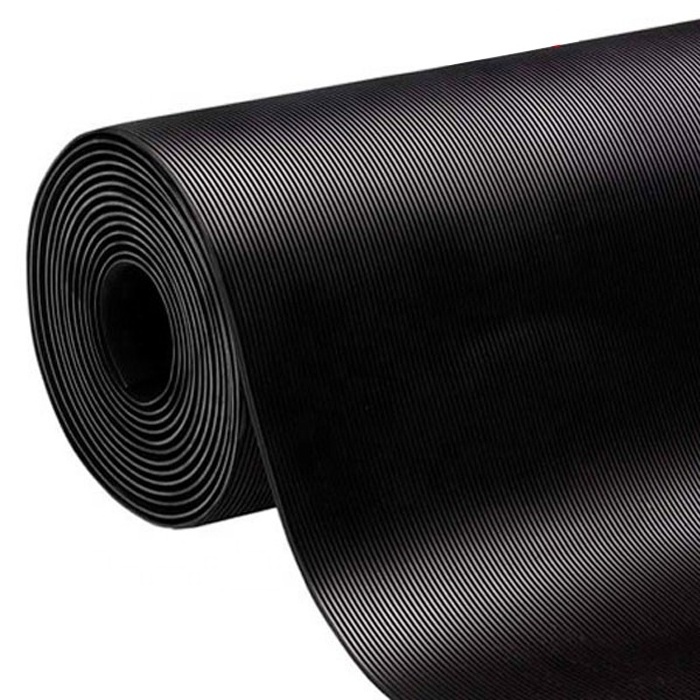

Fine Ribbed Rubber Sheet
usage:
Industrial cells and automotive, Shipping and packaging working cells Heavy-duty work places For dry work areas
Surface is fine ribbed, bottom is fabric pattern.
Key Features
* Shore Hardness: Shore A 45-85 .
* Temperature: -30°C up to +70°C.
* Reinforced with a single ply cloth, providing increased tensile strength over commercial rubber.
* Offers good abrasion resistance.
* General purpose rubber sheeting
* Shore Hardness: Shore A 45-85 .
* Temperature: -30°C up to +70°C.
* Reinforced with a single ply cloth, providing increased tensile strength over commercial rubber.
* Offers good abrasion resistance.
* General purpose rubber sheeting
Specification
* thickness: 3mm-6mm
* thickness: 3mm-6mm
* width: Max 2m
* length: any length, standard is 10-30m
* insertion is available such as 1ply/2ply/3ply/4ply
* length: any length, standard is 10-30m
* insertion is available such as 1ply/2ply/3ply/4ply
* surface:
Surface is fine ribbed, bottom is fabric pattern.
Technical datasheet
* Standard hardness:
Shore A 45-85
* Color: Red/black/green/white
* Color: Red/black/green/white
* Temperature: -20 to + 80 degree
* Tensile Strength: ≥3mpa
* Elongation: ≥260%
* Tensile Strength: ≥3mpa
* Elongation: ≥260%
* Density: 1.5/1.6/1.7/1.8 g/cm3
*
Gravity:1.45
insertion can be 1ply or 2ply ,3ply, 4ply
surface is fine ribbed, bottom is fabric pattern.
Specification
|
product name
|
Fine Ribbed Rubber Sheet
|
|
Color
|
Black,red, white , green etc
|
|
Material
|
SBR/NR/CR/NBR/EPDM
|
|
Surface
|
fine ribbed or fabric pattern
|
|
insertion
|
1ply, 2ply, 3ply,4ply etc with nylon or noton insertion
|
|
Length
|
any length, standard length is 10-30m
|
|
Width
|
Max 2m
|
|
Thickness
|
3mm to 6mm
|
|
MOQ
|
500kgs
|
|
density
|
1.5/1.6/1.7/1.8 g/cm3
|
|
Standard hardness
|
Shore A 45-85
|
|
Tensile Strength
|
≥3mpa
|
|
Elongation
|
≥260%
|
|
Temperature
|
-20 to + 80 degree
|
Quality inspection
after finish production, we will measure the thickness, width and length to make sure size is same as customer requested, and we will also inspect hardness, density, tensile strength etc.
Other pattern you may like
Wide Ribbed Rubber Sheet
American Rubber Sheet
Round Dot Rubber Sheet
Rice Rubber Sheet
Diamond Rubber Sheet
Checker Rubber Sheet
Pyramid Rubber Sheet
Turtle Back Rubber Sheet
All patterns
Packing & Delivery
Packaging Details
1. plastic film + PP woven bag
2. plastic film + PP woven bag+ wooden pallet
It also can be packed according to your requirements
Delivery Detail:
One 20 ft container within 20 days
1. plastic film + PP woven bag
2. plastic film + PP woven bag+ wooden pallet
It also can be packed according to your requirements
Delivery Detail:
One 20 ft container within 20 days
