Quick Details
-
Voltage:
-
220V 50Hz
-
Power:
-
1kW
-
Dimension(L*W*H):
-
2450*900*1700mm
-
Weight:
-
400 KG
-
Machinery Function:
-
Peeling Ends cutting Spliting Decoring Separation
-
Peeling thickness:
-
1.5-15mm adjustable
-
Height of fruit:
-
80-420mm
-
Diameter of fruit:
-
80-250mmm
-
Ends cutting thickness:
-
10-30mm adjustable
-
Decoring diameter:
-
16-30mm, can be customized
-
Split qty:
-
2-8pcs optional
Quick Details
-
Raw material:
-
Fruit, Vegetables
-
Brand Name:
-
ZOYO
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
220V 50Hz
-
Power:
-
1kW
-
Dimension(L*W*H):
-
2450*900*1700mm
-
Weight:
-
400 KG
-
Machinery Function:
-
Peeling Ends cutting Spliting Decoring Separation
-
Peeling thickness:
-
1.5-15mm adjustable
-
Height of fruit:
-
80-420mm
-
Diameter of fruit:
-
80-250mmm
-
Ends cutting thickness:
-
10-30mm adjustable
-
Decoring diameter:
-
16-30mm, can be customized
-
Split qty:
-
2-8pcs optional
Product Description

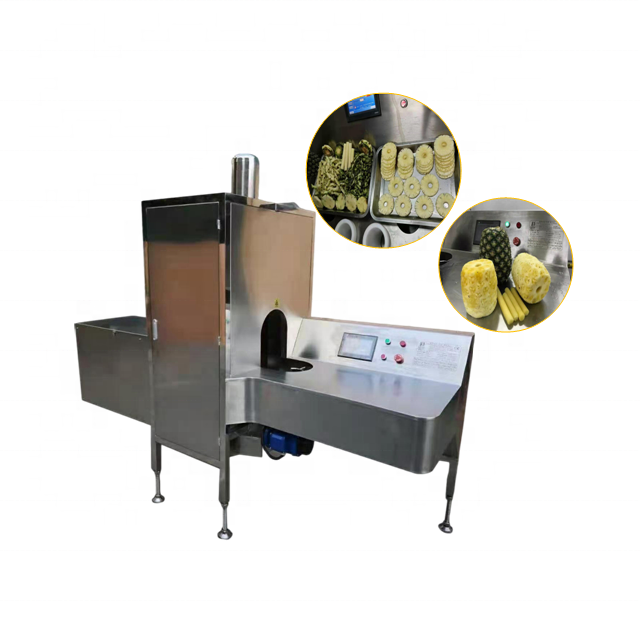

Intergrated Pineapple Peeling Coring Processing Machinery
Introduction
This machine is a self-adaptive multifunctional machine with optical and mechanical integration. One machine can complete the 4 actions of
peeling, cutting both ends, splitting/decoring, and separating
.
Through intelligent profiling, it can automatically adapt to the height and thickness of fruits and vegetables, and the peeling thickness can be adjusted. It is compatible with more than 20 kinds of fruits and vegetables such as pineapple, grapefruit, papaya, cantaloupe, and watermelon.
This machine is manufactured in accordance with EU standards, the main material is high-quality stainless steel, with PLC program control and remote control. PLC, touch screen, and key electronic components adopt Omron brand, Siemens brand, or other famous brands. During operation, tap the touch screen to set the parameters, put the fruit into the fruit holder, and the machine will automatically complete the fruit holding-delivery-peeling-cutting both ends-splitting/core removal- separation.
This machine is the key equipment for industrialized processing of pineapple/grapefruit/papaya/cantaloupe for pieces, cubes, slices, strips, dried, sauce, powder, preserved fruit, beverages, wine, cans, and fresh cuts, etc.
Details Images
Specification
|
Capacity
|
500pcs/h
|
|
Peeling thickness
|
1.5-15mm adjustable
|
|
Height of fruit
|
80-420mm
|
|
Diameter of fruit
|
80-250mmm
|
|
Power
|
1kW (220V 50Hz)
|
|
Ends cutting thickness
|
10-30mm adjustable
|
|
Decoring diameter
|
16-30mm, can be customized
|
|
Split qty
|
2-8pcs optional
|
|
Weight
|
400kg
|
|
Dimension
|
2450*900*1700mm
|
|
Packing size
|
2700*960*1850mm
|
