Dry Heating Cable ENERPIA DIY Mat Cable Underfloor Heating System Help to Drive Safely Excellent Heat Resistance

What is DIY Mat Cable?

The Mat Cable is floor heating system which is developed to make installation easy for a consumer. You can install warming floor by yourself with ENERPIA KIT
It does not require any special tools and it is quickly fixed to a clean subfloor using the attached adhesive tape strips. The easy installation makes it an ideal
"Do it yourself" or Trade kit without any requirements or experience needed for planning their layouts. Its uncomplicated concept is specifically designed for the professional users.

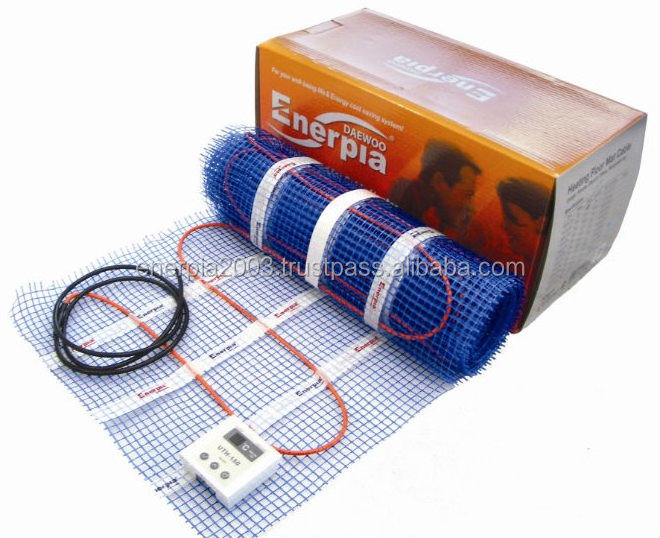

The electric heating cable is attached to a tough fiber glass mesh, rolled out before tiling and connected to a programmable thermostat. It is suitable for tile-adhesive, thin set or screened floor heating applications directly beneath the tile, stone, floating and timber floor finishes, while suitable sub-floors include concrete slabs, F/C sheet floors or existing tile.

Features of Cable on the Mat

It is a specialized Heating Cable that can be installed easily by a consumer after purchasing. Inner thickness of the heating cable being 5.5mm. it has a cutting edge floor heating system coated primarily by Ni-Cr resistant wire and silicon with temperature resistance of 270°C current wire inserted and then coated with PVC. It is used easily and can be installed at a humid place, for tile finishes material and for veranda. It also minimizes the height of Cold Lead and can be used easily with 1cm additional plastering high on the floor.

STRUCTURE OF DIY MAT CABLE

The Cable Mat floor heating system is construction and installation methodology does not require any special tools and is quickly stuck to a clean subfloor using the attached adhesive tape strips. The ease of installation also makes them an ideal "Do-it-Yourself" or Trade kit without requirements or experience for planning their layouts.
And uncomplicated concept specifically designed for the professional user: the electrical heating cable is attached to a tough fibreglass mesh, rolled out before tiling, and connected to a programmable thermostat.
It is suitable for in tile-adhesive, thinset or in-screed floor heating applications directly beneath tile, stone, floating and timber floor finishes. Suitable sub-floors include concrete slabs, suspended timber, F/C sheet floors or existing tiles.

Benefits of Underfloor heating Cable Ma t

1. Economical and environmentally friendly
Under floor heating provides heat where required, resulting in optimal heat utilization and minimal losses.
2. So simple to install
In addition to this wide range, mats could be designed to suit individual requirements of lengths and widths, heat loads and voltage requirements could be designed.
3. Flexible for Area
Cable Mat can be laid on any area, or any floor layout, as may be desired.
4. Thermostatically controlled
Close and uniform spacing of heating cables, associated with thermostat controls to select temperature requirements, provides higher comfort levels.

Specifications of DIY MAT CABLE  (DOUBLE LINE)

Construction cross section

Installation Procedure

1. Install DIY Mat Cable	2. Mat Cutting & Change of Direction	3. Performance Test
4. Cement Mortar	5. Install finishing materials	6. Install thermostat
