Quick Details
-
Brand Name:
-
SRNE
-
Model Number:
-
SR-DM160
-
Max PV Power:
-
260w
-
Max PV Voltage:
-
60v
-
Certificate:
-
CE/Rohs
-
Warranty:
-
3
-
Product name:
-
solar street light controllers
-
Certification:
-
CE/RoHS/ ISO9001
-
Output current accuracy:
-
±3% or ±30mA
-
Light control voltage:
-
5V~15V;2/24V
-
Working temperature:
-
-40℃ ~ +60℃
-
Weight:
-
390g/490g
-
MPPT tracking efficiency:
-
>99%
-
Voc of solar panel:
-
<60v
-
Voltage:
-
12V/24V Automatically
-
Color:
-
Black
Quick Details
-
Type:
-
MPPT
-
Application:
-
Lighting Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SRNE
-
Model Number:
-
SR-DM160
-
Max PV Power:
-
260w
-
Max PV Voltage:
-
60v
-
Certificate:
-
CE/Rohs
-
Warranty:
-
3
-
Product name:
-
solar street light controllers
-
Certification:
-
CE/RoHS/ ISO9001
-
Output current accuracy:
-
±3% or ±30mA
-
Light control voltage:
-
5V~15V;2/24V
-
Working temperature:
-
-40℃ ~ +60℃
-
Weight:
-
390g/490g
-
MPPT tracking efficiency:
-
>99%
-
Voc of solar panel:
-
<60v
-
Voltage:
-
12V/24V Automatically
-
Color:
-
Black

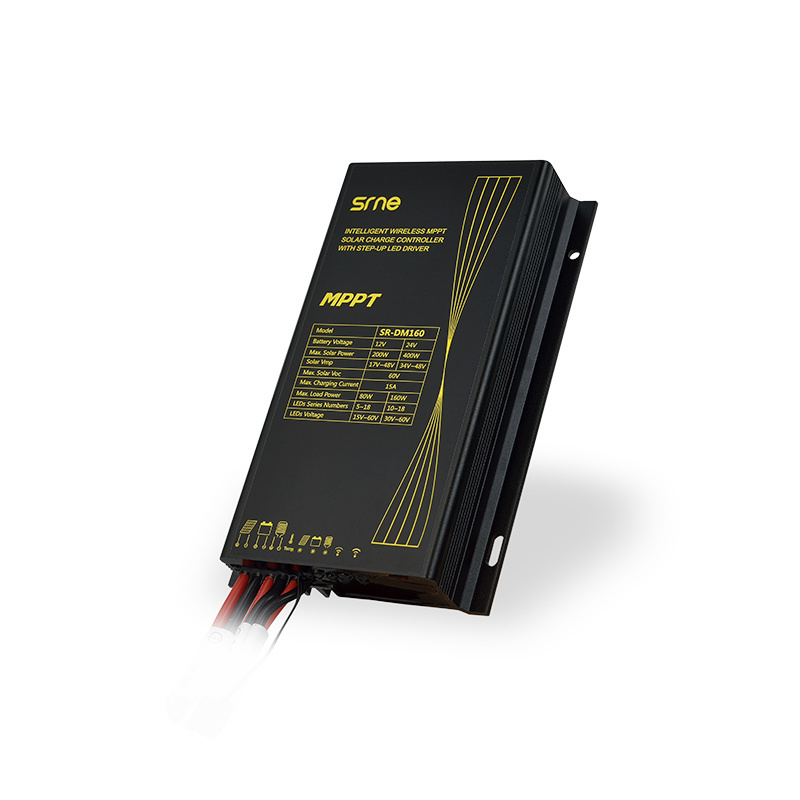

China manufacturer 15A 24V LED solar street light charge controller
Features of SR-DM160
1.Support both lead acid(Gel included) and lithium battery both for 12V and 24V system.
2.Adopts MPPT charging method, which supports the Voc of solar panel≤60V.
3.With step-up constant current source for output, which can drive 18 LEDs in series.
4.Multi-crest MPPT tech, adapts to the solar panel which is under shadow or partly damaged.
5.4 levels dimming design(including morning lighting).
6.IR remote control: for parameter setting, parameter reading and historical data checking.
7.Auto identify day/night.
8.Very low dormancy loss: 0.06W.
9.Protections: IP68, over charge/over discharge protection, reverse connection protection, reverse charging protection, over load/over current protection, short circuit/open circuit protection, over temperature protection, TVS lighting protection.
Parameter of SR-DM120/DM160
|
Parameter Name |
Value |
|||
|
Model |
DM120 |
DM160 | ||
|
Supported battery |
Lead acid battery(gel included) and lithium battery |
|||
|
Battery voltage |
12V |
24V |
12V |
24V |
|
Battery voltage range |
7V~32V |
|||
|
Charge current |
10A |
15A |
||
|
Limited charge current |
||||
|
Solar panel power |
130W |
260W |
200W | 400W |
|
Solar input voltage |
17V~60V |
34V~60V |
17V~60V | 34V~60V |
|
Circuit efficiency |
≤95% |
≤97% | ≤95% | ≤97% |
|
Voc of solar panel |
<60V | |||
| MPPT tracking efficiency | >99% | |||
| Limited Charge voltage | 15.5V;×2/24V | |||
| Over voltage protection | 17.0V;×2/24V | |||
| Over-discharge voltage | 7.5V~15.5V;×2/24V | |||
| Max load power | 60W |
120W |
80W | 160W |
| Output voltage range | 15V~60V |
30V~60V |
15V~60V | 30V~60V |
| Output current range |
70~4200 mA |
70~5600 mA |
||
| Output current accuracy | ±3% or ±30mA | |||
|
Light control voltage |
5V~15V;×2/24V |
|||
|
Working temperature |
-40℃ ~ +60℃ |
|||
|
Weight |
390g |
490g |
||
|
Product dimension |
114×88.3×24.5(mm) |
142×88.3×24.5(mm) | ||
|
Protection |
1.IP68 degree; 2. PV and Battery reverse connection; 3. internal overheat; 4.PV over voltage, short circuit; 5.charge,discharge over load; 6.Anti converse charge at night; 7.TVS protection to PV. 8. Load short circuit, open circuit ; 9. Battery open circuit |
|||
