Quick Details
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
120MESH
-
Brand Name:
-
shangshai
-
Delivery Time:
-
3~10days
-
size:
-
200mm 300mm diameter for lab test sieve
-
high:
-
5cm for lab test sieve
-
material:
-
304,316 for lab test sieve
-
open micron:
-
0.026~7mm
-
Use:
-
Laboratory Test Sieve/soil sieve/sand sieve
-
Hole shape:
-
Square and Round
-
Packing:
-
By carton
-
Sample:
-
Avaliable
Quick Details
-
Material:
-
STAINLESS STEEL WIRE
-
Type:
-
Weave Wire Mesh
-
Application:
-
Woven Wire Mesh
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
120MESH
-
Brand Name:
-
shangshai
-
Delivery Time:
-
3~10days
-
size:
-
200mm 300mm diameter for lab test sieve
-
high:
-
5cm for lab test sieve
-
material:
-
304,316 for lab test sieve
-
open micron:
-
0.026~7mm
-
Use:
-
Laboratory Test Sieve/soil sieve/sand sieve
-
Hole shape:
-
Square and Round
-
Packing:
-
By carton
-
Sample:
-
Avaliable

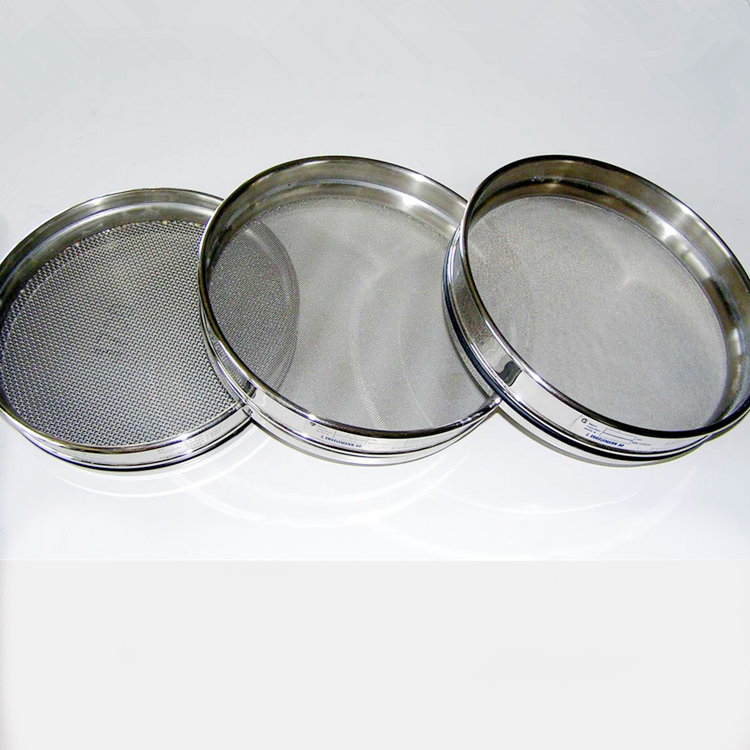

10 20 50 100 150 200 250 500 600 micron stainless steel flour mesh standard Laboratory Test Sieve/soil sieve/sand sieve
lab test sieve stainless steel standard test sieve, stainless steel standard sieve, standard test sieve
ISO9001 ISO14001
Application:
The standard testing sieve is applied to exact mesh analysis, test, measure, classification for powdery material in lab, hospital, pharmacy, foodstuff, metallurgy, construction etc departments.
Features:
The frame of testing sieve is made of SUS 304# stainless steel, the thickness is 0.6 mm, firm and durable, no magnetism.
Sieve and frame are soldered all around, then make a mosaic base, as the frame is two-double, so that the testing sieve is more firm and durable.
The testing sieve is processed by use special electrochemistry methods, and coat chrome, so the surface of testing sieve is exact, glazed and wearable,it will not get distorted after long time use .
Quality control:
In order to guarantee its high quality, our company equips full time test personnel and special test apparatus, such as microscope, projector, balance and dens meter etc. and it is produced accord with
The aperture size can be customized according to clients' requirements.
L aboratory Test Sieve Specifications:
|
Mesh |
Wire Dia(mm) |
Opening(mm) |
Material(AISI) |
|
2mesh*2mesh |
1.8 |
10.9 |
304 or 316 |
|
3mesh*3mesh |
1.5 |
6.96 |
304 or 316 |
|
4mesh*4mesh |
1 |
5.35 |
304 or 316 |
|
7mesh*7mesh |
1 |
2.63 |
304 or 316 |
|
10mesh*10mesh |
0.6 |
1.94 |
304 or 316 |
|
12mesh*12mesh |
0.5 |
1.62 |
304 or 316 |
|
16mesh*16mesh |
0.4 |
1.19 |
304 or 316 |
|
16mesh*16mesh |
0.35 |
1.24 |
304 or 316 |
|
18mesh*18mesh |
0.35 |
1.06 |
304 or 316 |
|
20mesh*20mesh |
0.4 |
0.87 |
304 or 316 |
|
24mesh*24mesh |
0.26 |
0.8 |
304 or 316 |
|
30mesh*30mesh |
0.3 |
0.55 |
304 or 316 |
|
35mesh*35mesh |
0.17 |
0.56 |
304 or 316 |
|
40mesh*40mesh |
0.23 |
0.4 |
304 or 316 |
|
50mesh*50mesh |
0.2 |
0.31 |
304 or 316 |
|
60mesh*60mesh |
0.15 |
0.27 |
304 or 316 |
|
70mesh*70mesh |
0.12 |
0.24 |
304 or 316 |
|
80mesh*80mesh |
0.13 |
0.19 |
304 or 316 |
|
90mesh*90mesh |
0.1 |
0.16 |
304 or 316 |
|
100mesh*100mesh |
0.09 |
0.15 |
304 or 316 |
|
120mesh*120mesh |
0.063 |
0.12 |
304 or 316 |
|
150mesh*150mesh |
0.053 |
0.11 |
304 or 316 |
|
180mesh*180mesh |
0.053 |
0.09 |
304 or 316 |
|
200mesh*200mesh |
0.04 |
0.07 |
304 or 316 |
|
250mesh*250mesh |
0.04 |
0.063 |
316 |
|
300mesh*300mesh |
0.04 |
0.044 |
316 |
|
325mesh*325mesh |
0.035 |
0.043 |
316L |
|
350mesh*350mesh |
0.03 |
0.042 |
316L |
|
400mesh*400mesh |
0.03 |
0.33 |
316L |
|
450mesh*450mesh |
0.028 |
0.028 |
316L |
|
500mesh*500mesh |
0.025 |
0.026 |
316L |
