Quick Details
-
Type:
-
/
-
Dimensions:
-
77*45.5*39 mm
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
/
-
Model Number:
-
CUAV X7+
-
Type:
-
/
-
Dimensions:
-
77*45.5*39 mm
Product Description
DESCRIPTION
Email: info@zelynuav.com
whatsapp/wechat: +86 17392281782
Key Features:
* Superior Processing Power: Equipped with the STM32H7 series processor, operating at a frequency of 480Mhz, and boasting 1024K RAM and 2048K FLASH.
* Advanced Sensor Integration: Features aerospace-grade ADI16470 accelerometer & gyroscope, RM3100 industrial-grade compass, and multiple other sensors ensuring accurate flight data.
* Built-in Shock Absorption: Features CUAV’s patented shock absorption system, ensuring stability even in turbulent conditions.
* Environmental Adaptability: Designed to function optimally in both high and low-temperature environments, thanks to its
high-precision sensor temperature compensation system.
* Dual Firmware Compatibility: Supports both PX4 (currently being adapted) and ArduPilot open-source platform firmware.
* Enhanced Stability: Uses a combination of Invensense, Bosch, ADI, and TE series sensors, paired with the RM3100 compass, ensuring unparalleled flight stability and anti-interference performance.
Technical Details:
* Dimensions: 77×45.5×39 mm
* Weight: Not specified
* Operating Temperature: Not specified
What Sets the X7+ Pro Apart? The X7+ Pro stands out by integrating the high-end ADI16470 chip, previously used in cutting-edge aerospace projects, into its IMU with triple redundancy. This ensures exceptional performance and reliability.
* Superior Processing Power: Equipped with the STM32H7 series processor, operating at a frequency of 480Mhz, and boasting 1024K RAM and 2048K FLASH.
* Advanced Sensor Integration: Features aerospace-grade ADI16470 accelerometer & gyroscope, RM3100 industrial-grade compass, and multiple other sensors ensuring accurate flight data.
* Built-in Shock Absorption: Features CUAV’s patented shock absorption system, ensuring stability even in turbulent conditions.
* Environmental Adaptability: Designed to function optimally in both high and low-temperature environments, thanks to its
high-precision sensor temperature compensation system.
* Dual Firmware Compatibility: Supports both PX4 (currently being adapted) and ArduPilot open-source platform firmware.
* Enhanced Stability: Uses a combination of Invensense, Bosch, ADI, and TE series sensors, paired with the RM3100 compass, ensuring unparalleled flight stability and anti-interference performance.
Technical Details:
* Dimensions: 77×45.5×39 mm
* Weight: Not specified
* Operating Temperature: Not specified
What Sets the X7+ Pro Apart? The X7+ Pro stands out by integrating the high-end ADI16470 chip, previously used in cutting-edge aerospace projects, into its IMU with triple redundancy. This ensures exceptional performance and reliability.
Package Contents:

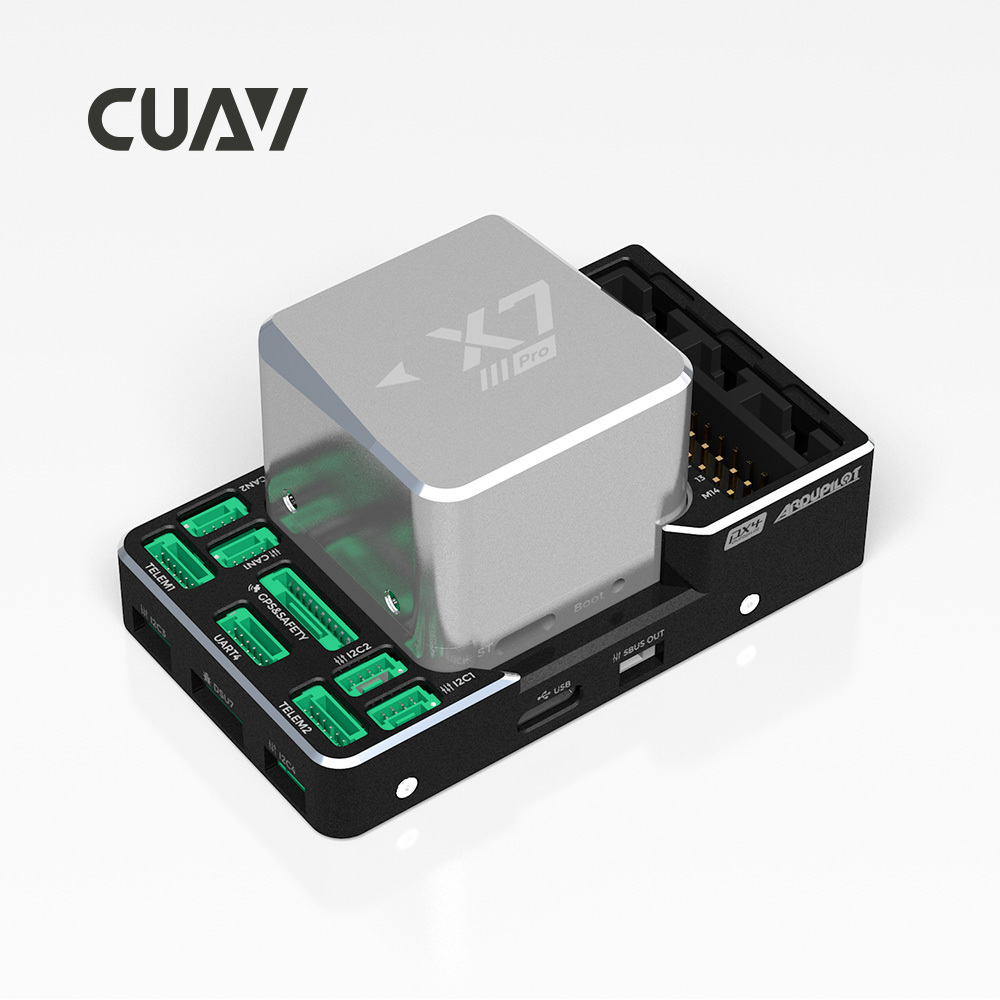

* CUAV X7+ Pro Advanced Flight Autopilot System
* Assorted cables and connectors for seamless integration.
* CUAV X7+ Pro Advanced Flight Autopilot System
* Assorted cables and connectors for seamless integration.
Specification
|
Features of CUAV X7 Series
|
|
|
|
|
||||
|
|
CUAV X7
|
CUAV X7 PLUS
|
CUAV X7 PRO
|
CUAV X7 PLUS PRO
|
||||
|
Processor
|
STM32H743
|
|
|
|
||||
|
Sensors
|
BMI088
|
ICM42688-P
|
ADIS16470
|
ADIS16470
|
||||
|
|
ICM20689
|
ICM20689
|
BMI088
|
ICM42688-P
|
||||
|
|
ICM20649
|
ICM20689
|
ICM20649
|
ICM20689
|
||||
|
|
MS5611*2 BAROs
|
|
|
|
||||
|
|
RM3100 Compass
|
|
|
|
||||
|
PWM outputs
|
14
|
14
|
14
|
14
|
||||
|
Bidi DShot outputs
|
6(M9~M14)
|
12(M1~M12 )
|
6(M9~M14)
|
12(M1~M12 )
|
||||
|
Servo voltage monitor
|
NO
|
YES(9.9V max)
|
NO
|
YES(9.9V max)
|
||||
|
Operating Voltage
|
4.3~5.4V （USB:4.75~5.25V)
|
|
|
|
||||
|
Power monitor
|
2(1 analog power monitor, 1 DroneCan power monitor)
|
|
|
|
||||
