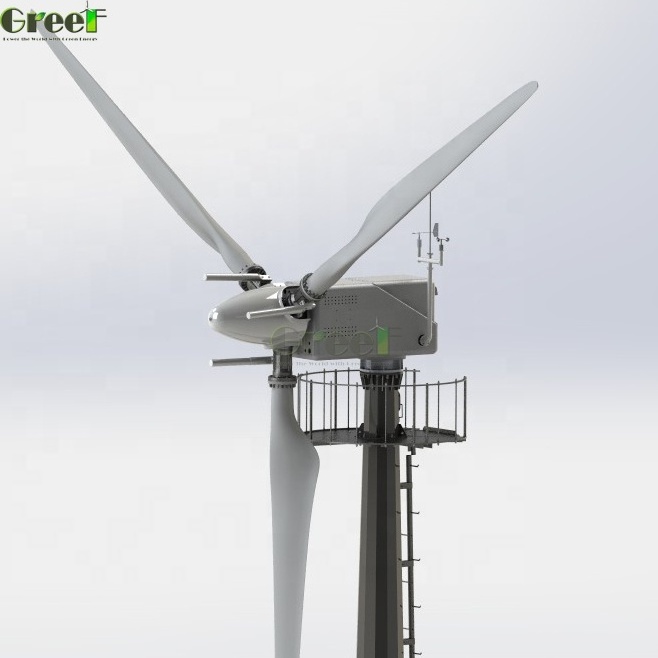

30kW horizontal wind turbine home , residential wind turbine kit, 30000 watt radial flux wind generator

30kW horizontal wind turbine home , residential wind turbine kit, 30000 watt radial flux wind generator

FOB Reference Price: Get Latest Price

≥1 Sets

US $36245

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: GH-30W

Certification:: CE

Max Power:: 35KW

Start Wind Speed:: 2.5m/s(6.72mph)

Rated Wind Speed:: 10m/s(22.4mph)

Working Wind Speed:: 4-25m/s(8.96-56 mph)

Safety Wind Speed:: 50m/s(112mph)

Blades Rotor Diameter:: 5.4M(17.7ft)

Blades Material &Quantity:: FRP /3PCS

Top Weight:: 2600kg

Tower Height:: 8m(26.24ft.) Free folding tower

Quick Details

Rated Power:: 30kW, 30KW

Place of Origin:: Shandong, China

Brand Name:: GreeF

Model Number:: GH-30W

Certification:: CE

Max Power:: 35KW

Start Wind Speed:: 2.5m/s(6.72mph)

Rated Wind Speed:: 10m/s(22.4mph)

Working Wind Speed:: 4-25m/s(8.96-56 mph)

Safety Wind Speed:: 50m/s(112mph)

Blades Rotor Diameter:: 5.4M(17.7ft)

Blades Material &Quantity:: FRP /3PCS

Top Weight:: 2600kg

Tower Height:: 8m(26.24ft.) Free folding tower

Why choose AH-30KW wind turbine?

Leading technology-intelligent control, strong system scalability

1. The world's best wind power control technology is combined with the self-developed variable pitch technology.

2. The hardware design uses international well-known brands, and the software uses redundant control strategies.

3. It can achieve good compatibility with various well-known brand converters and remote modules.

High security-continuous operation around the clock to achieve unattended operation

1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.

2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.

A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%

1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.

2. The working wind speed range is large (3-25m/s), and the effective running time is long.

Recommended for:

· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection

Technical specification

Model	AH-30KW
Rotor diameter (m)	13.1
Blade material & Qty.	FRP *3
Rated power (kW)	30
Rated wind speed (m/s)	11
Rated rotating speed (r/min)	95
Generator type	3-phase PMG
Working wind speed (m/s)	3-30
Start-up wind speed(m/s)	2.5
Cut-in wind speed(m/s)	3
Survival wind speed (m/s)	60
Rated voltage (VDC)	450
Speed regulation method	Auto yawing+pitch-controlled
Wind answering method	Up wind+yawing
Stop method	Auto brake
Gale protection	Smart control+unattended
weight (kg)	2800
Noise level (dB)	≤65
Tower height (m)	≥20
Tower type	Free stand tower
Working temperature	-20℃～+50℃

Products Description

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more.

(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;

(2) Below the rated wind speed, the wind turbine outputs efficiently;

(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.

Project case

Seawater Desalination Project in Dafeng City Project at Xiliguole League in Inner Mongolia

28 Farm On-grid Systems in Italy

More projects

Systems

Why Choose Us

We are global supplier which focus on Permanent Magnet generator, wind turbine ， wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
