Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
3kw
-
Dimension(L*W*H):
-
4300*900*1550
-
Weight:
-
900 KG
-
After-sales Service Provided:
-
Video technical support
-
Product name:
-
china suppliers automatic naan bread roti maker chapati making machine
-
Application:
-
Food Processing Machine
-
Feature:
-
High Efficiency
-
Advantage:
-
Easy Operation High Efficiency
-
Width of dough:
-
160-500mm
-
Raw material:
-
Wheat Flour
-
Package:
-
Wooden case
-
Material:
-
Stainless Steel
-
Certification:
-
CE ISO
Quick Details
-
Production Capacity:
-
17-200piece/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Taizy
-
Voltage:
-
220V/380V
-
Power:
-
3kw
-
Dimension(L*W*H):
-
4300*900*1550
-
Weight:
-
900 KG
-
After-sales Service Provided:
-
Video technical support
-
Product name:
-
china suppliers automatic naan bread roti maker chapati making machine
-
Application:
-
Food Processing Machine
-
Feature:
-
High Efficiency
-
Advantage:
-
Easy Operation High Efficiency
-
Width of dough:
-
160-500mm
-
Raw material:
-
Wheat Flour
-
Package:
-
Wooden case
-
Material:
-
Stainless Steel
-
Certification:
-
CE ISO

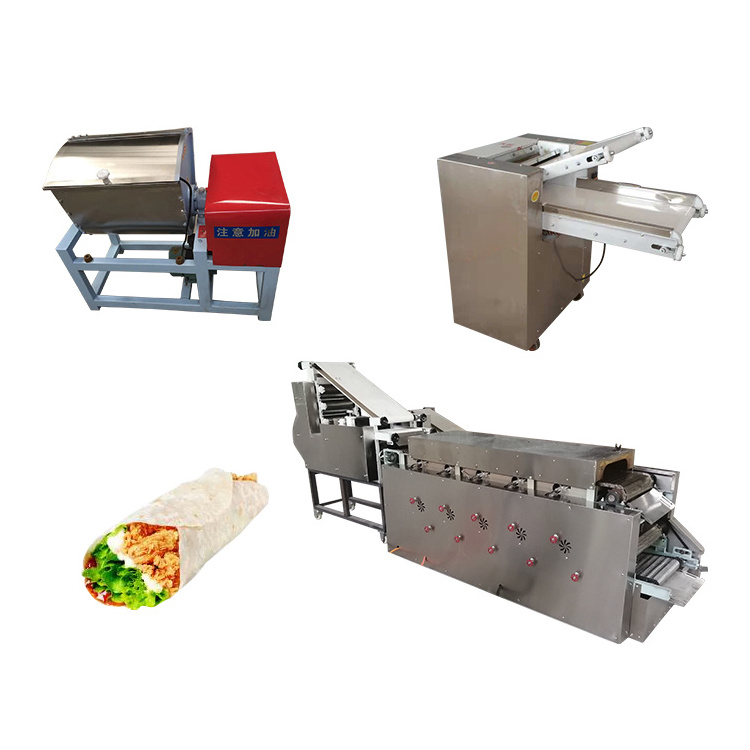

Roti Production Line
Introduction Information of Roti Production Line
Automatic roti production line the multifunctional equipment which can produce flat bread, pita bread, tortilla, arabic bread, pizza crust, samosa wrapper etc.The pitta bread making machine, compared with the manual operation has the characteristics of
High efficiency, low noise, save labor and time.We accept customized product according to customers’ requirements.Pita Bread Production Line includes dough mixer, dough sheeter, pita bread maker and pita oven.
Working Procedure of Roti Production Line
Dough Mixer
Operation Method:
1.Turn on the power supply, switch on, starting up to make the machine run normally;
2.Put the flour and other materials and water into the dough bucket to stir, after stirring to the requirement, pull out the plug, tilt the bucket down 90 degrees and pour out dough.
|
TZ25 |
TZ50 |
TZ75 |
|
|
Capacity |
250kg/h |
400kg/h |
450kg/h |
|
Motor Power |
2.2kw/380v |
3kw/380v |
4kw/380v |
|
Weight of Machine |
100kg |
150kg |
170kg |
|
Dimension |
850*650*900 |
1050*680*950 |
1130*720*1150 |
Dough Sheeter
Operation Method:
1.Check whether the fasteners are loose before use. Turn on the power, rotate 5-10 minutes according to the arrow on the belt guard.
2.Sprinkle the flour on the dough at the entrance. Adjust the upper and lower roll gaps to roll the dough between the two rolls.
3.The dough is rotated and repeated several times until the desired hardness of the dough is reached.The thickness of the dough can be adjusted.
4. After each use, the machine should be cleaned, the edible oil should be coated on the surface of the roller.
|
Model |
TZ350 |
TZ500 |
|
Width of dough roller |
350mm |
480mm |
|
Capacity |
350kg/h |
500kg/h |
|
Power |
3kw |
4kw |
|
Weight of Machine |
250kg |
300kg |
|
Dimension |
1330*615*1060 |
1350*755*1240 |
Pita Bread Maker
Put the dough wrapper into the hopper, roll it through roller, and convey it from the conveyor belt. The powder box sprinkles flour on the dough, and then formed by the mold roll. The scrap is transferred from the belt to the original hopper.
|
Model |
TZ160 |
TZ220 |
TZ330 |
TZM380 |
TZM500 |
|
Width of dough wrapper |
160mm |
220mm |
330mm |
380mm |
500mm |
|
Speed |
70-100piece/minutes |
140-200piece/minutes |
210-300piece/minutes |
1000piece/h |
17-200piece/h |
|
Motor Power |
2.2kw/220v |
3kw/220v |
3kw/220v |
3kw 220/380v |
3kw 220v/380v |
|
Weight of Machine |
220kg |
260kg |
330kg |
280kg |
900kg |
|
Dimension |
1200*560*1200 |
1200*620*1200 |
1200*730*1200 |
1700*780*1200 |
4300*900*1550 |
Pita Tunnel Oven
Conveyor the dough wrapper formed by mold to the oven, it is roasted in the tunnel uniformly. The oven can be customized to two layers, three layers to make sure two sides of dough wrapper will be oven well.
|
Model |
TZ-1 |
|
Power |
1.2kw |
|
Voltage |
220v/50HZ |
|
Weight |
560kg |
|
Dimension |
2750×930×1200mm |
We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.
