Quick Details
-
Brick size:
-
200*100*60 mm, 300*150*100 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
QISHENG
-
Voltage:
-
no power required
-
Dimension(L*W*H):
-
1500*530*1300mm
-
Marketing Type:
-
Hot Product 2021
-
Core Components:
-
Mold
-
Weight (KG):
-
260 kg, 260s
-
Product Name:
-
hand press interlocking compressed earth block machines
-
Color:
-
Orange,red,blue,green or customized
-
Raw material:
-
concrete, clay,soil earth
-
Brick type:
-
Interlocking Solid Bricks
-
Molding cycle:
-
40s
-
Forming number:
-
2pcs/mold,1pcs/mold
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
1920 pcs/8hours, 1280 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours
-
Brick size:
-
200*100*60 mm, 300*150*100 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
QISHENG
-
Voltage:
-
no power required
-
Dimension(L*W*H):
-
1500*530*1300mm
-
Marketing Type:
-
Hot Product 2021
-
Core Components:
-
Mold
-
Weight (KG):
-
260 kg, 260s
-
Product Name:
-
hand press interlocking compressed earth block machines
-
Color:
-
Orange,red,blue,green or customized
-
Raw material:
-
concrete, clay,soil earth
-
Brick type:
-
Interlocking Solid Bricks
-
Molding cycle:
-
40s
-
Forming number:
-
2pcs/mold,1pcs/mold

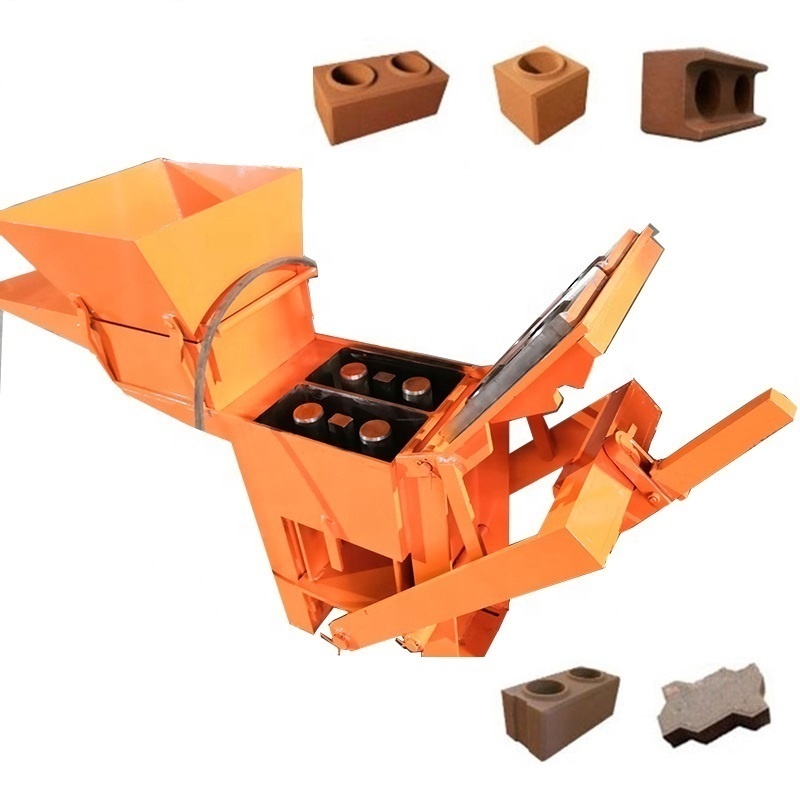

China soil clay brick machine hand press interlocking compressed earth block machines
Product Description
QMR2-40 clay brick machine is one new kind of small sized block forming machine, which is cheap & durable, easy to operate & no power. It is quick in product forming , high in product density and strong in pressing power. After remolding people can stand on the brick .With this machine, consumption of materials can be reduced. It is an ideal choice for customer.
|
SPECIFICATIONS FOR QMR2-40 AND QMR1-40 CLAY BLOCK MAKING MACHINE
|
|
|
||
|
Iterm
|
QMR2-40
|
QMR1-40
|
||
|
Overall Dimension
|
900×500×800 mm
|
600×400×800 mm
|
||
|
Cycle Time
|
30-40 Seconds
|
30-40 Seconds
|
||
|
ProductivIty
|
Generally for 2 pcs/mould
|
Generally for 1 pcs/mould
|
||
|
Overall Weight
|
260KG
|
200KG
|
||
|
Packing size
|
1CBM
|
0.8CBM
|
||
|
Packaging
|
Iron box
|
|
||
|
Forming number
|
2 Form/molding
|
1 Form/molding
|
||
|
Theory
|
Lever
|
|
||
|
Worker
|
1-2 workers
|
|
||
Features
1. QMR2-40 can make two bricks each mould in 40 s.
2. Completely manual operation, Cheap and durable.
3. QMR2-40 manual brick machine is no need electric power.
4. It is the best individual investment in Africa, low price with highest revenue.
Advantages of Manual block making machine
1). QMR1-40/QMR2-40 clay brick making machine is one new kind of small manual brick making machine, which is cheap and durable, easy to operate and no need power.
2). It is quick in product forming, high in product density and strong in pressing power. After remolding, people can stand on the brick .Consumption of materials can be reduced.
3). This machine uses a mixture of soil and cement to make stabilized bricks at a ratio of between 5 and 10% cement to soil, depending on the soil type available.
4).Bricks are interlocking so there is no need for mortar when building.
5).Easy Operation. Hand press concrete /cement brick making machine
Block Samples
The different blocks produced by QMR2-40 manual clay interlocking block making machine are widely used for different use ,you can choose blocks you need from the following picture,or send us your shape and size request,then we customize it for you directly.
Final Products
Final Applications:
QMR2-40/QMR1-40 Brick machine is a manual block machine without any power,can produce interlocking blocks,solid blocks ,full bricks,wall brick,etc
.
Other products
Besides the clay brick machine, we also have many concrete block machine models with difference capacity and price.
Big automatic machine model: QT12-15, QT10-15, QT8-15, QT6-15, QT5-15 block making machine
Middle size machine model: QT4-15, QT4-16 auto. block machine
QT4-20, QTF3-20 semi automatic brick making machine.
Small machine model: QMJ4-35 Brick machine,HY2-25 Brick Machine,QMY2-45,QT4-25 auto. block machine, QT4-26 semi-auto. brick machine,QT4-35, QT4-40 manual block making machine.
Feedback from clients:
Packing & Delivery
Port:Qingdao port or any port in China
Lead time:10-15 days after receiving the payment
Why Choose Us
♦Pre-sales:
1 Perfect 7*24hours inquiry and professional consulting service
2.Visit our factory anytime
♦Sale:
1. Update the production schedule in time
2. Quality supervision
3. Product acceptance
4. Shipping on time
♦After-sales:
1. Guarantee:1 year ,during this period we will offer free spare parts if they are broken.
2. Training how to install and use machine
3. Engineers available to service overseas
4. Skill support during the whole using life
