- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Aerial work
-
Rated Lifting Moment:
-
12.5Ton.m
-
Span:
-
3950/8700
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HAOY
-
Weight (KG):
-
2050 kg
-

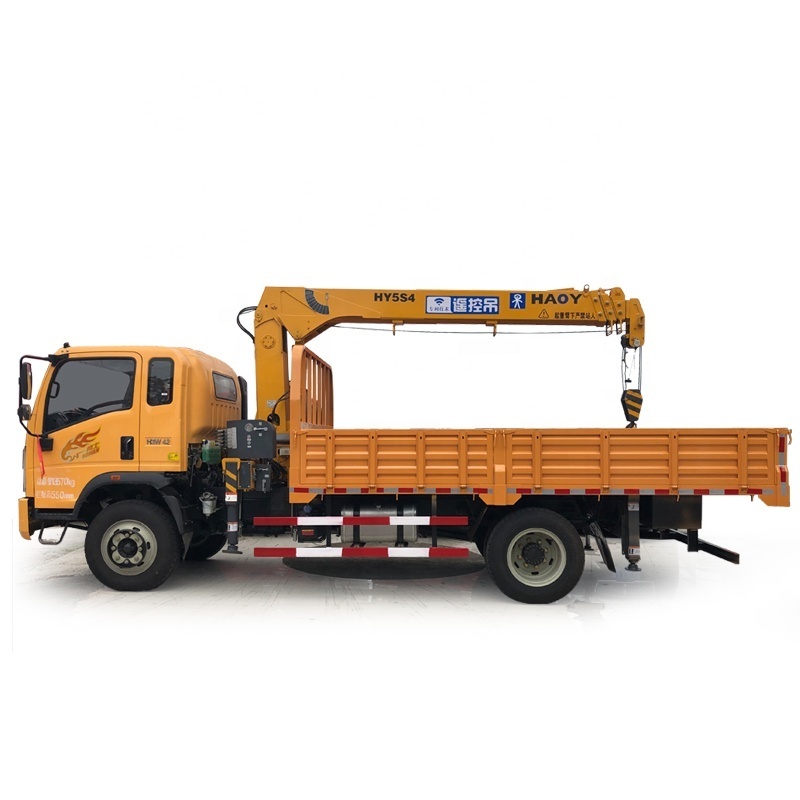

Product name:
-
Mobile Crane
-
Type:
-
Truck Mounted Crane Mobile Crane Truck
-
Crane type:
-
Truck Crane Mobile Crane Hydraulic Crane
Quick Details
-
Rated Loading Capacity:
-
5 ton
-
Max. Lifting Height:
-
10M
-
Engine Brand:
-
CHANGCHAI
-
Application:
-
Aerial work
-
Rated Lifting Moment:
-
12.5Ton.m
-
Span:
-
3950/8700
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HAOY
-
Weight (KG):
-
2050 kg
-
Product name:
-
Mobile Crane
-
Type:
-
Truck Mounted Crane Mobile Crane Truck
-
Crane type:
-
Truck Crane Mobile Crane Hydraulic Crane
|
Item
|
Unit
|
HY5S4
|
|
Max.Lifting Moment
|
Ton.M
|
12.5
|
|
Max.Lifting Capacity
|
Kg
|
5000
|
|
Max.Working Radius
|
m
|
11.2
|
|
Max.Working High
|
m
|
12.8
|
|
Slewing Angle
|
°
|
360°Full Slewing
|
|
Installation Space
|
mm
|
900
|
|
Qutrigger Span
|
mm
|
5120
|
|
Crane Self Weight
|
Kg
|
2100
|
|
Aerial Working High
|
m
|
15.5
|
|
Rated system pressure/fow
|
MPa/L/min
|
20/40
|
Overwinding Protector
The automatic limiter is sensitive
and reliable, protecting the
wire rope and hook
and reliable, protecting the
wire rope and hook
Copper Based Bushing
Oil-free copper-based casing.Good wear resistance, not easy to deform and crack, long service life
Hydraulic Rotary Joint
Low Torque High Speed Long Life Hydraulic Pipeline Can Rotate
360° Infinitely
Cable Agency
42CrMo alloy structural steel,galvanized to prevent rust, high strength and corrosion resistance
Hydraulic Cylinder
Adopt Combined Sealing, Resistant To High Temperature, Low Temperature, Moisture and Corrosion
Remote Control
Wireless remote control
operation,strong anti-interference
ability distance up to 100 meters
High Quality Balancing Valve
Original Imported
Balance Pressure, Adjust Flow, Good Sealing,
Reliable and Durable
Three Point Bridge Bracket
The three-point bridge bracket protectsthe truck girder from even stress and will not
deformation.
Swing Drive
Simple Dtructure, Small Size, Strong Sarrying Sapacity, Sigh Srecision and Reduced Failure Rate
1) How many years of your factory?
We have 13 years production and nearly 10 years experience, we exported to more than 50 countries & regions. And we are a manufacturer specialized in truck crane,pickup crane,aerial platform truck,marine crane.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.Alibaba trade assurance,credit card,western union.
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.70% balance payment before shipping.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.We will mail the accessories to you for free if have
problems within one year.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.We provide logo,package,customized,and also can customized the product according to your requirements.
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
