Quick Details
-
Application:
-
Egg rolls
-
Certification:
-
BV
Quick Details
-
Place of Origin:
-
Shanghai, China
-
After-sales Service Provided:
-
Field installation, commissioning and training, Engineers available to service machinery overseas
-
Material:
-
Stainless steel
-
Application:
-
Egg rolls
-
Certification:
-
BV

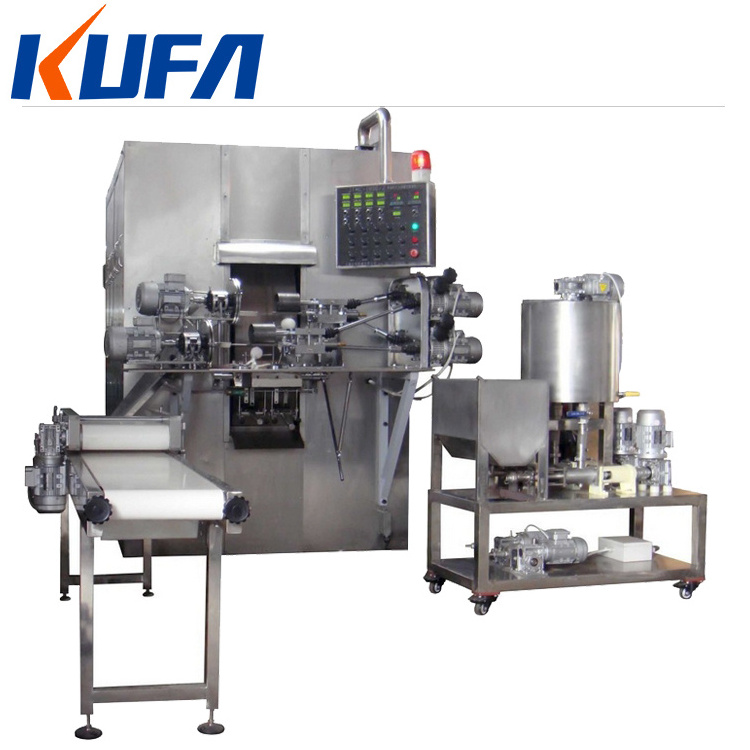

The newest wafer stick line/egg roll machine
Machine Introduction:
This machine is cooperated with one slurry mixer, one baking mainframe, two feeders, two fillers and one cooling conveyor. firstly mixing material evenly, then translating to the baking mainframe ,after baking, using a spatula wiping additional softer material away, making them circled on the surface of rollers (here are double-stage core rollers for you), then cutting the material in a target length, translating to the cooling conveyor and collecting them by a notch . The baking mainframe that using gas heating is full-automatically integrated with the auto- ignition, auto-alarm then auto-(power cut off), auto-controlment of temper,all these make the best effective use of power and energy. This whole egg roll production line is managed by PLC Programming system, for the baking mainframe, it is controlled by frequency converter, suitable adjustment of flour material’s thickness is available . users can change the egg roll’s diameter by change the core rollers, also can change the core rollers’ speed by frequency converter, for the egg roll’ length , it is cut by Optical Sensor system. This egg roll can center-fill whole cream or other core material, also can just center-fill only a part of core material. in the good faith, Free recipe is available.
Egg Roll Production Line:
Dough Mixer--Material Feeder
----Baking Mainframe--Coloring--Roller Cutting--Colling--Packing--Conveyor
Ball Miller--Center-Filler
Technical Parameters:
| Type | KFER Gas Heating | KFER Electric Heating |
| Power | 8kw | 35kw |
| Dimension | 3400*1700*2250mm | 3400*1700*2250mm |
| Gas Consumption | Liquefied Petroleum Gas 4.5kg/h | |
| Capacity |
No Center-Filling 30kg/h, Center-Filling 60kg/h
|
No Center-Filling 30kg/h, Center-Filling 60kg/h
|
| Diameter | Φ1800mm | Φ1800mm |
| Weight | 4T | 4T |
Available Advice:
1.Users can choose the baking mainframe(gas/electric heating) based on the local energy situation.
2. This equipment set should be combined with the whole automatic egg roll production line.
