Quick Details
-
Dimension:
-
16.5(L)* 6.5(W) * 6.5(H)M (can be customized)
-
Inspection throughput:
-
24trucks/hour
-
Penetration:
-
more than 300mm steel
-
Wire Resolution:
-
Dia 1.0mm copper wire
-
Mix Dose to passengers:
-
<0.2μsv/ scan
-
Dual energy accelerator:
-
300kv
-
Operation temperature/Humidity:
-
-15℃- 55℃/ 5℃- 95℃ (non- condensing)
-
Certificate:
-
CE RoHS FCC
-
warranty:
-
6 years (on-side service)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HZ
-
Tunnel size:
-
3(L) * 3(H)m(can be customized)
-
Dimension:
-
16.5(L)* 6.5(W) * 6.5(H)M (can be customized)
-
Inspection throughput:
-
24trucks/hour
-
Penetration:
-
more than 300mm steel
-
Wire Resolution:
-
Dia 1.0mm copper wire
-
Mix Dose to passengers:
-
<0.2μsv/ scan
-
Dual energy accelerator:
-
300kv
-
Operation temperature/Humidity:
-
-15℃- 55℃/ 5℃- 95℃ (non- condensing)
-
Certificate:
-
CE RoHS FCC
-
warranty:
-
6 years (on-side service)

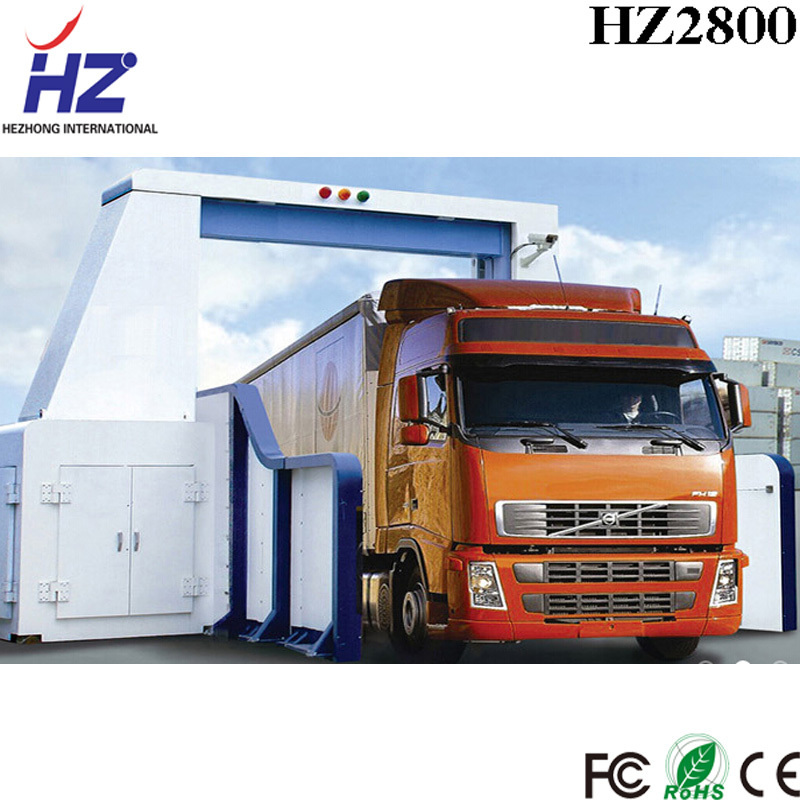

High penetration truck container x-ray scanner for seaport HZ2800
HZ2800 uses advanced high-energy, low-radiation X-ray scanning technology, can be quickly based on image determination,Whether the vehicle is equipped with dangerous goods and contraband, such as weapons, explosives, drugs, smuggled goods and so on. The system uses rails,Road conveyor structure design, check when the driver and passengers get off by rail transport vehicles to scan, real-time imaging, suitable
Used to carry out rapid and thorough inspection of small and medium cargo carriers and to maximize the safety of personnel.
HZ2800 can be installed in the parking lot entrance, road traffic checkpoint, customs, border checkpoint, important
Government vehicles import and export, large-scale activities venues, important base of the vehicle entrance, the vehicle safety
Full inspection. HZ2800 fully in line with domestic and international radiation safety requirements, without additional radiation protection construction,
Can protect the operator, the driver and the onlookers security.The system can be based on customer requirements and installation site existing conditions, flexible construction, to achieve a comprehensive multi-angle vehicle safety checks
(1).High security protection
Track stretch design, passengers and drivers can be achieved to get off, automatic transmission vehicles to scan, to maximize the protection of radiation safety personnel.
(2).High pass rate, can achieve 100% inspection.
(3).Strong penetration, high image quality. scanning
(4).The image is not deformed.
(5).Large scanning channel, suitable for inspection of various small and medium-sized passenger vehicles. Powerful image processing.
Image checkpoint provides zoom, zoom, pseudo-color transform, edge enhancement, contrast adjustment, multi-image comparison, image format conversion, long image stitching and other image processing
Function, so that the operator can quickly and easily identify the various types of prohibited items in the car, and make signs on the image mark;
(6).Friendly interface
(7).Excellent integration capabilities and process customization capabilities, integrated license plate recognition and scoot inspection system
|
|
Equipment size |
16.5(L) * 6.5(W) * 5.5(H) M |
|
|
|
Installation area ideally |
16 . 5 ( L )* 6.5 ( W ) * 6 . 5 ( H ) M |
|
|
|
|
|
|
|
|
General Specifications |
|
|
|
|
|
|
|
|
|
Tunnel size |
3(L) * 3(H)m |
|
|
|
Scanning Speed |
5-10km/h |
|
|
|
Typical throughput |
150pcs vehicles/hour |
|
|
|
Max Vehicle length |
20m and extendable |
|
|
|
Penetration |
Typical 65mm steel
,
application 40mm steel,can customize more than 300mm
|
|
|
|
Wire Resolution |
Dia 1.0mm copper wire |
|
|
|
Mix Dose to passengers |
<0.2 μ sv / scan |
|
|
|
Dose rate outside |
Public area<0.5 μ sv compliant with IAEA standard |
|
|
|
Power Consumption |
Max. 3KVA |
|
|
|
Operator ’s workstation |
PC-based workstation with the 24" LCD diaplay |
|
|
|
|
|
|
|
|
X-ray Generator(single) |
|
|
|
|
|
|
|
|
|
Dual energy accelerator |
300kv |
|
|
|
X-Ray direction |
From top to bottom |
|
|
|
|
|
|
|
|
Operating Environment |
|
|
|
|
|
|
|
|
|
Operation temperature/Humidity |
-15 ℃- 55 ℃/ 5 ℃- 95 ℃ ( non - condensing ) |
|
|
|
Storage temperature/Humidity |
-40 ℃- 70 ℃/ 5 ℃- 95 ℃ ( non - condensing ) |
|
|
|
Operation Power |
220VAC(±10 % 50±3Hz (Optional:100VAC,110VAC,120VAC,200VAC) |
|
1.X ray source
2.X ray source control and driving device
3.X ray detector array box
4.Electronic control unit
5.The IPC( industrial personal computer)
6.The display device
7.The intermediate circuit breaker
8.The key switch
9.The cooling fan
10.The conveyor belt
11.The light barrier
12.The system power supply device
We support OEM and ODM service, can print your logo according to your demand.
All products purchased in our company are guaranteed to keep in good repair for 3 years.
If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life.
After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
If you are caught in some problems when using our products, welcome to contact us at any time.
