Quick Details
-
Dimension(L*W*H):
-
600-900-650 mm
-
Weight:
-
40kg
-
Working Pressure:
-
250bar
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ROYAL MACHINERY
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
600-900-650 mm
-
Weight:
-
40kg
-
Working Pressure:
-
250bar
-
Certification:
-
CE

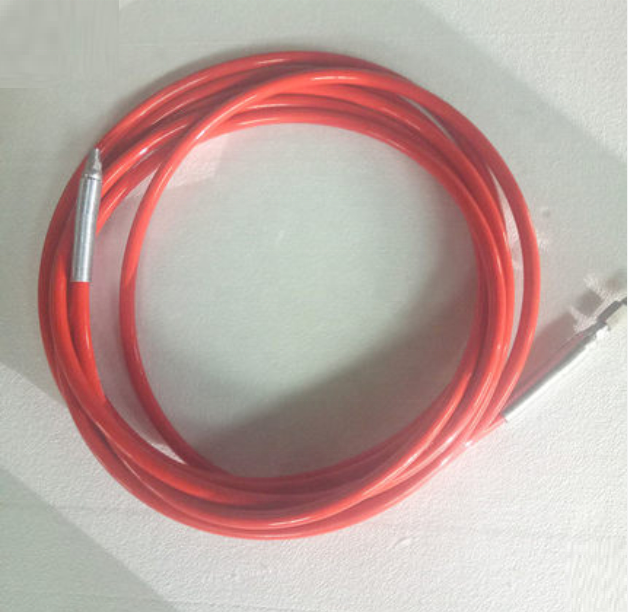

1set 4meters hose and filling nozzle
same as TK4 filling nozzle
cng natural gas compressor home use cng compressor standard cng compressor station for commercial use
Refuel your CNG vehicle at home
- Benefits of using CNG
-
Save running cost 30-50%
-
Reduce on produced emissions
-
Refill vehicle at home
-
Application to:
-
C ar, van, commercial vehicle truck, fork-lift etc
-
Small fleets of taxi service, driving school etc
-
Small filling gas station
-
CNG compressor F or home gas refuel MC3
Simple installation and operation , low service cost .anti-explosive designed of this compressor make it running in safety. Separate electric controller equipped . It is an ideal unit for filling your vehicle at home, for outdoor and indoor use, single phase electric needed only.
|
Code |
MC3 |
|
Flow rate |
3.5 Nm3/h 2 cfm |
|
Filling time(60L CNG tank) |
3.5 hour -- (200bar 3000psi) 4 hour --(250bar 3600psi) |
|
Working pressure |
200bar /3000psi or 250bar /3600psi |
|
Inlet pressure |
Less than 0.3bar 5psi |
|
Motor power |
EX 2.2kw/3.0hp 220v 50/60hz, single ph |
|
Oil separator / oil filter |
1/1 |
|
Safety valve/ Alarm sensor |
1 in final/ option |
|
Time meter |
1 |
|
Starter |
manual |
|
Switch |
auto stop |
|
Emergency stop |
manual |
|
Condensate / gas drain |
manual |
|
Filling hose connect |
1 |
|
Dimensions (H-W-D) |
600-900-650 mm |
|
Weight |
125 kg |
|
Noise level |
50 db(A) |
CNG compressor F or home gas refuel MC 5
Simple installation and operation, low service cost .anti-explosive designed of this compressor make it running in safety. Separate electric controller equipped. It is an ideal unit for filling your vehicle at home, for outdoor and indoor use, three phase electric needed
|
Code |
MC5 |
|
Flow rate |
5 Nm3/h 3 cfm |
|
Filling time(60L CNG tank) |
2.5 hour --(200bar 3000psi) 3.0 hour --(250bar 3600psi) |
|
Working pressure |
200bar /3000psi or 250bar /3600psi |
|
Motor power |
Ex2.2kw/3hp 50hz single phase for 200bar only |
|
|
EX 3.0kw/4.0hp 50/60hz, three phase |
|
Inlet pressure |
Less than 0.3bar 5psi |
|
Oil separator /oil filter |
1/1 |
|
Safety valve/ Alarm sensor |
1 in final/ option |
|
Time meter |
1 |
|
Starter |
manual |
|
Switch |
auto stop |
|
Emergency stop |
manual |
|
Condensate/gas drain |
manual |
|
Filling hose connect |
1 |
|
Dimensions (H-W-D) |
600-900-650 mm |
|
Weight |
130 kg |
|
Noise level |
50 db(A) |
| CNG Compressor Model No. | Air flow (Nm3/h) | Inlet pressure (Mpa) | Work pressure (Mpa) | Type/Grade | Lubrication | Cooling type | Motor power(Kw) | Size(L*M*H) mm | Weight (kg) |
| SF-2/250 | 4 | Micro positive pressure | 25 | S/4 | Oil-injection | Air | 3 | 900*600*600 | 135 |
| SF-3/250 | 5 | Micro positive pressure | 25 | S/4 | Oil-injection | Air | 4 | 900*600*600 | 135 |
| SF-3/251 | 10 | Micro positive pressure | 25 | S/4 | Oil-injection | Air | 4 | 1000*750*700 | 175 |
| SF-3/252 | 15 | Micro positive pressure | 25 | S/4 | Oil-injection | Air | 5.5 | 1000*750*700 | 185 |
| SF-3/253 | 20 | Micro positive pressure | 25 | S/4 | Oil-injection | Air | 7.5 | 1500*1000*1200 | 550 |
| SF-3/254 | 30 | Micro positive pressure | 25 | S/4 | Oil-injection | Air | 11 | 1500*1000*1200 | 580 |
| SF-3/255 | 40 | Micro positive pressure | 25 | S/4 | Oil-injection | Air | 15 | 1500*1000*1200 | 600 |
