Quick Details
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOBILLER
-
Model Number:
-
Master plus 90
-
Function:
-
Heating + Hot Water+cooling
-
Refrigerant:
-
R290
-
Heat exchanger:
-
SWEP Plate Heat Exchanger
-
Compressor:
-
MitsubishI* Inverter Twin Rotary Compressor
-
Heating capacity:
-
2-10KW
-
Voltage:
-
220~240/50
-
Controller:
-
WIFI Control
-
Water pump:
-
Built *WiIo* Water Circulation Pump
-
OEM Service:
-
Accept
-
Noise:
-
55db(A) Max
Quick Details
-
Warranty:
-
2 years
-
Application:
-
Outdoor, Hotel, Garage, Household
-
Power Source:
-
Electric
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BOBILLER
-
Model Number:
-
Master plus 90
-
Function:
-
Heating + Hot Water+cooling
-
Refrigerant:
-
R290
-
Heat exchanger:
-
SWEP Plate Heat Exchanger
-
Compressor:
-
MitsubishI* Inverter Twin Rotary Compressor
-
Heating capacity:
-
2-10KW
-
Voltage:
-
220~240/50
-
Controller:
-
WIFI Control
-
Water pump:
-
Built *WiIo* Water Circulation Pump
-
OEM Service:
-
Accept
-
Noise:
-
55db(A) Max

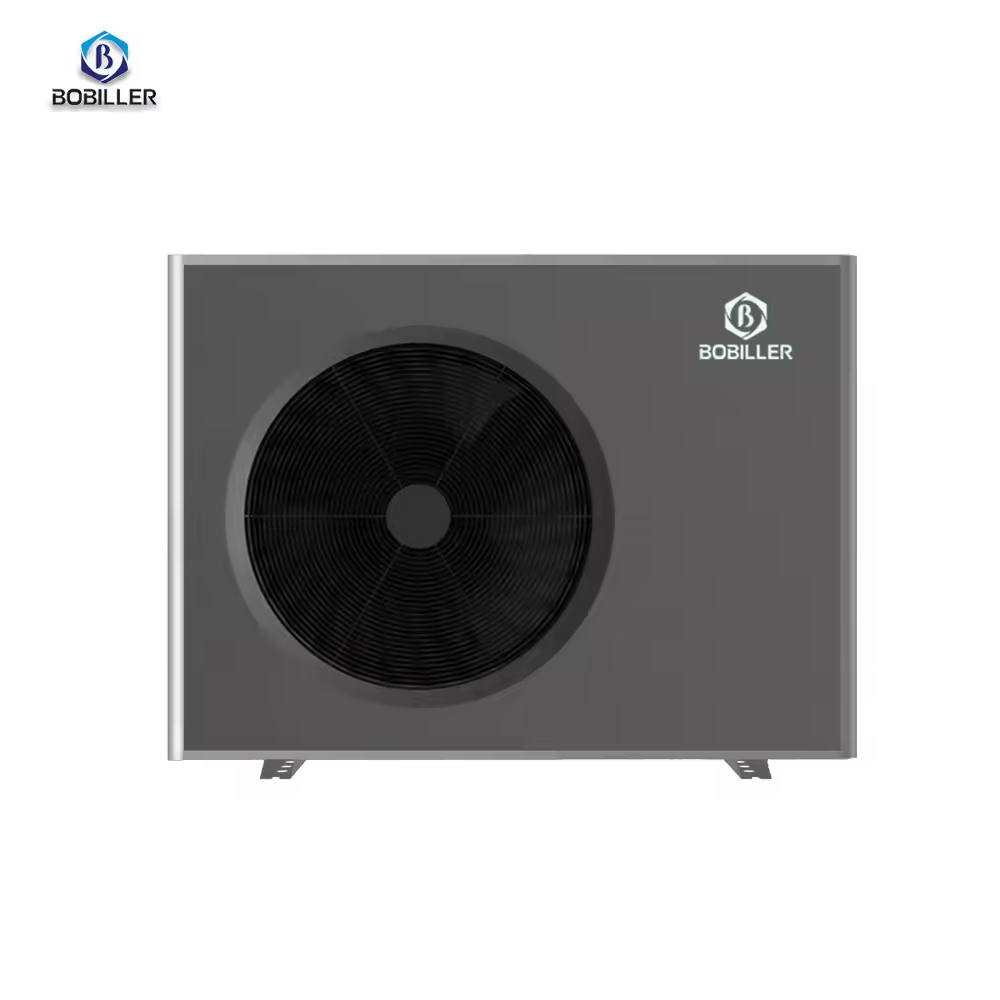

Bobiller 2024 NEW 8KW 10KW 18KW 22KW 30KW R290 Refrigerant Full DC Inverter Housing Air to Water Heat Pump with WI-FI Control
BOBILLER Air Source DC inverter ERP A+++ Heat Pump for Heaing Cooling,DHW Heat Pump for House Heating,Cooling and DHW
1.Adopting 290 refrigerant and circulating heating method,is able to keep its energy efficiency high.
2.ASHP Heating Capacity: DC Inverter 10kw13KW heat pump.
3.Best Selling Market: Global, especially in North & East Europe, North America,ect.
4.Ambient Temp of Using: Minus -25℃~46℃
5.Max water temperature: 60 degrees
6.Certification: ISO9001, CE, CB.ERP A+++,ect.
7.Use *Mitsubishi* Inverter Compressor for DC Inverter Air Source Heat Pump
8.Wilo water pump,AOL expansion tank inside.SWEP/Alfa Laval heat exchanger,3KW backup heater
New R290 inverter heat pump water heater Europe latest standard energy saving heat pump heating 13KW 15KW price
P
roduct Features
5 inch privately developed & designed colorful touch screen display
Excellent performance at low ambient temperature(100% @ -7°C)
ultra-high efficiency ns close to 190%,A+++,per EN 14825
very low sound level(32dB(A) at 5m in low noise mode)
"Screws free" apperance
Screed drying support
SG-Ready support
BOBILLER R290 ERP A+++
10kw13KW
DC Inverter Heat Pump
* ASHP Heating Capacity: DC Inverter
7kw 8KW
.
* Best Selling Market: Global.
* Ambient Temp of Using: -25~45°C
* Max water temperature: 75℃
* Certification: ISO9001, ISO14001,CE, ERP A+++
* Use Inverter Twin Rotary Compressor for DC Inverter Air Source Heat Pump
|
Model：
|
|
|
Master plus 90
|
Master plus 120
|
||
|
Heating Capacity Range
|
|
kW
|
2-10
|
3-13
|
||
|
Heating (A7/6℃,W30/35℃)
|
Heating Capacity
|
kW
|
9.2
|
12.1
|
||
|
|
Power Input
|
kW
|
2.02
|
2.67
|
||
|
|
Current
|
A
|
8.83
|
11.43
|
||
|
|
COP
|
W/W
|
4.55
|
4.53
|
||
|
Heating (A7/6℃,W40/45℃)
|
Heating Capacity
|
kW
|
9.08
|
12.03
|
||
|
|
Power Input
|
kW
|
2.51
|
3.35
|
||
|
|
COP
|
W/W
|
3.62
|
3.59
|
||
|
Heating (A7/6℃,W47/55℃)
|
Heating Capacity
|
kW
|
9.10
|
12.01
|
||
|
|
Power Input
|
kW
|
3.06
|
4.15
|
||
|
|
COP
|
W/W
|
2.97
|
2.89
|
||
|
Cooling (A35/24℃,W23/18℃)
|
Cooling Capacity
|
kW
|
9.02
|
11.30
|
||
|
|
Power Input
|
kW
|
2.33
|
2.95
|
||
|
|
EER
|
W/W
|
3.87
|
3.83
|
||
|
Cooling (A35/24℃,W12/7℃)
|
Cooling Capacity
|
kW
|
8.60
|
10.60
|
||
|
|
Power Input
|
kW
|
2.92
|
3.58
|
||
|
|
EER
|
W/W
|
2.95
|
2.96
|
||
|
Rated water flow
|
|
m3/h
|
1.6
|
2.1
|
||
|
Rated voltage /Frequency
|
|
V/Hz
|
220~240/50
|
220~240/50
|
||
|
Maximum input power
|
|
kW
|
3.50
|
4.70
|
||
|
Maximum input current
|
|
A
|
15.0
|
20.0
|
||
|
High pressure value cut-off pressure
|
|
MPa
|
3.1
|
3.1
|
||
|
Low pressure valve cut-off pressure
|
|
MPa
|
0.02
|
0.02
|
||
|
Brand/Type of Compressor
|
|
/
|
GMCC/Rotary
|
GMCC/Rotary
|
||
|
Brand of EEV
|
|
|
Danfoss or Sanhua
|
Danfoss or Sanhua
|
||
|
Brand of 4-way valve
|
|
|
Sanhua
|
Sanhua
|
||
|
Brand of Pressure sensor
|
|
|
Sanhua or Match-Well
|
Sanhua or Match-Well
|
||
|
Refrigerant
|
|
/
|
R290
|
R290
|
||
|
Air flow
|
|
m3/h
|
4000
|
4500
|
||
|
Brand of Water pump
|
|
|
WILO or SHIMGE
|
WILO or SHIMGE
|
||
|
Waterproof grade
|
|
/
|
IPX4
|
IPX4
|
||
|
Noise pressure ( at 1m/5m)
|
|
dB(A)
|
53/39
|
54/40
|
||
|
Max water outlet temperature
|
|
°C
|
70
|
70
|
||
|
Diameter of water connection
|
|
/
|
DN 25 (G1")
|
DN 25 (G1")
|
||
|
Internal pressure drop at rating water flow
|
|
kPa
|
40
|
50
|
||
|
Min/Max outdoor air (heating mode )
|
|
°C
|
-25/45
|
-25/45
|
||
|
Min/Max outdoor air (cooling mode )
|
|
°C
|
15/45
|
15/45
|
||
|
Net Dimensions ( L/W/H )
|
|
mm
|
1106/445/823
|
1106/445/823
|
||
|
Package Dimensions ( L/W/H )
|
|
mm
|
1150/455/913
|
1150/455/913
|
||
|
Net Weight
|
|
kg
|
90
|
108
|
||
|
Gross Weight
|
|
kg
|
100
|
118
|
||
|
Loading quantity 20GP/40GP,40HQ
|
|
pcs
|
48/104/104
|
48/104/104
|
||
Advantages of 10kw 13KW DC Inverter Heat Pump
1.
GMCC/Rotary
dedicated compressor is stable running even the temperature is super low -25 degrees.High effciency ,high reliability ,stable operation.
2.Automatic System,which ensure constant shower hot water
3.Short heating time:hot water can be supplied in a short time within an hour
