2
Power supply
:
Pin1:24V POWER+(RED); Pin2:24V POWER-(BLACK)
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
CZ-B
-
Material:
-
SS316L
-
Dimension:
-
175mm*120mm*80mm
-
Power:
-
electric power, 24V DC
-
Brand:
-
ZHYQ
-
Model:
-
CZ-B
-
Working temperature:
-
0-40℃
-
Protection grade:
-
IP67
-
Max Pressure:
-
1MPa
-
Output:
-
4-20mA , RS485 optional
-
Operating current:
-
≤200mA
-
Weight:
-
3kg
-
Size:
-
175mm*120mm*80mm
Quick Details
-
Type:
-
inline process refractometer
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZHYQ
-
Model Number:
-
CZ-B
-
Material:
-
SS316L
-
Dimension:
-
175mm*120mm*80mm
-
Power:
-
electric power, 24V DC
-
Brand:
-
ZHYQ
-
Model:
-
CZ-B
-
Working temperature:
-
0-40℃
-
Protection grade:
-
IP67
-
Max Pressure:
-
1MPa
-
Output:
-
4-20mA , RS485 optional
-
Operating current:
-
≤200mA
-
Weight:
-
3kg
-
Size:
-
175mm*120mm*80mm
Features
1. High-quality prism: original imported sapphire
2. Accuracy 3%: applicable to more than 40 scenarios
3. Online output: real-time data is not interrupted
4.Three-tier quality inspection: comprehensive quality assurance
5. Three major accessories: ensure smooth installation
6. Three-step installation: Installation completed in 30 minutes
7. Moderately priced: give full consideration to the budget
Product Usage
1
•Real-time monitoring of soluble solids (Brix value) of various beverage manufacturers;
2
•Continuous monitoring of soluble solid content (Brix value) of evaporation, dissolution, mixing, dilution, extraction and other processes.
3
•Real-time measurement of all kinds of industrial solutions, such as: cutting oil, lubricating oil, cleaning fluid, emulsion, release agent concentration:
4
•Concentration detection of various aqueous solutions (food, sauce, beer, wort, beverage, fruit juice, pharmaceutical stock solution, chemical solution, slurry, etc.)
Product Paramenters
|
Model:
|
CZ-B
|
|
Measure Parameters:
|
Refractive index(nD), Brix (%), Temperature (° C)
|
|
Measure range:
|
0-15% ,0-50% , 90%
|
|
Min Resolution Ratio:
|
Brix: 0.1% ( Range for 15% , 0-50%)
|
|
|
Brix: 0.5% ( Range for 90% )
|
|
Measurement Accuracy:
|
Brix:±0.1%,
|
|
|
Brix:±0.3% (standard)
|
|
Measurement Temperature:
|
0-85° C (Automatic Temperature Compensation)
|
|
Operating current:
|
≤200mA
|
|
Display menu:
|
Refractive index(nD) , Brix(%), Temperature (° C)
|
|
Output :
|
4-20mA , 4-20mA+ RS485 optional
|
|
Power:
|
12-24V DC
|
|
Wetted parts material:
|
Prism: sapphire, Prism stage: SS304 , SS316L (can be customized)
|
|
Optical source:
|
LED(the wave length approximate to D line)
|
|
Max Pressure:
|
1MPa
|
|
Environment Temperature:
|
0-40° C
|
|
Protection grade:
|
IP67
|
|
Instrument Size:
|
175mm*120mm*120mm
|
|
Process connection:
|
3” tri-clamp , other size supply free adaptor
|
|
High and low limit settings:
|
Buttons can be set
|
|
Recorder output cable:
|
2M ,3M ,5M,10M optional
|
|
Temperature sensor:
|
Thin film platinum sensor
|
Products Description

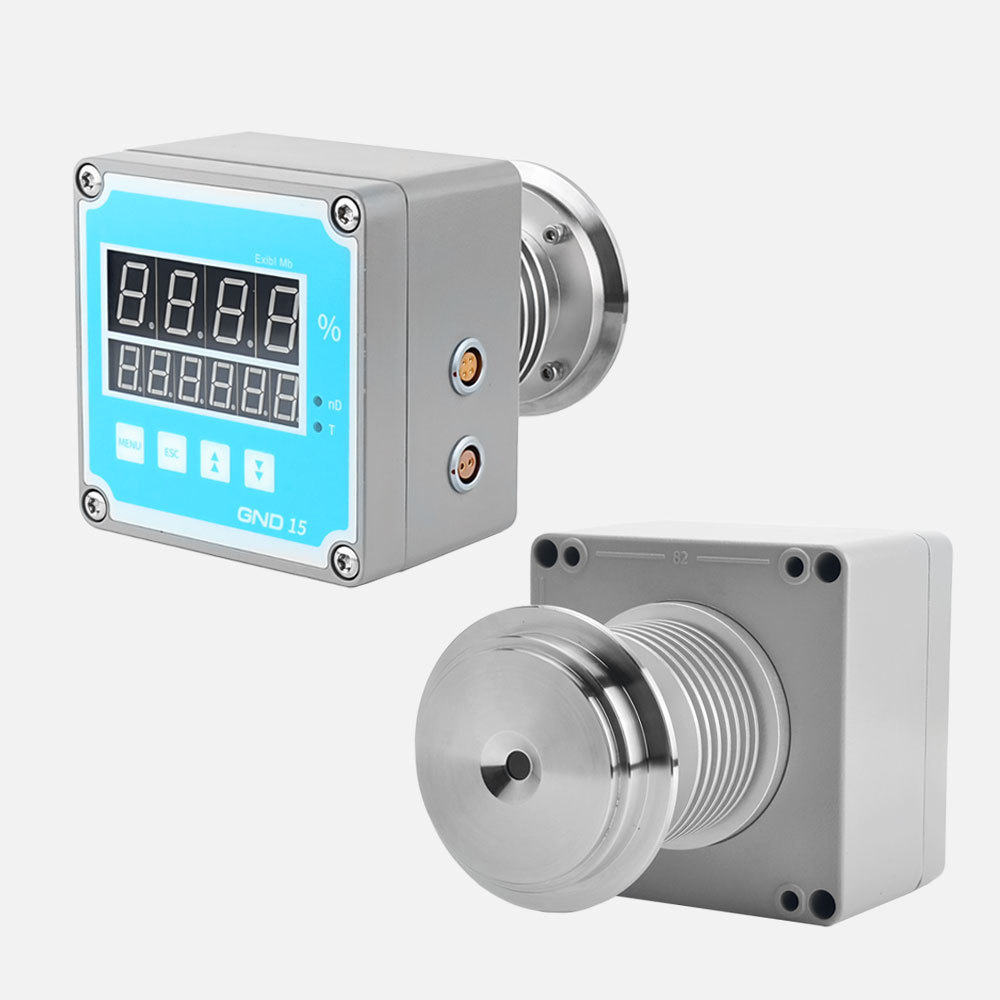

Side Details View
1
Output
:
Pin1:4-20mA+(RED); Pin2:4-20mA-(BLACK); Pin3:RS485B (YELLOW); Pin4:RS485A (GREEN)
Back Details View
A:
Radiator: Disperses heat for high temperature medium
B:
Prism stage material: SS316L , food grade
C:
Prism: sapphire
Names and Functions of Keys
Ⅰ:
Measurement brix value display : Digitally displays the measurement value [Brix(%)], setting mode, and other setting values.
Ⅱ:
Measurement value display : Digital switch displays the measure value [ nD and T]
Ⅲ:
Menu: Switches or sets the display mode of the measurement value and the setting mode, and save the setting value .
Ⅳ:
ESC: Exit key
Ⅴ:
︿：Up keys ：Increase the value in each setting mode.
Ⅵ:
﹀：Down key: decrease the value in each setting mode .
