Quick Details
Quick Details
-
Type:
-
Embedded Computer
-
Brand Name:
-
KTB
-
Place of Origin:
-
Beijing, China
Features:
■ Supports Windows 7/8/10/Linux Operating Systems
■ Onboard Intel Core i5-7267U/i7-7567U dual-core four-thread processors.
■ Supports 3G/4G internet access capabilities, meeting communication requirements(A module must be separately configured).
■ Supports dual communication modules of WiFi and Bluetooth.
■ Support for 6-channel serial ports（ 4*RS-232/2*RS-232/422/485）
|
Product Specifications:
|
|
|
|
|
|
|
|
|||||||
|
Model
|
|
KTB-3530
|
|
|
|
|
|
|||||||
|
Product Name
|
|
KTB KangTai Embedded Industrial Computer
|
|
|
|
|
|
|||||||
|
Processor
|
|
Intel Core I5-7267U 3.1GHz dual core four thread processor
Intel Core I7-7567U 3.5GHz dual core four thread processor |
|
|
|
|
|
|||||||
|
Memory
|
|
DDR4 supports up to 32GB
|
|
|
|
|
|
|||||||
|
Operating system
|
|
Win 7/8/10/ LINUX operating system
|
|
|
|
|
|
|||||||
|
Storage
|
|
1 * MSATA: optional capacity
1 * SATA 2.5 inch: optional capacity |
|
|
|
|
|
|||||||
|
Display interface
|
|
HDMI: support 4096 × 2304
VGA: support 1920 × 1200 |
|
|
|
|
|
|||||||
|
front I/O
|
|
USB: 2*USB2.0
Serial port: 2*COM (RS-232) GPIO: 16 GPIO Audio: 1*MIC, 1*SPK Indicator lights/switches: 1* HDD LED/1* PWR LED/1* LAN1 LED/1* LAN2 LED |
|
|
|
|
|
|||||||
|

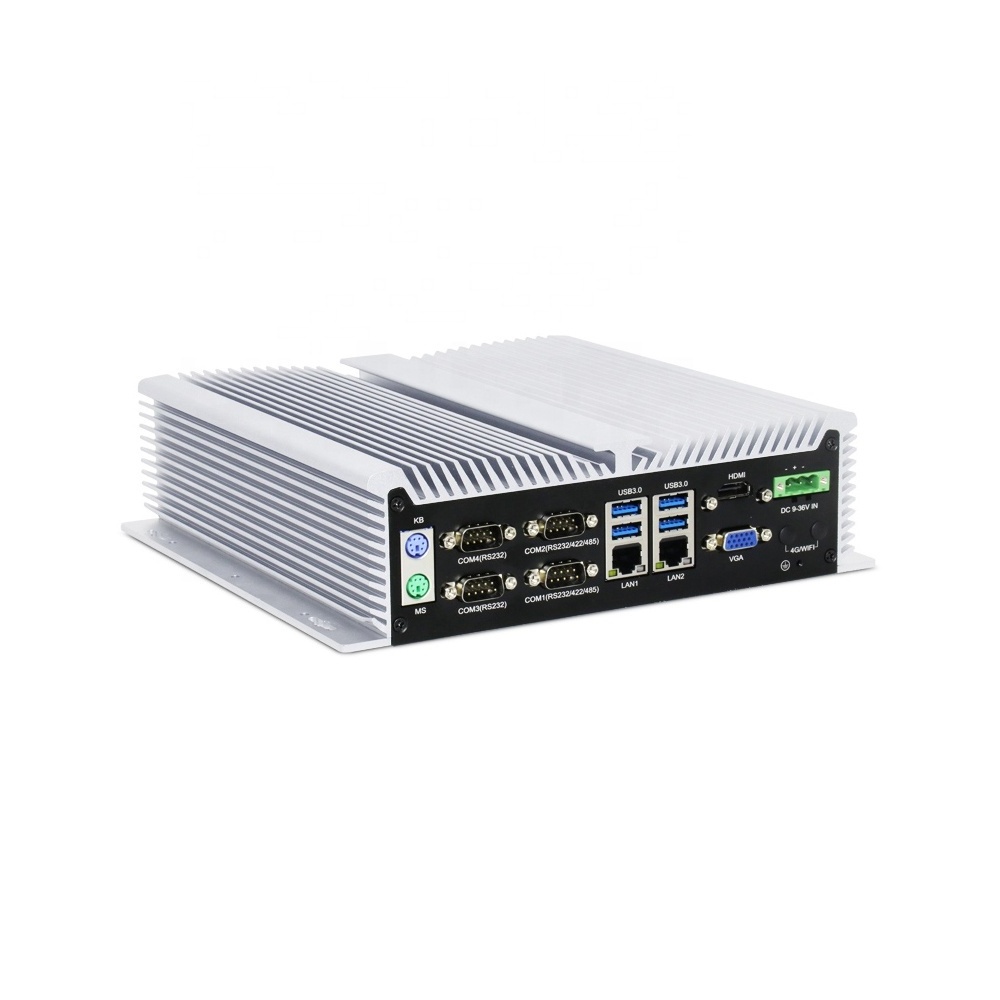

Rear I/O
|
|
USB: 4*USB3.0
Serial port: 2*COM(RS-232), 2COM(RS-232/RS-422/RS-485) Ethernet: 2*10/100/1000Mbps Intel I211, supports remote wake-up PS/2: 2*PS/2 Display: 1*HDMI, 1*VGA |
|
|
|
|
|
|||||||
|
Programming
|
|
Watchdog: Reset, programmable interval
RTC: support RTC |
|
|
|
|
|
|||||||
|
Operating Environment
|
|
Operating temperature: -20℃~70℃
Storage temperature: -40~80℃ Humidity: 90% (20 ± 50℃) |
|
|
|
|
|
|||||||
|
Power supply
|
|
DC 9 ~ 36V wide voltage input
|
|
|
|
|
|
|||||||
|
Product Size
|
|
236mmx220mmx65.2mm（WxDxH）
|
|
|
|
|
|
|||||||
|
Heat dissipation
|
|
Aluminum magnesium alloy upper cover design conduction heat dissipation
|
|
|
|
|
|
|||||||
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer with over 18 years of OEM/ODM experience. We are confident to provide you with better quality, better price satisfactory products.
Q2: Do you accept OEM/ODM orders?
A2: Of course, we have our own R&D team to support the customization of motherboard design and machine design, testing and production.
Q3: What terms of payment do you accept?
A3: We suggest you try Alibaba Trade Guarantee first. It will be more advantageous for you.
Q4: Do you provide sample service?
A4: Yes, we can provide samples on your request before mass production
Q5: How long is your product warranty?
A5: Under normal circumstances, we provide 2 years warranty for all products. If you want to extend the warranty period, we can negotiate according to the actual situation of your order.
Q6: What kind of packaging do you provide for the motherboard?
A6: We usually use bulk packing as the standard, but if you need retail packing, please let us know before placing your order and we will provide it for you.
