PVC Special Injection Molding Machine Screw Barrel PC Special Screw

PVC Special Injection Molding Machine Screw Barrel PC Special Screw

FOB Reference Price: Get Latest Price

≥1 Pieces

US $401

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Screw

Type:: Screw

After-sales Service:: none

Goods No.:: JGH-4043

Packaging:: Foam + carton/foam + wooden case

Scope of application:: PP / PE / PVC / ABS

Nitriding Brittlenes:: HV is greater than 900

Surface roughness:: <=Class A

NItriding Depth:: 0.45-0.7mm

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: JGH

Weight (KG):: 20

Product name:: Screw

Type:: Screw

After-sales Service:: none

Goods No.:: JGH-4043

Packaging:: Foam + carton/foam + wooden case

Scope of application:: PP / PE / PVC / ABS

Nitriding Brittlenes:: HV is greater than 900

Surface roughness:: <=Class A

NItriding Depth:: 0.45-0.7mm

Nickel-Based Alloy Screw

Scope of Application: Injection Molding Machine

Material: N ickel-based alloy material

Category: Screw

Hardness : HRC62°-68°

Surface Roughness: Ra0.4

Effective Length: 12000mm

Nitriding Depth : 0.4mm-0.7mm

Processing range: 5000mm

Straightness Accuracy: 0.015mm-1000mm

The above parameters are for reference only and can be customized.

WE SELL

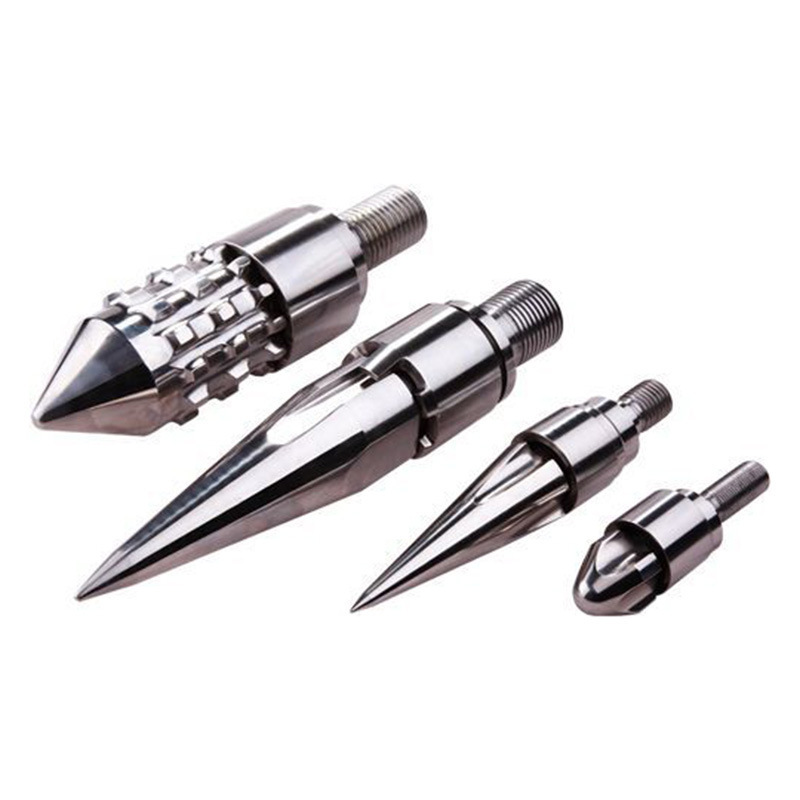

Nitriding screw, double alloy screw( A, B and C type), single or double screw, screw head, non-return valve, sealing resin ring, nozzle and flange, screw and barrel for different brands of injection molding machine, extruder and rubber machine. Brands of injection molding machine:
FANUC, TOSHIBA, NIIGATA, KAWAGUCHI, MEIKI, SODICK, DEMAG, YIZUMI, Haitian, L.K, KraussMaffel, BORCHE, ENGEL, WELLTEC, Husky, FCS, Tederic, etc.
Applicable Plastic:
A large amount of plastic can be used for screw and barrel of injection molding machine, such as PA, PP, PE, POM, PBT, ABS, PS, PVC, PEI, PC, PEEK, etc.

Guangdong Juguangheng Automation Equipment Co., Ltd. provides customized screw, barrel and other products according customer's demand..

You may also like

Product Paramenters

Screw Diameter	Screw Length	Outside Diameter of Barrel Wall	Barrel Wall Length
∅14-∅16	450mm-650mm	∅65-∅75	450mm-650mm
∅18-∅22	450mm-650mm	∅65-∅75	450mm-650mm
∅24-∅28	450mm-700mm	∅65-∅88	450mm-700mm
∅24-∅28	650mm-650mm	∅90-∅98	650mm-820mm
∅30	850mm-900mm	∅85-∅98	750mm-820mm
∅30-∅32	1000mm-1200mm	∅98-∅108	950mm-1150mm
∅34	1000mm-1200mm	∅98-∅108	950mm-1150mm
∅36	850mm	∅110	950mm
∅36	1050mm-1200mm	∅110	1050mm-1250mm
∅38	950mm-1200mm	∅98-∅118	950mm-1150mm
∅40	1050mm-1250mm	∅105-∅118	1050mm-1200mm
∅42	1050mm-1250mm	∅105-∅118	1050mm-1200mm
∅44	1050mm-1250mm	∅105-∅118	1050mm-1200mm
∅46	1050mm-1250mm	∅105-∅118	1050mm-1200mm
∅48	1050mm-1250mm	∅105-∅118	1050mm-1200mm

Model	L/D	Output Capacity (kg/h)	Screw Rotation Speed (rpm)	Driving Motor (kw)	Center Height (mm)
JGH	20:1	3-5	10-60	1.1/1.5/2.2	1000-1400
JGH	25:1	5-8	10-60	2.2/3.0/4.0	1000-1400
JGH	25:1	5-10	10-60	2.2/3.0/4.0	1000-1400
JGH	25-36:1	10-120	10-150	5.5-22	1000-1400
JGH	25-36:1	60-300	20-150	22-75	1000
JGH	25-36:1	200-450	20-150	30-132	1000
JGH	25-36:1	180-600	20-110	30-185	1000-1100
JGH	25-36:1	320-1000	20-90	75-280	1000-1250

Manufacturing Technique

Technical Information
Main Base Materials	1. 38CrMoAlA (SACM645)	Main Alloy Materials	1. Ni-based alloy/ Deloro alloy
			2. SKD-61(Special Tool Steel)	2.Tungsten carbide/Wolfram carbide
			3. 42CrMo(Ultrahigh Strength Steel)	3.NiCo-based alloy
			4. DC53(Cold Workdie Steel)	4.Fe-based alloy
			5. W6Mo5Cr4V2 (High-speed Tool Steel)	5. Co-based alloy
Processing Technics	1.Heat treatment	Technical Parameters	Nitriding layer depth: 0.5-0.8mm
			2. Quenching	Nitrided hardness: 900-1000HV
			3. Nitriding treatment	Bimetallic layer depth: 3mm
			4. Bimetallic alloy welding for screw	Bimetallic hardness: 57~69HRC
			5. Bimetallic alloy centrifugal casting for barrel	Hard-chrome plating hardness after nitriding: ≥950 HV
			6. Hard-chrome electroplating	Chrome-plating layer depth: 0.03~0.09mm
					Surface roughness: Ra 0.4
					Linearity of screw: 0.015mm

Choose Juguangheng Company

More services for you

Screw and parts for injection molding machine, one to one program customization, proofing quickly, high efficiency

APPLICABLE MACHINE

Juguangheng sells screw and barrel for injection molding machine, extruder, blow molding machine, crusher, film blowing machine and other machines.
