Quick Details
-
Voltage:
-
220/380/400/415V
-
Dimension(L*W*H):
-
1950*900*1950
-
Weight (T):
-
2.6
-
Impact pressure (ton):
-
60T
-
Maximum plate thickness (mm):
-
16
-
Sheet strength (Newton / mm 2):
-
≤450
-
Shear angle:
-
7°
-
Size of first stroke shear plate:
-
16*250 8*400
-
Slide stroke:
-
80
-
Stroke times (sub):
-
11-20
-
Throat depth (mm):
-
300
-
Punching thickness (mm):
-
18
Quick Details
-
Nominal Force (kN):
-
60
-
Place of Origin:
-
China
-
Year:
-
2022
-
Voltage:
-
220/380/400/415V
-
Dimension(L*W*H):
-
1950*900*1950
-
Weight (T):
-
2.6
-
Impact pressure (ton):
-
60T
-
Maximum plate thickness (mm):
-
16
-
Sheet strength (Newton / mm 2):
-
≤450
-
Shear angle:
-
7°
-
Size of first stroke shear plate:
-
16*250 8*400
-
Slide stroke:
-
80
-
Stroke times (sub):
-
11-20
-
Throat depth (mm):
-
300
-
Punching thickness (mm):
-
18
Product Description
Specification
|
Model
|

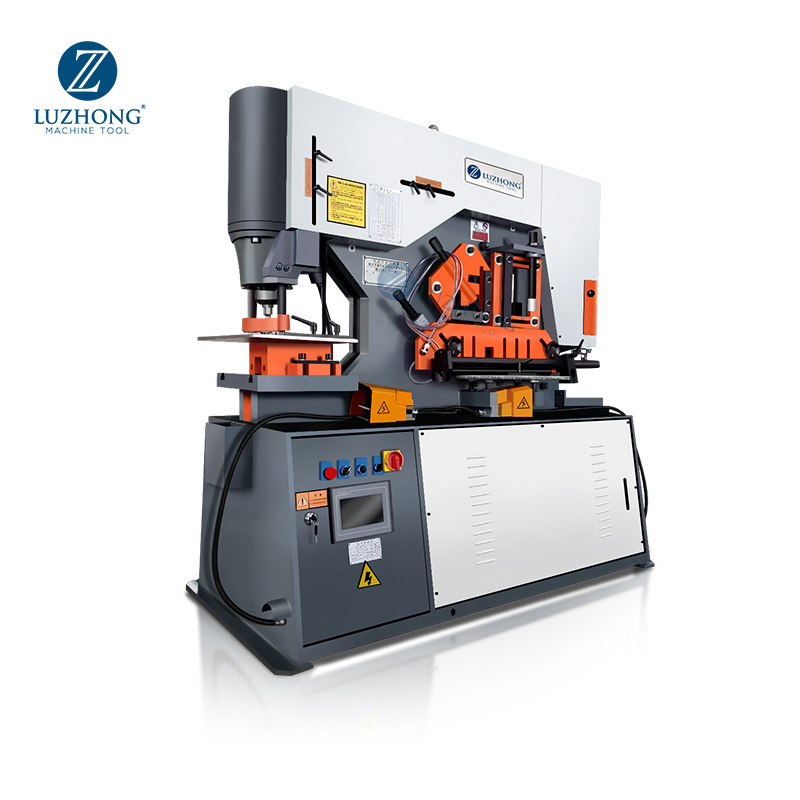

Q35Y-16
|
|
Impact pressure (ton)
|
60T
|
|
Maximum plate thickness (mm)
|
16
|
|
Sheet strength (Newton / mm 2)
|
≤450
|
|
Shear angle
|
7°
|
|
Size of first stroke shear plate (thickness * width) (mm)
|
16*250 8*400
|
|
Slide stroke
|
80
|
|
Stroke times (sub)
|
11-20
|
|
Throat depth (mm)
|
300
|
|
Punching thickness (mm)
|
18
|
|
Max. punching diameter (mm)
|
25
|
|
Main motor power (kw)
|
5.5
|
|
Oversize
|
1730*820*1900
|
