Quick Details
-
Series and parallel mode:
-
16S1P
-
Module size:
-
650*233*400mm
-
Module weight:
-
31KG
-
Rated voltage:
-
51.2V
-
Working voltage range:
-
40V-58.4V
-
Rated capacity:
-
100Ah
-
Energy:
-
5.12kWh
-
Rated charging current:
-
50A
-
Peak charge current:
-
100A
Quick Details
-
Model Number:
-

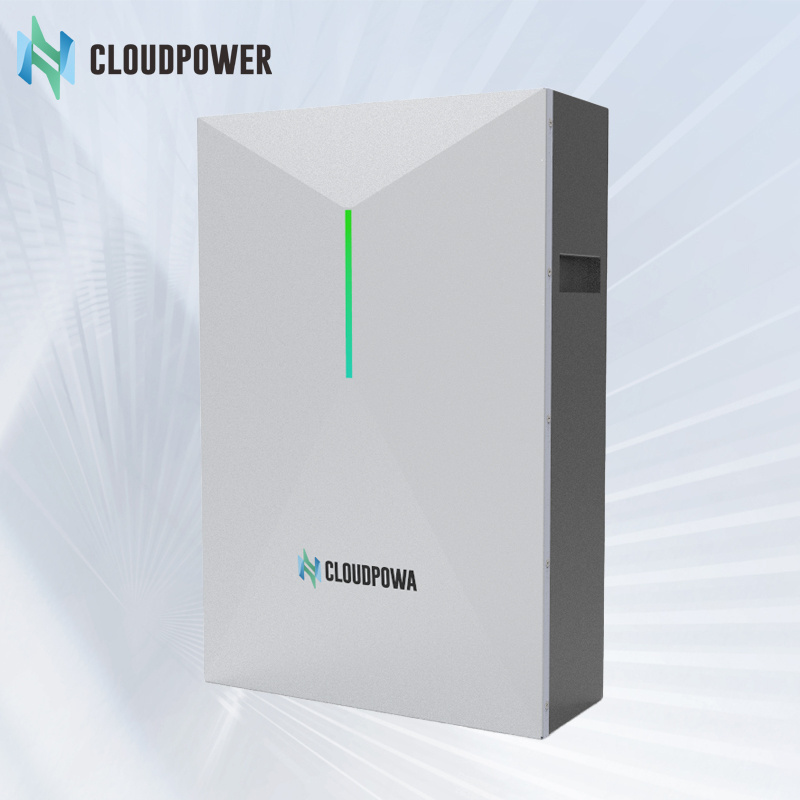

Wall-mounted home energy storage system
-
Brand Name:
-
CloudPowa
-
Place of Origin:
-
Jiangsu, China
-
Series and parallel mode:
-
16S1P
-
Module size:
-
650*233*400mm
-
Module weight:
-
31KG
-
Rated voltage:
-
51.2V
-
Working voltage range:
-
40V-58.4V
-
Rated capacity:
-
100Ah
-
Energy:
-
5.12kWh
-
Rated charging current:
-
50A
-
Peak charge current:
-
100A
Product Description
Specification
|
Battery Type
|
LiFePO4
|
|
Series and parallel mode
|
16S1P
|
|
Module size
|
650*233*400mm
|
|
Module weight
|
31KG
|
|
Rated voltage
|
51.2V
|
|
Working voltage range
|
40V-58.4V
|
|
Rated capacity
|
100Ah
|
|
Energy
|
5.12kWh
|
|
Rated charging current
|
50A
|
|
Peak charge current
|
100A
|
|
Rated discharging current
|
50A
|
|
Peak discharge current
|
100A
|
|
Charging temperature
|
0-55℃
|
|
Discharging temperature
|
-10 to 55 degrees Celsius
|
|
Optimaltemperature
|
15 to 25 degrees Celsius
|
|
Cycle life
|
> 5000 cycles%80DOD,0.5C/0.5C,25 degrees Celsius
|
|
Communication interface
|
CAN/RS485
|
|
Protection
|
Over temperature, over current, over voltage, insulation and other multiple protection
|
|
Display
|
LED
|
|
Design life
|
>10 years
|
|
Certification
|
UN38.3/UL1973/IEC62619
|
|
Size( L* W* H)
|
655*440*182mm
|
|
Weight
|
50kg
|
|
Advantage 1
|
High security Lifepo4multiple protection
|
|
Advantage 2
|
Perfect BMS batterycontrolsystem
|
|
Advantage 3
|
Supportmultipleparallelmachines
|
|
Advantage 4
|
Support CAN/RS485communication
|
Products Description
1.High security Lifepo4 multiple protection
2.Perfect BMS battery control system
3.Suppor tmultiple parallel machines
4.Support CAN/RS485 communication
