Quick Details
-
Model Number:
-
Customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HS
-
Copper Thickness:
-
1oz-3oz
-
Min. Hole Size:
-
0.2mm
-
Min. Line Width:
-
0.2mm
-
Min. Line Spacing:
-
0.2mm
-
Surface Finishing:
-
OSP HASL
-
PCB type:
-
LED PCB
-
Number of layer:
-
1layer
-
Certificate:
-
CE ROHS
-
Warranty:
-
3years
-
Dsign service:
-
Available
-
Testing:
-
Function testing
-
Delivery:
-
DHL FedEx UPS
-
Diodes:
-
LM301B
-
Other service:
-
Components purchasing and assembly
-
PCB clone:
-
Acceptable
Quick Details
-
Base Material:
-
Aluminum
-
Board Thickness:
-
1.0mm-3.0mm
-
Board Size:
-
Customized
-
Model Number:
-
Customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HS
-
Copper Thickness:
-
1oz-3oz
-
Min. Hole Size:
-
0.2mm
-
Min. Line Width:
-
0.2mm
-
Min. Line Spacing:
-
0.2mm
-
Surface Finishing:
-
OSP HASL
-
PCB type:
-
LED PCB
-
Number of layer:
-
1layer
-
Certificate:
-
CE ROHS
-
Warranty:
-
3years
-
Dsign service:
-
Available
-
Testing:
-
Function testing
-
Delivery:
-
DHL FedEx UPS
-
Diodes:
-
LM301B
-
Other service:
-
Components purchasing and assembly
-
PCB clone:
-
Acceptable

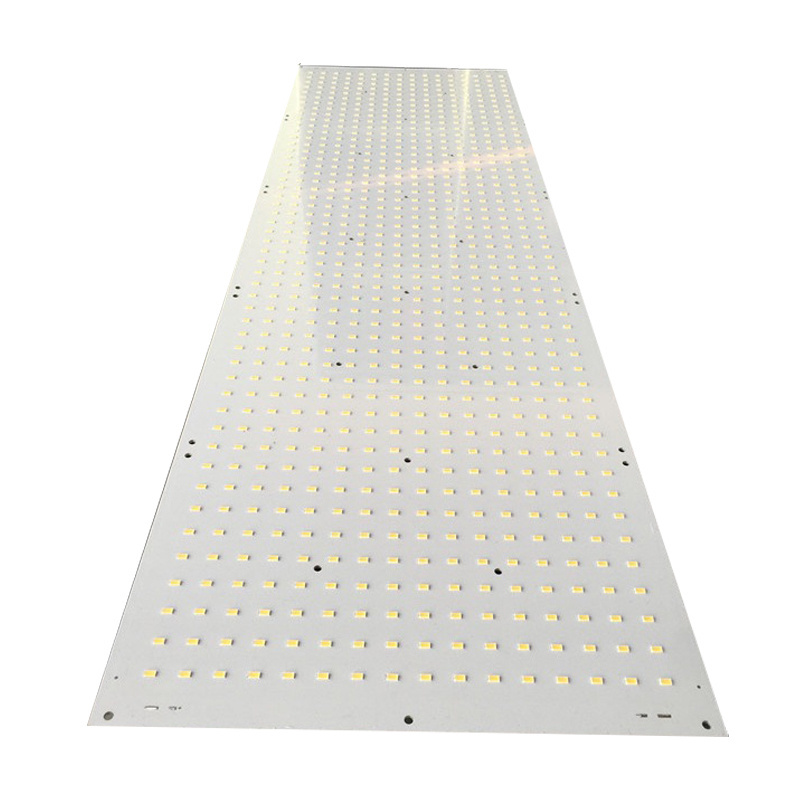

Custom LM301B PCB manufacturer LM301B LED PCB
We can do for you:
♦ 1-12 layer FR4 PCB.
♦ 1-2layer aluminum PCB.
♦ LED PCB
♦ SMT and DIP assembly service.
FAQ:
Q: 1.Can i have a sample to test?
A: Yes,we can send you samples to test.
Q: 2.What specifications do you need for PCB quotation?
A: We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.
Q: 3.What is the lead time?
A: Samples need 3-5days,mass production needs 7-10days,also according to the order volume .
Q: 4.Do you have MOQ limit?
A: Even 1 pcs,we care.
Q: 5.Can you offer the best price for us?
A: Yes,we are specialized PCB manufacturer directly,we can offer lower price than any trading company.
Q: 6.How do you ship the goods and how long does it take arrival?
A: We usually ship by DHL,UPS,FedEx and TNT.It takes 3-5days to arrive.
Q: 7.What are the payment terms?
A: You can pay us with Paypal,Western Union and T/T Bank.
Q: 8.Can we visit your factory?
A: Yes,welcome to visit our factory anytime,and we will lead you to visit our factory and our production line.
Manufacturing Capability:
|
item |
Manufacture Capability |
|
Material |
FR 4, CEM- 1 , Aluminium, Polyamide |
|
Layer No. |
1-1 2 |
|
Finished board thickness |
0. 1 mm- 4.0 mm |
|
Board Thickness Tolerance |
±10% |
|
Cooper thickness |
0.5 OZ- 3 OZ (18 um-385 um) |
|
Copper Plating Hole |
18-40 um |
|
Impedance Control |
±10% |
|
Warp&Twist |
0.70% |
|
Peelable |
0.012"(0.3mm)-0.02’(0.5mm) |
|
Images |
|
|
Min Trace Width (a) |
0.075mm (3mil) |
|
Min Space Width (b) |
0.1mm (4 mil) |
|
Min Annular Ring |
0.1mm (4 mil) |
|
SMD Pitch (a) |
0.2 mm(8 mil) |
|
BGA Pitch (b) |
0.2 mm (8 mil) |
|
Solder Mask |
|
|
Min Solder Mask Dam (a) |
0.0635 mm (2.5mil) |
|
Solder mask Clearance (b) |
0.1mm (4 mil) |
|
Min SMT Pad spacing (c) |
0.1mm (4 mil) |
|
Solder Mask Thickness |
0.0007"(0.018mm) |
|
Holes |
|
|
Min Hole size (CNC) |
0.2 mm (8 mil) |
|
Min Punch Hole Size |
0.9 mm (35 mil) |
|
Hole Size Tol (+/-) |
PTH:±0.075mm;NPTH: ±0.05mm |
|
Hole Position Tol |
±0.075mm |
|
Plating |
|
|
HASL |
2.5um |
|
Lead free HASL |
2.5um |
|
Immersion Gold |
Nickel 3-7um Au:1-5u'' |
|
OSP |
0.2-0.5um |
|
Outline |
|
|
Panel Outline Tol (+/-) |
CNC: ±0.125mm, Punching: ±0.15mm |
|
Beveling |
30°45° |
|
Gold Finger angle |
15° 30° 45° 60° |
|
Certificate |
ROHS, ISO9001:2008, SGS, UL certificate |
