Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YongJin, YongJin
-
Dimension(L*W*H):
-
1.4*1*1.8, 1.4*1*1.8
-
Weight:
-
890 KG
-
Power:
-
2.2KW
-
Commodity name:
-

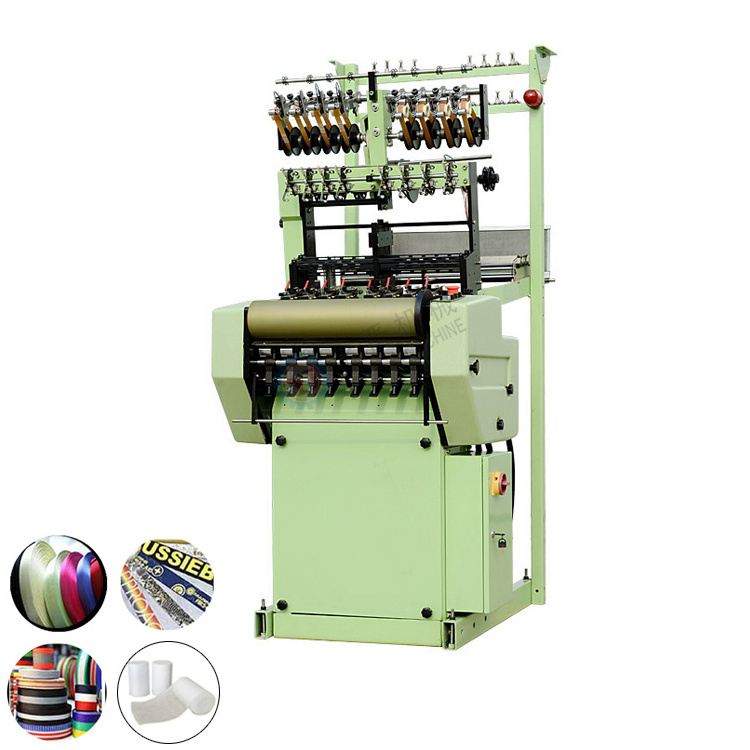

Shuttleless loom machine
-
Model Number:
-
YJ-V 8/27
-
Place of origin:
-
GuangZhou, China
Quick Details
-
Type:
-
Shuttleless loom
-
Production Capacity:
-
Maximum machine speed:1700, 300sets / month
-
Application:
-
Produce Narrow Fabric, To produce narrow fabrics straps/belt/webbing/tape and so on
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YongJin, YongJin
-
Dimension(L*W*H):
-
1.4*1*1.8, 1.4*1*1.8
-
Weight:
-
890 KG
-
Power:
-
2.2KW
-
Commodity name:
-
Shuttleless loom machine
-
Model Number:
-
YJ-V 8/27
-
Place of origin:
-
GuangZhou, China
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
| Model | 2/110 | 4/65 | 6/50 | 8/30 | 12/15 | 8/30-2 | 12/18-2 |
| Length of frame | 550MM | ||||||
|
Number of tapes |
2 | 4 | 6 | 8 | 12 | 16 | 24 |
| Width of reed | 110 | 65 | 50 | 30 | 15 | 30 | 18 |
| Maximum of tapes | 100 | 63 | 48 | 28 | 13 | 28 | 16 |
| Number of frame | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Power/Voltage | 1.1KW/380V | ||||||
| Circulation | 1:8/16-48 | ||||||
| Speed | 800-1500rpm | ||||||
| Main Features |
|
1.It is small in size and good-looking in appearance. |
|
2.The principal axis is electromagnetic braking. It is easy-to-use and sensitive to start and stop, and not cause to any useless tapes. |
|
3.The single iron frame being divided on two sides and oriented in the middle, it can change to various flower shape and different kinds of tapes. |
|
4.It is featured by double weft and double hook and can weave every complex ribbon and double Z-type ribbon. |
|
5.The advanced automatic weft feeding device ensures fine tuning of weft feeding when non-stop of machine. |
|
6.The cam is characterized by its novel profile, no making too much noise and its high-quality lockrand. |
|
7.The number of lines of strips can be changed quickly and efficiently.Motor power is 1.1KW |
|
8.The coiling setting is small in size and easy-to-use, and the coiling tape setting will stop automatically. |
