Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfectlaser
-
Dimension(L*W*H):
-
1000*750*1150mm
-
Weight (KG):
-
250 KG
-
Core Components:
-
main board, cutting head, cut table
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Voltage::
-
220V, 50HZ/60HZ
-
USB interface:
-
yes
-
Software:
-
Ruida
-
front &rear door:
-
yes, pass long sheet material
-
machine name:
-
CO2 laser cutting /engraving machine
-
Water Chiller Model:
-
CW-3000,CW-5000 for laser cut wedding invitation card
-
Cutting Speed:
-
0-10000 mm/min for laser cut wedding invitation card
-
Color:
-
Blue & White/ Yellow& Grey/Red&White
Quick Details
-
Engraving Area:
-
400mm*600mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-60000 mm/min
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfectlaser
-
Dimension(L*W*H):
-
1000*750*1150mm
-
Weight (KG):
-
250 KG
-
Core Components:
-
main board, cutting head, cut table
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Voltage::
-
220V, 50HZ/60HZ
-
USB interface:
-
yes
-
Software:
-
Ruida
-
front &rear door:
-
yes, pass long sheet material
-
machine name:
-
CO2 laser cutting /engraving machine
-
Water Chiller Model:
-
CW-3000,CW-5000 for laser cut wedding invitation card
-
Cutting Speed:
-
0-10000 mm/min for laser cut wedding invitation card
-
Color:
-
Blue & White/ Yellow& Grey/Red&White
mini cnc laser wood cutting machine

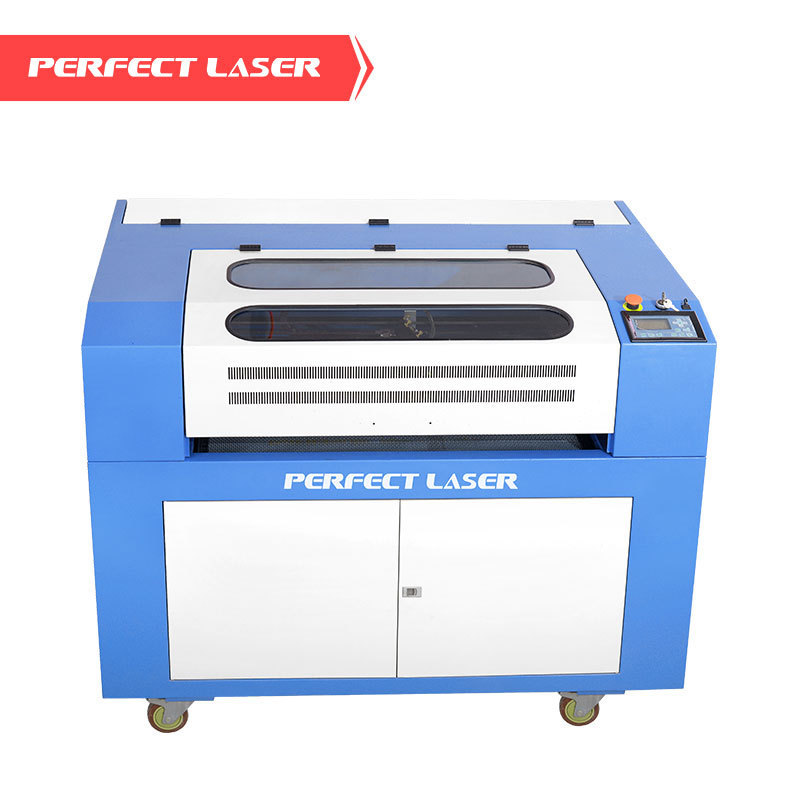

small 6040 co2 laser cutter for acrylic leather craft
(Model:PEDK-6040)
Crystal: sales013(@)perfectlaser.net; Whatsapp:+86 136 5989 3728; Skype: perfectlaser013
PEDK-6040 laser engraving machine is the most hot-selling model accepted by our customers. Co2 laser cutters has large 600mm by 400mm working area, compact nesting, convenient storage materials.
The knife-shape aluminum heavy strip work of the platform can avoid defective products caused by reflection of backstop while cutting acrylic & wood materials. If change into honeycomb working table, Co2 laser cutters can used to engrave and cut cloth, fabric, carpet, shoes, etc.
|
Model |
PEDK-4030 |
PEDK-6040 |
PEDK-9060 |
PEDK-13090 |
PEDK-160100 |
PEDK-130250 |
|
PEDK-130180 |
PEDK-160260 |
|||||
|
Working Area |
400×300mm |
600×400mm |
900×600mm |
1300×900 m m |
1600×1000mm |
1300×2500mm |
|
1300×1800mm |
1600×2600mm |
|||||
|
Laser Power |
40W / 50W |
50W / 60W |
60W / 80W |
60W / 80W / 100W / 120W / 150W |
||
|
Laser Type |
Hermetic and Detached Co2 Laser Tube |
|||||
|
Engraving Speed |
1-60000mm/min |
|||||
|
Cutting Speed |
1-10000mm/min |
|||||
|
Repeat Location Accuracy |
± 0.0125mm |
|||||
|
Laser Power Controlling |
1-100% Manual Adjustment and Software Controlling |
|||||
|
Voltage |
220V(±10%) 50Hz |
|||||
|
Cooling Mode |
Water Cooling and Protect System |
|||||
|
Cutting Platform |
Professional Thickening Strip or Honeycomb Work Table |
|||||
|
Controlling Mode |
CNC Professional Control System |
|||||
|
Support Graphics Formats |
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |
|||||
|
Power Controlling Mode |
Laser Energy Combining Movement Control System |
|||||
|
Control Software |
Original Perfect Laser’ s Engraving & Cutting Software |
|||||
|
Training |
Video Training |
|||||
|
Guarantee |
12 month Guarantee Period |
|||||
1. 50w and 40w small laser engraver is small and compact, suitable for home DIY for all kinds of non-metal material engraving and cutting.
2. The desktop laser engravers can engrave and cut on nonmetal materials, such as Crafts, Furniture, Glasses, Woods, PVC, Lightings, Advertising and decorating, paper, etc.
3. With selective electric lifting table (lifting range: 0-400mm), from top to bottom small laser engraver owns a large adjust range and thus can meet the different thickness of the processing needs.
CNC small laser engraver has been widely used in trademarks, embroidery, clothing and other industries.Adoptable for clothing tailoring, embroidery cutting, leather cutting, leather carving, leather punch & hollow,shoes cutting & carving. This kind of of machine also can be called desktop laser engravers,laser engraver prices,CNC engraver,small laser engraver,50w laser engraver,40w laser engraver.
