Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
JS16H-10J/S
-
IP level:
-
ip65
-
Rating:
-
2A 36VDC
-
Operation type:
-
Push Spring Return
-
Type:
-
Metal Pushbutton
-
Head shape:
-
High Round
-
Terminal type:
-
2 Pin Terminals
-
Switch combination:
-
1 NO
-
Mounting hole:
-
16mm
-
Item:
-
Long Life Micro Switch
-
Material:
-
Stainless Steel
-
Contact Material:
-
Sliver Alloy
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
2A
-
Max. Voltage:
-
36V DC
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
JS16H-10J/S
-
IP level:
-
ip65
-
Rating:
-
2A 36VDC
-
Operation type:
-
Push Spring Return
-
Type:
-
Metal Pushbutton
-
Head shape:
-
High Round
-
Terminal type:
-
2 Pin Terminals
-
Switch combination:
-
1 NO
-
Mounting hole:
-
16mm
-
Item:
-
Long Life Micro Switch
-
Material:
-
Stainless Steel
-
Contact Material:
-
Sliver Alloy
Order Note：
Our
RTS order
is for
High head and Screw Terminal
,if you need other color or Pin terminal , pls inform us by message,tks!
Momentary : Push--ON, release--the actuator surface spring to original position;
Head Shape :
Default Ball Head
(Or Flat head / Ball Head
pls inform us by message
);
Terminal Type : Default Pin Terminal (or Screw Terminal pls inform us by message );
Terminal Type : Default Pin Terminal (or Screw Terminal pls inform us by message );
Product Display

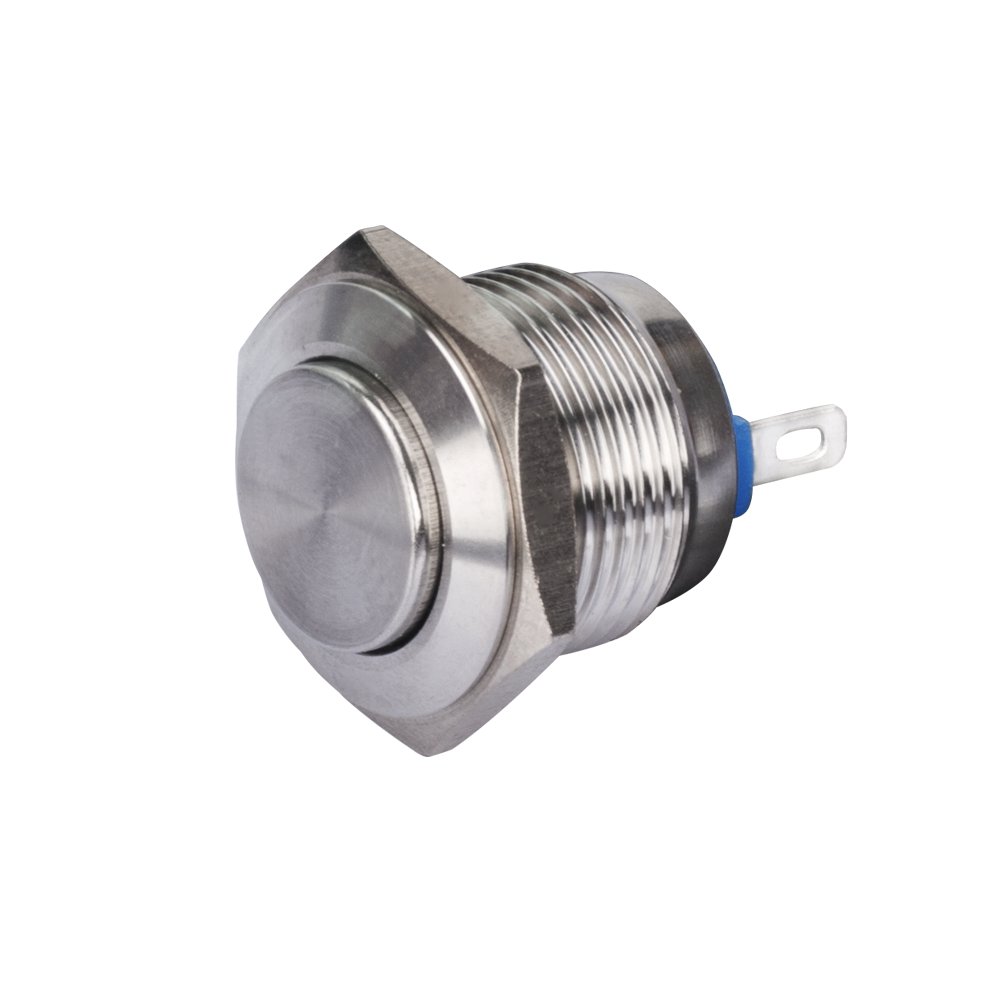

16mm Momentary Switches Metal High Roun Head push to start engine start button
★All our products have passed the CE, CCC, ROHS etc. certifications.
★Our push buttons use 95% silver contacts,with good contact performance.
★Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.
★Our Metal push button switch's Mechanical Life more than 100,0000 times,with long service life.
★It is a Good quality push button, its push feeling is very good.
★Our push buttons are made of anti-damage metal, not easy to fade, excellent performance, IP67 protection level.
★It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
Product Paramenters
|
Model
|
JS16H-10/S
|
|
Brand Name
|
YUESHUN
|
|
Mounting Hole Size
|
16mm
|
|
Max Switch Rating
|
2A / 36VDC
|
|
Contact Configuration
|
1NO ( Normal Open)
|
|
Operation Type
|
Momentary
|
|
Head Shape
|
High Round Head
|
|
Terminal Type
|
Pin Terminal
|
|
Body Material
|
Stainless Steel
|
|
Button Material
|
Stainless Steel
|
|
Base Material
|
PBT
|
|
Contact Material
|
Silver Alloy
|
|
IP Degree
|
IP65
|
|
Contact Resistance
|
≤ 50mΩ
|
|
Insulation Resistance
|
≥ 10000mΩ
|
|
Dielectric Strength
|
2000VAC
|
|
Operation Temperature
|
-20℃～+55℃
|
|
Mechanica Life
|
More than 1000,000 cycles
|
|
Electrical Life
|
More than 200000 cycles
|
|
Panel Thickness
|
1-6mm
|
|
Torque
|
5-14Nm
|
|
Operating Pressure
|
About 4N
|
|
Operating Distance
|
About 1.5mm
|
