Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
guangzhou guanyu
-
Dimension(L*W*H):
-
1100X1100X1650
-
Weight:
-
120
-
Polish:
-
Mirror polish
-
Material:
-
SUS304,SUS316
-
Standard:
-
GMP
-
Application:
-
Liquid Soap Hand Sanitizer Alcohol Shampoo Cream Ketchup
-
Keywords:
-
Stainless steel storage tank
-
Accessories:
-
Valve and seal ring
-
Function:
-
For Save Liquid Soap Hand Sanitizer Alcohol Shampoo Cream Ketchup
-
Volume:
-
50L-50000L
-
Thickness:
-
3-6mm
Quick Details
-
Capacity:
-
50L-10000L
-
Max Working Pressure(MPa):
-
0.1 MPa
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
guangzhou guanyu
-
Dimension(L*W*H):
-
1100X1100X1650
-
Weight:
-
120
-
Polish:
-
Mirror polish
-
Material:
-
SUS304,SUS316
-
Standard:
-
GMP
-
Application:
-
Liquid Soap Hand Sanitizer Alcohol Shampoo Cream Ketchup
-
Keywords:
-
Stainless steel storage tank
-
Accessories:
-
Valve and seal ring
-
Function:
-
For Save Liquid Soap Hand Sanitizer Alcohol Shampoo Cream Ketchup
-
Volume:
-
50L-50000L
-
Thickness:
-
3-6mm
The following can be customized
1. Fixed or movable
2. Seal or open
3. Adopt SUS304 or SUS316L
4. Single-layer or three-layer
5. Vertical or horizontal
6. With agitator or not
7. Size and height
8. Thickness of wall of tank
9. Others

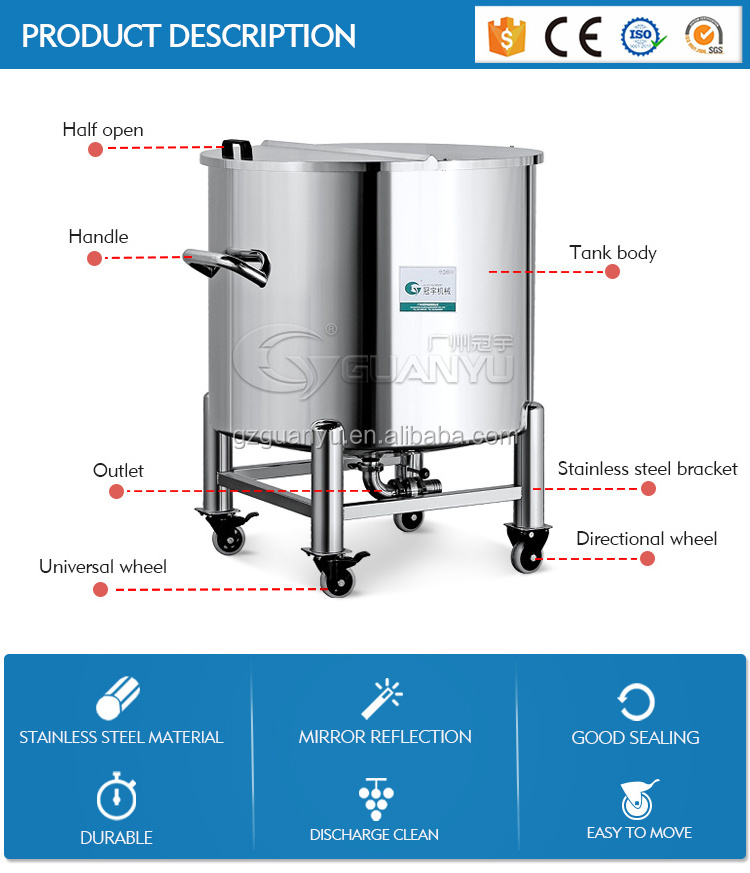

The structure of tank
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Miller board jacket cooling design for keeping freshness and quality of dairy products.
3. Humanized design of door hole and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitary.
The introduction of tank
1. Quick open manhole
2. Equipped with the CIP cleaning .
3. Adjustable triangular bracket .
4 Dismountable materials input pipe assembly .
5. Can be equipped with thermometer if your request .
6. Jacket(miller board , hollow jacket or coil pipe jacket are available according to your request )
7. Liquid level meter and level controller (according to your request )
1. Fixed or movable
2. Seal or open
3. Adopt SUS304 or SUS316L
4. Single-layer or three-layer
5. Vertical or horizontal
6. With agitator or not
7. Size and height
8. Thickness of wall of tank
9. Others
The structure of tank
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Miller board jacket cooling design for keeping freshness and quality of dairy products.
3. Humanized design of door hole and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitary.
The introduction of tank
1. Quick open manhole
2. Equipped with the CIP cleaning .
3. Adjustable triangular bracket .
4 Dismountable materials input pipe assembly .
5. Can be equipped with thermometer if your request .
6. Jacket(miller board , hollow jacket or coil pipe jacket are available according to your request )
7. Liquid level meter and level controller (according to your request )
|

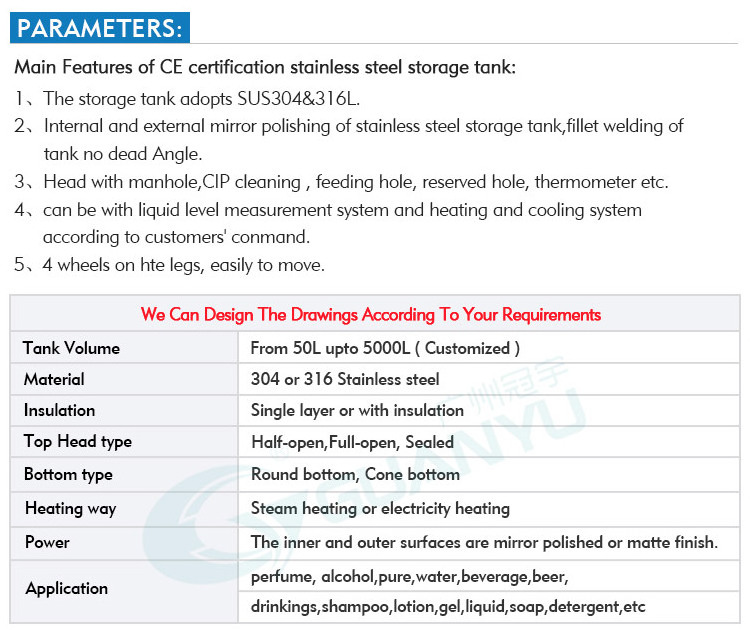

Material
|
SUS304 or SUS316L
|
|
Volume
|
50~30000L
|
|
Construction
|
Vertical type or Horizontal type
|
|
Surface Finish
|
Mirror Polish or Matt polish
|
|
Standard Components
|
Manhole,sight glass, cleaning ball
|
|
Optional Components
|
Vent filter, Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100, digital display on the control cabinet by
instrument Temp sensor with control for heating and cooling Level gauge with digital display on the control cabinet by instrument Load cell Valves |
|
Applications
|
Wine, Beer Juices Food & Beverage
Biotechnology & Laboratory Device Chemical Industry Painting Industrial |
