Quick Details
-
Management:
-
Web-based NMS
-
Dual Power Supply:
-
support
-
Hot-swappable Slots:
-
6
-
RJ45 Port:
-
4xGigabit
-
Input:
-
HDMI TSIP
-
IP Output:
-
128 I/O SPTS/MPTS UDP/RTP
-
Video Codec:
-
HEVC/H.265 H.264
-
Audio Codec:
-
AAC AC3 MPEG1L2
-
Modulation:
-
QAM/OFDM/ISDB-T/8VSB
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wellav
-
Model Number:
-
CMP203
-
Management:
-
Web-based NMS
-
Dual Power Supply:
-
support
-
Hot-swappable Slots:
-
6
-
RJ45 Port:
-
4xGigabit
-
Input:
-
HDMI TSIP
-
IP Output:
-
128 I/O SPTS/MPTS UDP/RTP
-
Video Codec:
-
HEVC/H.265 H.264
-
Audio Codec:
-
AAC AC3 MPEG1L2
-
Modulation:
-
QAM/OFDM/ISDB-T/8VSB
INTRODUCTION

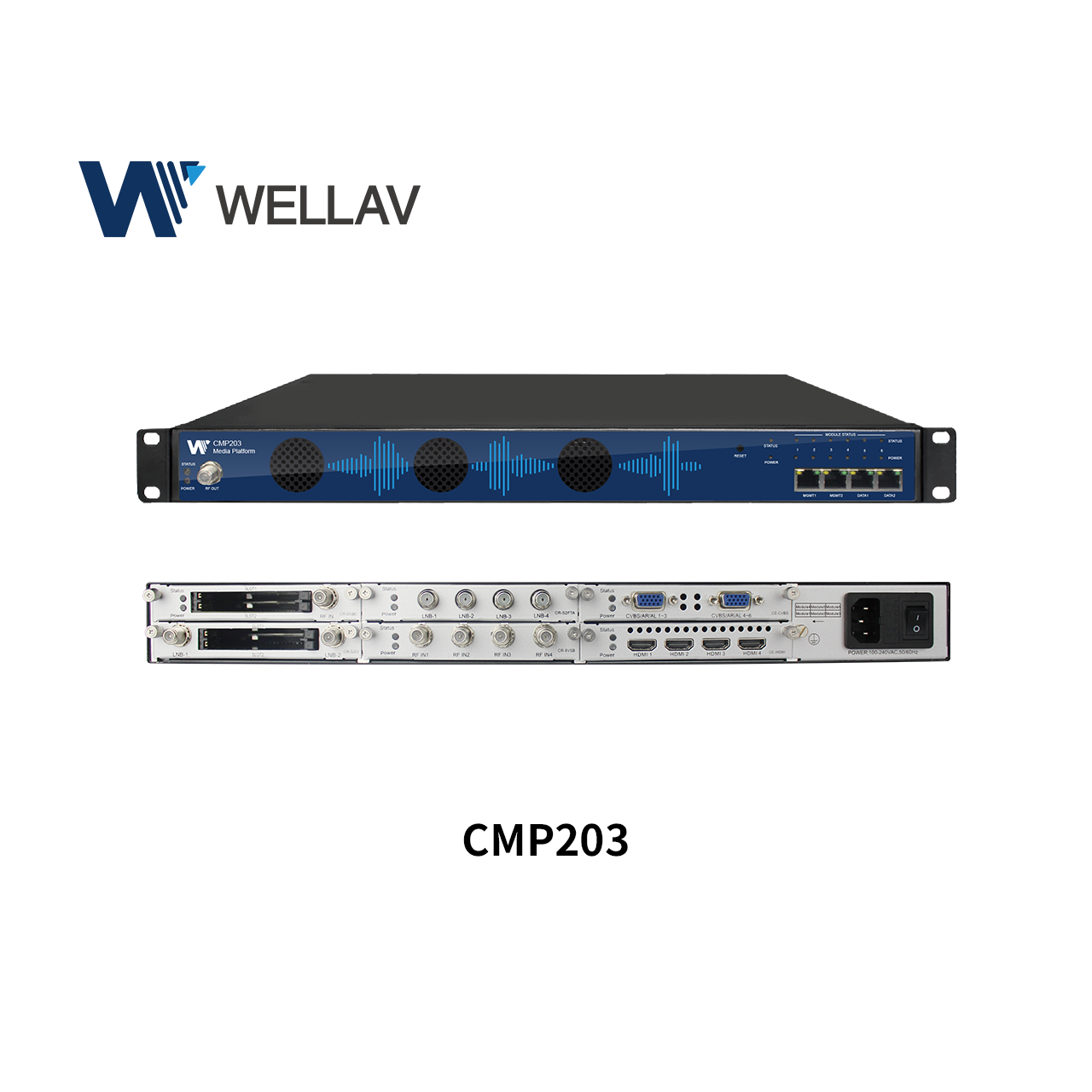

CMP201/203 is the next generation of modular video processing by Wellav.The chassis comes with a singleor dual power supply option and accommodates up to six modules. Using a built-in lP switch and diverserange of hot-swappable input/output options, CMP201/203 is a highly flexible solution perfect for a varietyof applications including Hospitality,Education, Government, MDU, and more. Offering an excellent balance of performance VS value , the CMP201/203 is ideal for dense multi-channel encoding, signal reception , digitalturn around, and simultaneous IPTV + QAM distribution without an excessive price tag. Backed by a worldwide based support team and a intuitive Web-Interface, the CMP201/203 is easy for any organization to deploy and operate.
FEATURES
- 19”1RU standard rack unit
- Optional dual power supplies (CMP201D)
- Optional 8-CH adjacent OAM/OFDM/ 8VSB/ISDB-Tmodulation module on front panel (CMP203)
- 4 GbE Ethernet ports on front panel (2 for management, 2 for lP stream in/out)
- Supports 120 IP inputs and 120 IP outputs, SPTS/MPTS
- 6 slots for hot-swappable functional modules on rear panel
- Supports up to 24 HDMI HD encoding
- Supports up to 48 CVBS SD encoding
- Supports reception of up to 24 coax channel frequencies(DVBC, DVB-T/T2,DVB-S/S2/S2x,ISDB-T, 8VSB)
- User-friendly web-interface setup and module upgrades
- Simple installation and easy configuration
APPLICATION
| Chassis |
| 6 slots for hot-swappable modules |
| Dual redundant power supplies |
| Service level multiplexing |
|
4x Gigabit RJ45 (embedded): MPEG TS over UDP/RTP multicast/unicast SPTS/MPTS Max.120 inputs and 120 outputs
|
| Physical & Environment | |
| Input Voltage | 100~240 VAC/50-60Hz |
| Power | 120W |
| Chassis Dimension (W x Hx D) |
120mm x 177mm x 345mm (Wx Hx D),1 RU
|
| Operating Temperature | o°℃~50°℃ (32°F ~122°F) |
| Storage Temperature | -10°C~70°C (14°F ~174.2°F) |
| perating Humidity | <95% |
| MTBF | ≥100,000 hours |
| Modules | |
| Receiver | |
| CR2-8VSB-00 | 4 CH, 8VSB receiving module, 4 input connector with 4 tuners. |
| CR2-DVBC-00 | 4 CH, DVB-C Annex A/C/DTMB receiving module, 1 RF input connector with 4 tuners, with 2 CI slots |
| CR2-DVBC-01 | 4 CH, DVB-C Annex B/ISDB-T receiving module, 1 RF input connector with 4 tuners, with 2 CI slots |
| CR2-DVBT2CI-00 | 4 CH, DVB-T/T2 receiving module, 1 input connector with 4 tuners, with 2 CI slots |
| CR2-DVBS2CI-00 | 4 CH, DVB-S2 receiving module, 2 input connectors (LNB1&LNB2) each with 2 transponders receiving, w/ 2 CI slots, Independent power supplies for each LNB. |
| CR2-DVBS2FTA-00 | 4 CH, DVB-S2 receiving module, 4 input connectors (LNB1/2/3/4). Independent power supplies for LNB-1 & LNB-3 only. |
| CR2-DVBS2FTA-00A | 8 CH DVB-S2 receiving module, another interface card added on CR-DVBS2FTA-00, each module occupies 2 slots |
| CR2-DVBS2FTA-01 | 4 CH, DVB-S2/S2X receiving module (QPSK, 8PSK, 16APSK, 32APSK, 64APSK), 4 input connectors (LNB1/2/3/4). Independent power supplies for each LNB. |
| Encoder | |
| CE2-CVBS-00 | 6 CH, CVBS encoding module, supports H.264/MPEG-2 SD, MPEG1L2 |
| CE2-CVBS-R01 | 8 CH, CVBS encoding module, supports H.264, MPEG1L2 |
| CE2-CVBS-R01A | 16 CH, CVBS encoding module, supports H.264, MPEG1L2 |
| CE2-CVBS-03 | 2 CH, CVBS encoding module, supports H.264/MPEG-2 SD, CC, MPEG1L2 (support), AC3 (support), AAC (support) |
| CE2-HDMI-00 | 4 CH, HDMI encoding module, supports H.264 HD/SD, MPEG-2 SD, MPEG1L2 (support), AAC (optional), AC3 (optional) |
| CE2-HDMI-02 | 2 CH, HDMI encoding module , supports H.264/MPEG-2 HD/SD, MPEG1L2 (support), AAC (support), AC3 (support), supports CC input |
| CE2-HDMI-02C | 2 CH, HDMI/Component encoding module , supports H.264/MPEG-2 HD/SD, MPEG1L2 (support), AAC (support), AC3 (support), supports CC and analog audio input |
| CE2-SDI-01 | 2 CH, SDI encoding module , supports H.264/MPEG-2 HD/SD, MPEG1L2 (support), AAC (support), AC3 (support), supports CC, NO analog audio input |
|
CE2-HDMI-S04 |
4 CH, HDMI encoding module , supports H.264 HD/SD, MPEG1L2 (support), AAC (optional), AC3 (optional),support OSD subtitle, logo picture and QR Code overlay |
| CE2-HDMI-S05 | 4 CH, HDMI encoding module , supports H.264/H.265 HD/SD, MPEG1L2 (support), AAC (optional), AC3 (optional), support OSD subtitle, logo picture and QR Code overlay |
| CE2-HDMI-05A | 8 CH, HDMI encoding module , supports H.264/H.265 HD/SD, MPEG1L2 (support), AAC (optional), AC3 (optional) support OSD subtitle* (see note on the right), logo picture and QR Code overlay |
| CE2-HDMI-06 | 4 CH, HDMI encoding module , supports H.264/H.265 HD/SD, MPEG1L2 (support), AAC (optional), AC3 (optional) support OSD subtitle, logo picture and QR Code overlay, de-interlacing |
| Modulator | |
| CM2-QAMA-R00 | 16 CH, QAM modulator module, Annex A/C, non-adjacent output |
| CM2-QAMB-R00 | 16 CH, QAM modulator module, Annex B, non-adjacent output |
| CM2-QAMA-R01 | 4 CH, QAM A/C modulator module |
| CM2-QAMB-R01 | 4 CH, QAM B modulator module |
| CM2-OFDM-R01 | 4 CH, ODFM modulator module |
| CM2-QAMA-R01A | 8 CH, QAM A/C modulator module |
| CM2-QAMB-R01A | 8 CH, QAM B modulator module |
| CM2-OFDM-R01A | 8 CH, ODFM modulator module |
| CM2-ISDBT-R01 | 4 CH, ISDBT modulator module |
| CM2-ISDBT-R01A | 8 CH, ISDBT modulator module |
| CM2-8VSB-R01 | 4 CH, 8VSB(ATSC) modulator module |
| CM2-8VSB-R01A | 8 CH, 8VSB(ATSC) modulator module |
| CM2-MOD-02 | 32 CH QAM-A non-adjacent modulator, 2 x 1000M RJ45 (256 in), 1 x RJ45 for CAS scrambling, 1 x RF out, supports independent QAM constellation |
| Others | |
| CP2-EAS-00 | EAS processing module, supports EAS triggerring by analogue EAS input and digital EAS input, MPEG1L2 (support), AAC (support), AC3 (support) |
| CP2-CAM-00 | Descrambling module, 2 x CI slots, supports all mainstream CAM cards and CAS descrambling |
| CP2-EIT-00 | EIT multiplexing module, 32 x TS inputs and 16 x TS outputs |
*All the modules are not listed here due to page limitation, please find us if you can't find or need more details.
