Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Star Wealth
-
Model Number:
-
L929
-
Wifi:
-
802.11 B/g /n
-
Noise Fgure:
-
0.3dB
-
Output Freq:
-
950 - 2150 MHz
-
Conversion Gain:
-
65dB
-
Support:
-
universal, high gain, waterproof
-
Color:
-
Grey, Orange, Red, others
-
Input Freq:
-
10.7 - 12.75 GHz
-
Gain Flatness:
-
±0.5dB/26MHz
-
Output VSWR:
-
2.0:1
Quick Details
-
FTA(Free To Air):
-
Yes
-
Type:
-
Digital
-
High Definition:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Star Wealth
-
Model Number:
-
L929
-
Wifi:
-
802.11 B/g /n
-
Noise Fgure:
-
0.3dB
-
Output Freq:
-
950 - 2150 MHz
-
Conversion Gain:
-
65dB
-
Support:
-
universal, high gain, waterproof
-
Color:
-
Grey, Orange, Red, others
-
Input Freq:
-
10.7 - 12.75 GHz
-
Gain Flatness:
-
±0.5dB/26MHz
-
Output VSWR:
-
2.0:1

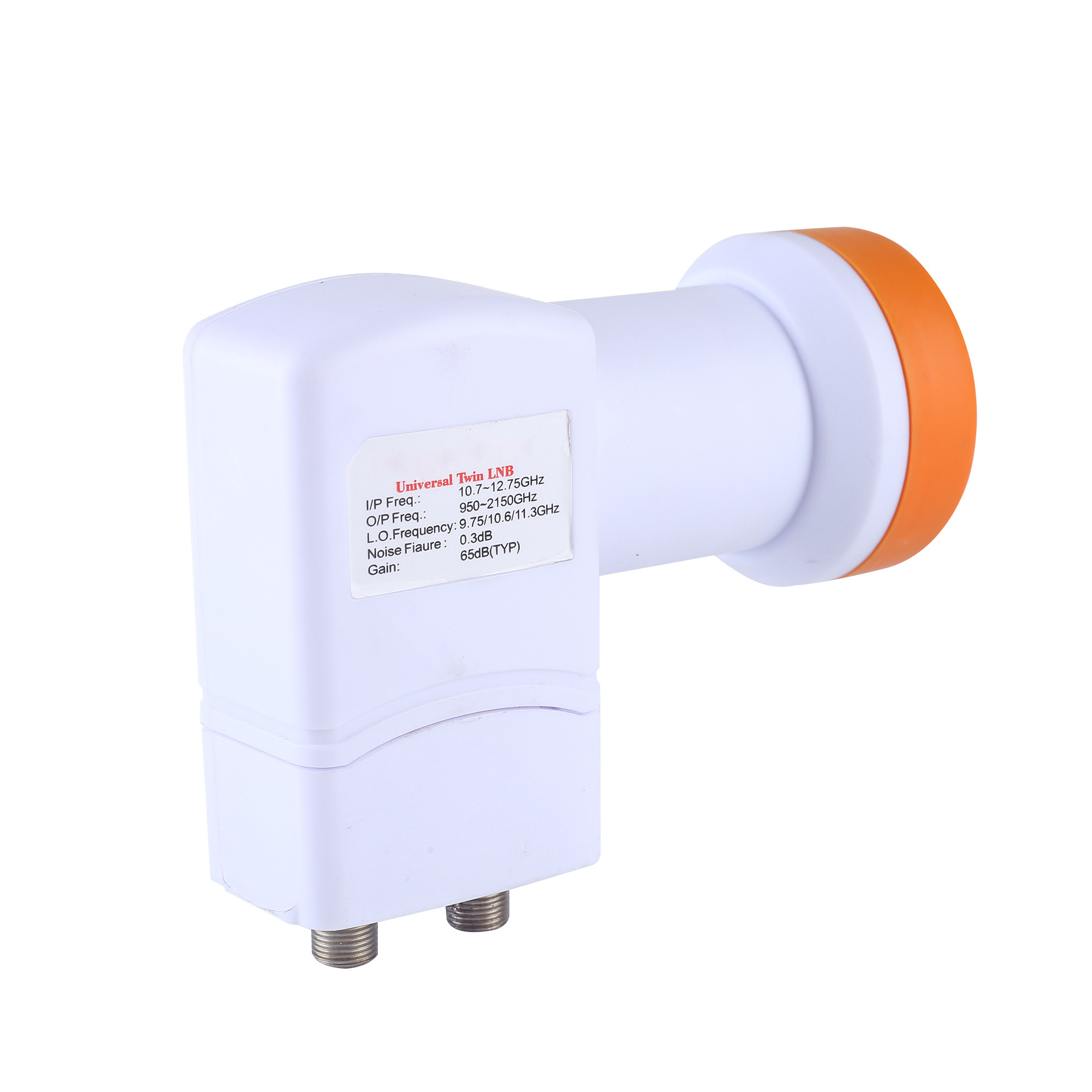

Product Description
Specification
|
item
|
value
|
|
Private Mold
|
NO
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Star Wealth
|
|
Model Number
|
L929
|
|
FTA(Free To Air)
|
Yes
|
|
Type
|
Digital
|
|
High Definition
|
Yes
|
|
Type
|
Digital
|
|
Wifi
|
802.11 B/g /n
|
|
Noise Fgure
|
0.3dB
|
|
Output Freq
|
950 - 2150 MHz
|
|
Conversion Gain
|
65dB
|
|
Support
|
universal, high gain, waterproof
|
|
Color
|
Grey, Orange, Red, others
|
|
Input Freq
|
10.7 - 12.75 GHz
|
|
Gain Flatness
|
±0.5dB/26MHz
|
|
Output VSWR
|
2.0:1
|
|
Item
|
Specification
|
Item
|
Specification
|
|
Input Frequency Range
|
Low Band:10.70~11.70GHz
High Band:11.70~12.75GHz |
L.O. Phase Noise
|
-50dBc/Hz@1KHz
-75dBc/Hz@10KHz -95dBc/Hz@100KHz |
|
Output Frequency Range
|
Low Band:950~1950MHz
High Band:1100~2150MHz |
Image Rejection
|
40dB(Min.)
|
|
Noise Figure
|
Low Band: 0.6 dB (Typ.)
High Band: 0.6 dB (Typ.) |
Output VSWR
|
2.0:1 (Max.)
|
|
Conversion Gain
|
65dB (Typ.)
|
Output Power
|
0dBm (Min.)
(at 1dB gain compression) |
|
Gain Flatness
|
±0.5dB/26MHz
|
Connector Type
|
75Ω Female Connector
|
|
Cross POL. Isolation
|
25 dB (Typ.)
|
DC Current Consumption
|
80mA (Typ.)
|
|
L.O. Frequency
|
9.75 GHz
10.6 GHz 11.3 GHz |
Low/High Band Switching
|
Low Band: 0 Hz
High Band:22KHz±4KHz |
|
L.O. Frequency Stability
|
±1.0 MHz (Max.)@+25°C
±2.0 MHz (Max.)@30°C~+70°C |
POL. Switching Voltage
|
10.5~14.0 V @VP
16.0~20.0 V @HP |
|
Support
|
universal, high gain, waterproof
|
Operating Temperature
|
-30°C~+70°C
|
