Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FTL
-
Voltage:
-
380/400/415/440/480V
-
Dimension(L*W*H):
-
different
-
Weight:
-
5 kg
-
Marketing Type:
-
Hot Product 2021
-
keywords:
-
Asbestos tile production line
-
name:
-
Asbestos tile production machinery
-
Application:
-
building roof
-
Raw material:
-
fiber,cement, quartz,sand
-
Gross building areas:
-
2000 square meters
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
Russia/Kazakhstan/Uzbekistan/Egypt
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Cement
-
Production Capacity:
-
30 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FTL
-
Voltage:
-
380/400/415/440/480V
-
Dimension(L*W*H):
-
different
-
Weight:
-
5 kg
-
Marketing Type:
-
Hot Product 2021
-
keywords:
-
Asbestos tile production line
-
name:
-
Asbestos tile production machinery
-
Application:
-
building roof
-
Raw material:
-
fiber,cement, quartz,sand
-
Gross building areas:
-
2000 square meters
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
Russia/Kazakhstan/Uzbekistan/Egypt

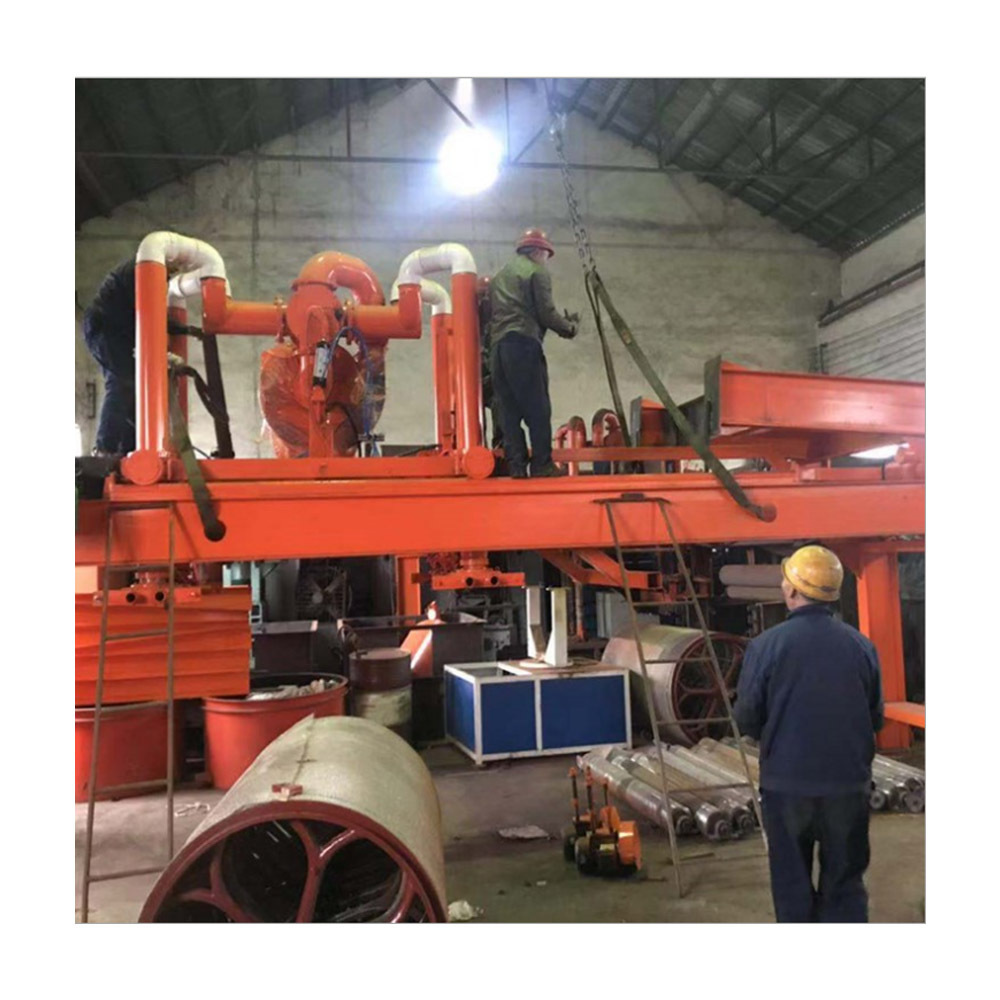

Asbestos tile production line machinery from FTL Machinery
The new type of cement asbestos tile is reasonable in design, technology and set of machines are equipped with dense electronic monitors, automatic transmission of signal transmission limits, pressure wave forming,high degree of automation, stable operation and high product qualification rate, which is the ideal
fiber cement tile production line
.
1. Copying machine: Separate the water in the raw pulpI the pulp to the fabric feeder for dewateringat the same time, and then make a blank dline speed 24m
2. Cloth beater: used to remove the excess water from the slurry, and at the same time clean the impurities on the surface of the felt after the material is removed.
3. the blanking machine: the rough tile removed from the blanking machine is sent to the direct press(speed
4. Blanking machine: The rough tiles removed from the blanking machine are sent to a direct press (linespeed 16m/min). 5. Direct pressing machine: press the asbestos tile blank (line speed 20m/ min
6. Withholding machine: press the asbestos tiles after pressing(line speed 12m/min)
7.Edge trimming machine: According to the customers needs, the tile edge after cutting should be cut off (line speed 6m/min)
8. Tile suction machine: pile the tile after production(line speed 6m/min)
9. Stirrer: Stir the raw materials in proportion after adding water.
10. Fan: cooperate with tile suction machine to provide air flow to tile suction machine.
11. Vacuum machine: Cooperate with the cloth maker to absorb the moisture in the felt.
12. Gas-water separation: a container for separating water(capacity 2m3)
13. Conveyor: The length of conveying asbestos tiles is 10m (line speed 24m/min).
|
Model |
Length |
width |
thickness |
wave H eight |
weight |
|
Small wave tiles |
1800 |
720 |
5/6 |
14.5 |
13/15 |
|
Medium wave tiles |
1800 |
740 |
6/6.5 |
33 |
15/16 |
|
Big wave tiles |
2440 |
1050 |
6/8 |
33 |
30/35 |
FTL M achine list :
|
Main Equipment |
Quantity |
|
Clean water can |
1 pc |
|
Recyling water can |
1 pc |
|
Mixing system |
1 set |
|
Conveying system |
1 set |
|
Slurry pump |
2sets |
|
Net cage |
3sets |
|
Tile adobe forming machine |
1 set |
|
Carring tile adobe system |
1 set |
|
BLV |
1 set |
|
Power box |
3 sets |
|
Air compresser |
1pc |
|
Air stock |
1pc |
FTL Tile Adobe forming part :
|
Name |
Remark |
quantity |
|
Clean water can |
They are made of 3.8mm steel. Size:6m*3.2m.Vertical ladder and working table |
1 |
|
recycling water can |
1 |
|
|
Mixing systm |
Rolling mixer and paste maker with 5inch and 6inch water pump. 2 motors with 11kw &1 motor with 5kw |
1 |
|
Conveying system |
Diameter 1.9m Height:2.52m Motor:3kw |
1 |
|
Slurry pump |
2 |
|
|
Net cage |
Large volume. 6 Motors with 1.5kw and 6grades to drive 6 fans. The net cage is not easy to block material. Easy operation |
4 |
|
Tile adobe formingmachine |
15Kw motor. Rollers are one iron and one rubber |
1 |
