Peak Power Watts: 550WMaximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kg
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
United Energy
-
Model Number:
-
UE5KW-OFF
-
Output Voltage (V):
-
220v, 110-250V
-
Output Frequency:
-
50 60HZ
-
Work Time (h):
-
Depend On Sunshine Duration
-
Mounting System:
-
Pitched Roof (STD)
-
Wave Form:
-
Pure Sine Wave
-
AC Voltage:
-
110-250V(Adjustable)
-
Peak Power:
-
6000W
-
Battery Voltage:
-
48VDC
-
Communication:
-
RS485
-
OEM/ODM:
-
Accepatable
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
United Energy
-
Model Number:
-
UE5KW-OFF
-
Output Voltage (V):
-
220v, 110-250V
-
Output Frequency:
-
50 60HZ
-
Work Time (h):
-
Depend On Sunshine Duration
-
Mounting System:
-
Pitched Roof (STD)
-
Wave Form:
-
Pure Sine Wave
-
AC Voltage:
-
110-250V(Adjustable)
-
Peak Power:
-
6000W
-
Battery Voltage:
-
48VDC
-
Communication:
-
RS485
-
OEM/ODM:
-
Accepatable
Products Description
Warranty
What's Included:
|
Components
|
UE1KW-OFF
|
UE2KW-OFF
|
UE3KW-OFF
|
UE4KW-OFF
|
UE5KW-OFF
|
||||
|
340W Mono Solar Panel
|
2 Piece
|
4 Piece
|
6 Piece
|
9 Piece
|
12 Piece
|
||||
|
MC4 Y Branch
|
1 Pair
|
1 Pair
|
2 Pair
|
/
|
/
|
||||
|
Combiner Box
|
/
|
/
|
/
|
3 in 1 out
|
3 in 1 out
|
||||
|
Off Grid Inverter
|
1KW
|
2KW
|
3KW
|
4KW
|
5KW
|
||||
|
12V 200AH Battery
|
1 Piece
|
2 Piece
|
4 Piece
|
4 Piece
|
8 Piece
|
||||
|
DC Cable
|
100 Meters
|
100 Meters
|
200 Meters
|
200 Meters
|
200 Meters
|
||||
|
MC4 Connector
|
4 Pair
|
4 Pair
|
6 Pair
|
6 Pair
|
8 Pair
|
||||
|
Mounting System
|
Standards Pitched Roof ( Customized Optional)
|
|
|
|
|
||||
|
Model
|
UE-3KW-HY
|
UE-5KW-HY
|
UE-10KW-HY
|
||
|
Half Cut Mono 550W Solar Panel
|
6 Pieces
|
10 Pieces
|
21 Pieces
|
||
|
DC Disconnect Switch
|
1 Piece
|
2 Pieces
|
3 Pieces
|
||
|
Hybrid Inverter
|
UE-3K-SG04LP1-EU
|
UE-5K-SG03LP1-EU
|
UE-10K-SG04LP3-EU
|
||
|
Wall Mounted LiFePo4 Battery
|
5Kwh
|
5Kwh
|
10Kwh
|
||
|
DC Cable 4mm2
|
100 meter
|
200 meter
|
400 meter
|
||
|
AC Disconnect Switch
|
1 Piece
|
1 Piece
|
1 Piece
|
||
|
MC4 Connector
|
10 Pairs
|
10 Pairs
|
10 Pairs
|
||
|
Mounting System
|
Customized Product Based On Installation Roof/Ground
|
|
|
||
|
PV Installation Tools
|
1 Set
|
|
|
||
|
Model
|
UE-15KW-HY
|
UE-20KW-HY
|
UE-30KW-HY
|
||
|
Half Cut Mono 550W Solar Panel
|
30 Pieces
|
42 Pieces
|
63 Pieces
|
||
|
DC Disconnect Switch
|
4 Pieces
|
6 Pieces
|
9 Pieces
|
||
|
Hybrid Inverter
|
UE-5K-SG03LP1-EU 3 Pieces
|
UE-10K-SG04LP3-EU 2 Pieces
|
UE-10K-SG04LP3-EU 3 Pieces
|
||
|
Wall Mounted LiFePo4 Battery
|
15Kwh
|
20Kwh
|
30Kwh
|
||
|
DC Cable 4mm2
|
600 meter
|
800 meter
|
1000 meter
|
||
|
Mounting System
|
Customized Product Based On Installation Roof/Ground
|
|
|
||
|
PV Installation Tools
|
1 Set
|
|
|
||
Note: Product dimensions and physical appearance in this data sheet are nominal. United Energy reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.

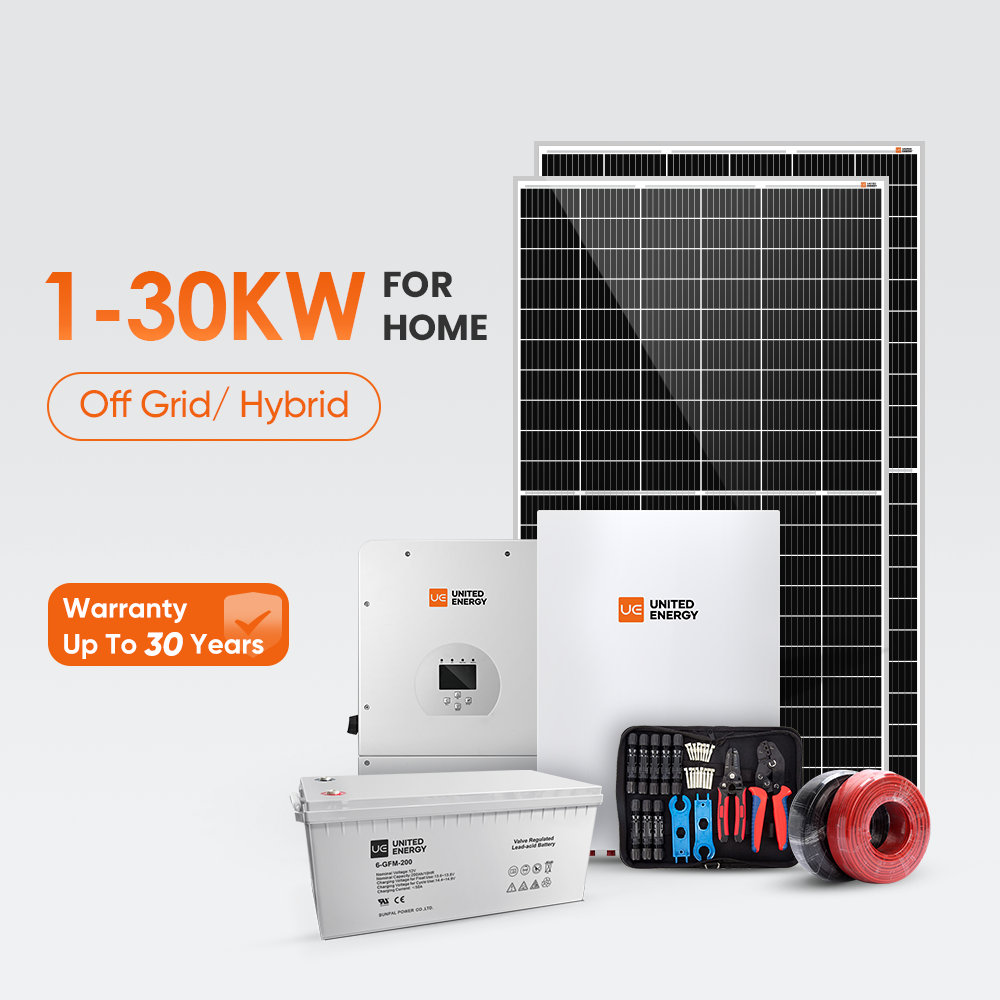

System Components
Half Cut Mono 550W Solar Panel
Off Grid Inverter
The Off Grid Inverter is Integrated with a MPPT Solar Charger Controller,a High Frequency Pure Sine Wave Inverter and a UPS
Fuction Module in One Machine.Remote Monitoring is Available by Using Wifi Monitoring Kit.
Fuction Module in One Machine.Remote Monitoring is Available by Using Wifi Monitoring Kit.
Hybrid Solar Inverter
48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging.
Max.charging/discharging current of 240A
Max.10pcs parallel
DC couple and AC couple to retrofit existing solar system
Max.charging/discharging current of 240A
Max.10pcs parallel
DC couple and AC couple to retrofit existing solar system
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Wall Mounted LiFePo4 Battery
15-20 years design life. Up to 6000 + cycle Ilfe
Wall mount or ground stack brick, simply connecting to inverter
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.
Wall mount or ground stack brick, simply connecting to inverter
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.
Lead Acid GEL Battery
Capacity(kWh): 2.4
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 200
Depth of Discharge: 70%
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 200
Depth of Discharge: 70%
DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 600VDC/1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,32A
Rated Voltage: 600VDC/1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,32A
DC & AC Disconnect Switch
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
