- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sanyuantang
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
110 kg
-
Product name:
-
Screw Conveyor
-
Belt material:
-
Stainless steel
-
Certification:
-
CE ISO
-
Color:
-
Customers' Requirement
-
Feature:
-
Simple Operation
-
Capacity:
-
Defferent Models
-
After Warranty Service::
-
Video technical support, Online support
-
Hopper conveyor::
-
110L
-
Voltage:
-
380V,50Hz,3phase
Quick Details
-
Power:
-
0.55-2.2kw
-
Warranty:
-
1 Year
-
Width or Diameter:
-
89-165mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sanyuantang
-
Marketing Type:
-
Hot Product 2023
-
Weight (KG):
-
110 kg
-
Product name:
-
Screw Conveyor
-
Belt material:
-
Stainless steel
-
Certification:
-
CE ISO
-
Color:
-
Customers' Requirement
-
Feature:
-
Simple Operation
-
Capacity:
-
Defferent Models
-
After Warranty Service::
-
Video technical support, Online support
-
Hopper conveyor::
-
110L
-
Voltage:
-
380V,50Hz,3phase
Product Description

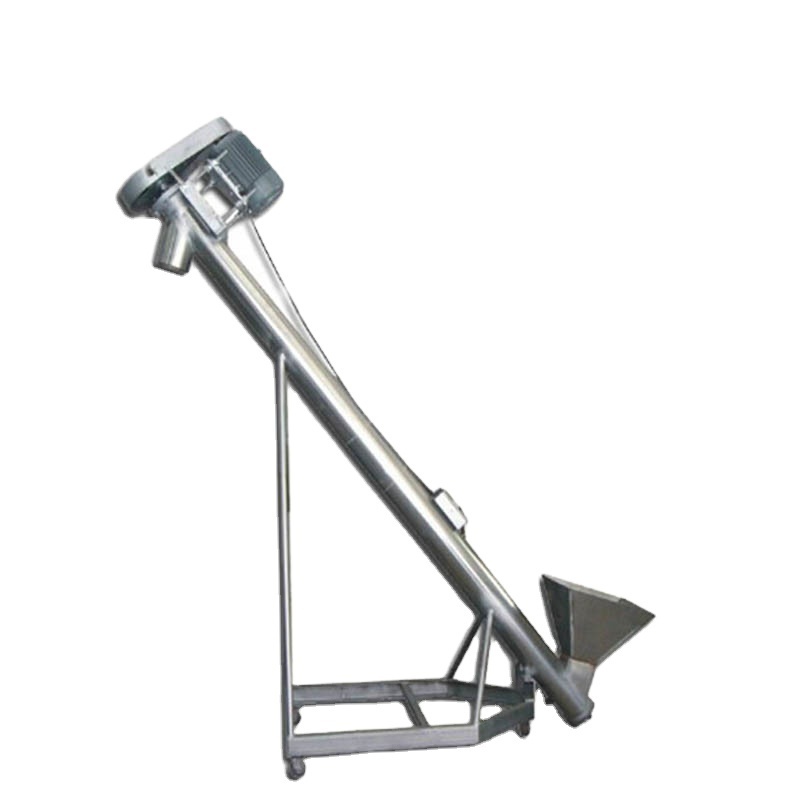

Automatic screw feeder machine screw conveyor PVC powder auger conveyor machine with hopper
♦ Inclined screw conveyors are spiral bulk material transportation systems that convey raw ingredients to and from processing
areas that are on different levels of a facility. These conveyors are slanted at different angles to economically elevate and
convey materials up and down floors. They require ample space and an increased amount of power to lift the material, depending on
the steepness of the angle.
♦ Screw conveyor, also called spiral conveyor,auger conveyor,screw feeder,vibrating conveyor,flexible screw conveyor ,etc.
♦ Screw conveyor is designed to transport series materials from one place to another.. Combined with the vibrating screen of our
company, it can do material situation tracing, also can be used separately.
♦ This kind screw conveyor can be used to transport series materials of powder, granular or small block in industry, food and
environment protection industries, medicine etc.
areas that are on different levels of a facility. These conveyors are slanted at different angles to economically elevate and
convey materials up and down floors. They require ample space and an increased amount of power to lift the material, depending on
the steepness of the angle.
♦ Screw conveyor, also called spiral conveyor,auger conveyor,screw feeder,vibrating conveyor,flexible screw conveyor ,etc.
♦ Screw conveyor is designed to transport series materials from one place to another.. Combined with the vibrating screen of our
company, it can do material situation tracing, also can be used separately.
♦ This kind screw conveyor can be used to transport series materials of powder, granular or small block in industry, food and
environment protection industries, medicine etc.
Screw conveyor application
Food Processing Pharmaceutical
Powder and energy Petrochemical
Chemicals Mining and minerals
Feed processing Plastic
Powder and energy Petrochemical
Chemicals Mining and minerals
Feed processing Plastic
Specification
|
Screw conveyor
|
100
|
160
|
200
|
250
|
315
|
400
|
|
Screw diameter(mm)
|
100
|
160
|
200
|
250
|
315
|
400
|
|
Screw pitch(mm)
|
100
|
160
|
200
|
250
|
315
|
355
|
|
Rotating speed(r/min)
|
100
|
120
|
90
|
90
|
75
|
75
|
|
Production capacity Qφ=0.33(m3/h)
|
2.2
|
7.6
|
11
|
22
|
36.4
|
66.1
|
|
Power Pd 1=10m(kw)
|
1.1
|
1.5
|
2.2
|
2.4
|
3.2
|
5.1
|
Specification only for your reference, size variable as per customer's request.
Screw conveyor features
1.The machine is especially suitable for conveying all kinds of powdery material,also can be used for conveying all kinds of granular or flake materials.
2.Using unique designed stainless steel screw-shaped blade;
3.High conveying capacity,safe and reliable operation,easy to disassemble and clean;
4.Good adaptability and long service life;
5.Good sealing quality and rigidity;
6.Can be customized as customer requests;
7.Can add vibrator for speed up the feeding speed.
2.Using unique designed stainless steel screw-shaped blade;
3.High conveying capacity,safe and reliable operation,easy to disassemble and clean;
4.Good adaptability and long service life;
5.Good sealing quality and rigidity;
6.Can be customized as customer requests;
7.Can add vibrator for speed up the feeding speed.
Product Shows
Screw conveyor working with other machine
Packing & Delivery
Packing:Outer packing is plywood case, which is up to the international standard. Inner packing is moisture-proof and water-proof
membrane. All of packages are wrapped by 0.5mm steel belt to further strengthen, which can ensure machine safe during shipping.
Shipment:10-15 working days after receiving your payment.
membrane. All of packages are wrapped by 0.5mm steel belt to further strengthen, which can ensure machine safe during shipping.
Shipment:10-15 working days after receiving your payment.
