Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIDING
-
Model Number:
-
JINDIAO-DCEW01
-
Product name:
-
Car Winch
-
Speed:
-
5m/min
-
Control method:
-
Pendant +Remote(Customized)
-
Motor:
-
12V / 24v DC
-
Material:
-
Steel
-
Type:
-
Electric Winch Wire Rope
-
Certification:
-
CE
Quick Details
-
Power Source:
-
Electric
-
Application:
-
ATV/UTV
-
Capacity:
-
2000lbs-12000lbs, 2000lbs-12000lbs
-
Warranty:
-
1 year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIDING
-
Model Number:
-
JINDIAO-DCEW01
-
Product name:
-
Car Winch
-
Speed:
-
5m/min
-
Control method:
-
Pendant +Remote(Customized)
-
Motor:
-
12V / 24v DC
-
Material:
-
Steel
-
Type:
-
Electric Winch Wire Rope
-
Certification:
-
CE
Products Description

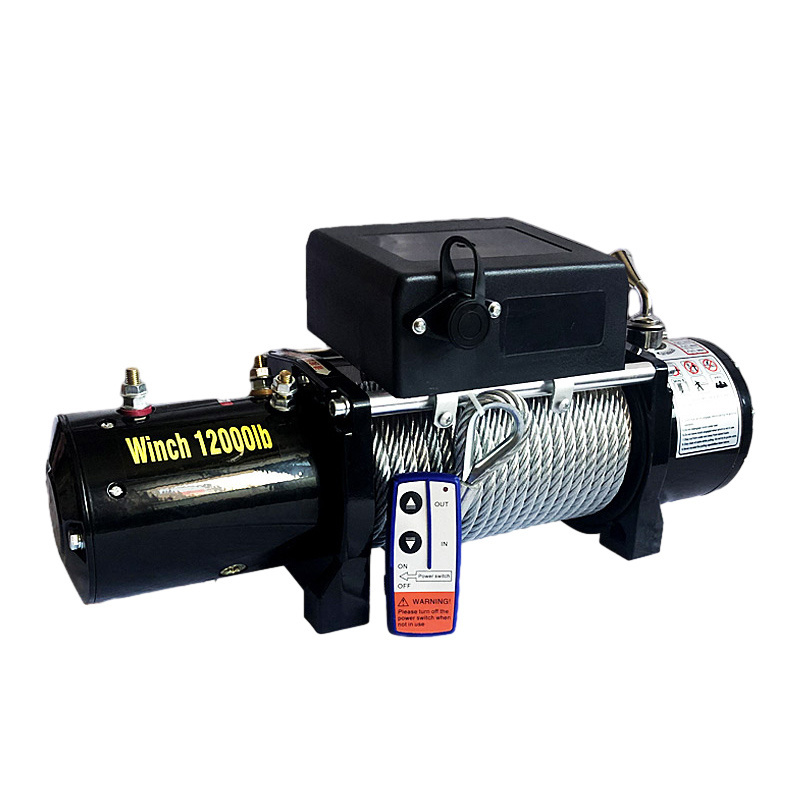

DC 12V/24V Car Winch
Specifications:
Capacity: 2000lbs,3000lbs,3500lbs,4000lbs,4500lbs,6000lbs,9500lbs,12000lbs,13500lbs
Sling type: wire rope, synthetic rope(custom)
Voltage: DC 12v or 24v
DC 12V Car Winch, mini 12v electric winch Introduction:
DC 12V/24V Car Winch is the most common winch, driven by vehicle's own power system. It works in such a way that converting automobile engines power into electricity power to drive the motors and drag noose. It enlarges the output power by the inside planetary reducer to achieve deceleration & torsion enhancement and pull cargo.
Product Features:
It is generally installed in the middle of the front car and connected with the car frame, exposed or hidden in the bumper.Winch traction is valued by pound which can be converted to ton or kilogram. Do not exceed the rated traction.
The more cycles of winch wire rope on the reel, the less pull the outer cycle to bear.
The best advantage is that it can be normally used in condition of vehicle switch off while others can not.
Easy and multi-position installed, fast movable.
High density & high strength wire rope, durable and firm.
How to Choose Winch:
Make sure winch pull is 1.5 times of full loaded vehicle. A 8000-10000 pound winch is at least needed when vehicle is full loaded around 6000 pound.
Please chat with the sales for price and details , 7/24 hours online service for you !
Product Paramenters
|
Model
|
2000 lbs
|
3000 lbs
|
3500 lbs
|
4000 lbs
|
|
Voltage
|
12V/24V
|
12V/24V
|
12V/24V
|
12V/24V
|
|
Horizontal traction
|
900kg
|
1300kg
|
1500kg
|
1800kg
|
|
Control mode
|
Manual
|
Manual
|
Manual
|
Manual
|
|
No load speed
|
5m/min
|
5m/min
|
5m/min
|
5m/min
|
|
Motor material
|
All copper motor
|
All copper motor
|
All copper motor
|
All copper motor
|
|
Overall dimension
|
300*100*105 mm
|
300*100*105 mm
|
320*120*112 mm
|
340*120*112 mm
|
|
Model
|
4500 lbs
|
6000 lbs
|
9500 lbs
|
12000 lbs
|
|
Voltage
|
12V/24V
|
12V/24V
|
12V/24V
|
12V/24V
|
|
Horizontal traction
|
2025kg
|
2700kg
|
4300kg
|
5400kg
|
|
Control mode
|
Manual/wireless
|
Manual/wireless
|
Manual / wireless
|
Manual/wireless
|
|
No load speed
|
5m/min
|
5m/min
|
5m/min
|
5m/min
|
|
Motor material
|
All copper motor
|
All copper motor
|
All copper motor
|
All copper motor
|
|
Overall dimension
|
360*120*112 mm
|
430*145*230 mm
|
530*145*230 mm
|
530*145*230 mm
|
