Quick Details
-
Product Weight（kg）:
-
6
-
Lamp Luminous Flux(lm):
-
30000
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-30-60
-
Working Lifetime(Hour):
-
30000
-
IP Rating:
-
65
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
RFFL-23
-
Housing:
-
PC Cover+Aluminum Housing
-
Power available:
-
100w/ 150w / 200w
-
Mounting Type:
-
Surface Mounted.Ceiling
-
LED Module Quantity:
-
50pcs/module
-
Lumen Efficiency:
-
100lm/w
-
Lens angle:
-
60/90 degree
-
Application2:
-
High Bay Lighting Locations
-
Housing Color:
-
white
-
IP Grade:
-
IP 65 Waterproof
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Warranty(Year):
-
2-Year
-
Power Supply:
-
AC
-
Product Weight（kg）:
-
6
-
Lamp Luminous Flux(lm):
-
30000
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-30-60
-
Working Lifetime(Hour):
-
30000
-
IP Rating:
-
65
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
RFFL-23
-
Housing:
-
PC Cover+Aluminum Housing
-
Power available:
-
100w/ 150w / 200w
-
Mounting Type:
-
Surface Mounted.Ceiling
-
LED Module Quantity:
-
50pcs/module
-
Lumen Efficiency:
-
100lm/w
-
Lens angle:
-
60/90 degree
-
Application2:
-
High Bay Lighting Locations
-
Housing Color:
-
white
-
IP Grade:
-
IP 65 Waterproof
Company video
Products Description
|
Item No.
|
RFFL-23
|
|
|
||
|
Power
|
100W
|
150W
|
200W
|
||
|
Material
|
Aluminum+pc
|
Aluminum+pc
|
Aluminum+pc
|
||
|
Size
|
280×350×114mm
|
366×350×114mm
|
452×350×114mm
|
||
|
LED
|
SMD3030 100pcs
|
SMD3030 150pcs
|
SMD3030 200pcs
|
||
|
Hole Size
|
225*350mm
|
334*350mm
|
420*350mm
|
||
|
Driver
|
AC85-265V 2 years warranty.
3 years/ 5 years contact for details
|
AC85-265V
2 years warranty
|
AC85-265V
2 years warranty
|
||
|
Color Temperature
|
2700-6500K
|
2700-6500K
|
2700-6500K
|
||
|
Efficiency
|
100-130lm/w
|
100-130lm/w
|
100-130lm/w
|
||
|
CRI
|
Ra>80
|
Ra>80
|
Ra>80
|
||
|
IP
|
IP65
|
IP65
|
IP65
|
||
Details Images

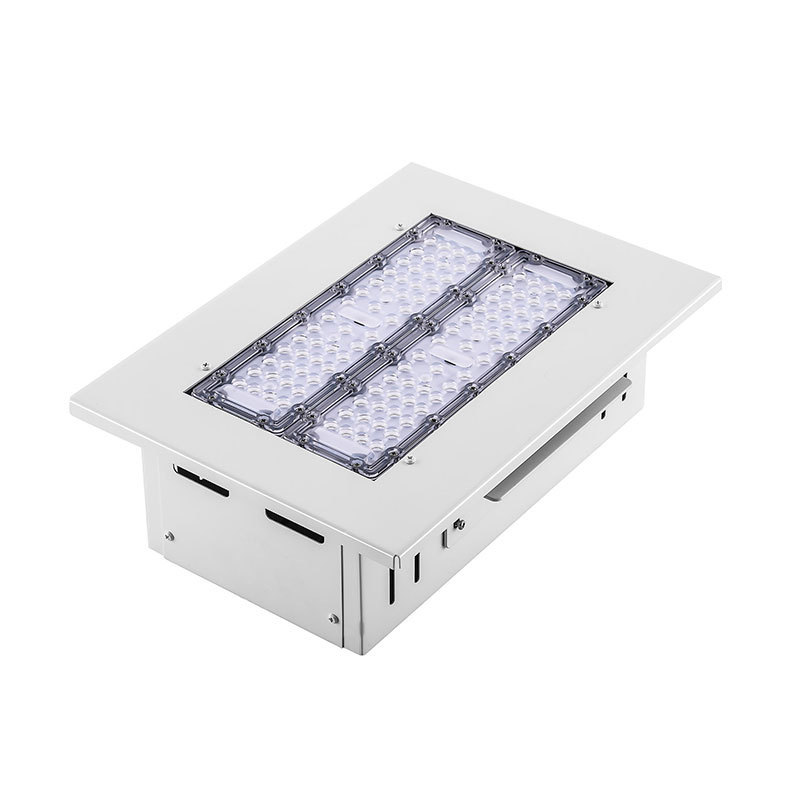

Aluminum housing heatsink, PC cover with lens 60°/90°/140*70°, which can customized for 3 years, 5 years quality.
SKD
parts are available for you. If you required more details, please contact us.
