Quick Details
-
Power:
-
22000W
-
Dimension(L*W*H):
-
5200mm*1900mm*2100mm
-
Weight:
-
5239 kg
-
Marketing Type:
-
Hot Product
-
paper layer:
-
3-26layers
-
inner diameter:
-
30-200(mm)
-
thickness:
-
2-15(mm)
-
speed:
-
0-35(m/min)
-
Fixed length mode:
-
Numerical control
-
Cutting method:
-
Circular knife CNC automatic
-
Gluing method:
-
Double-sided glue
-
way to control:
-
numerical control
-
Linear guide:
-
square
-
Drive hub:
-
four-wheel drive
Quick Details
-
Production Capacity:
-
0-35m/min
-
Place of Origin:
-
Hebei, China
-
Voltage:
-
330V/220V
-
Power:
-
22000W
-
Dimension(L*W*H):
-
5200mm*1900mm*2100mm
-
Weight:
-
5239 kg
-
Marketing Type:
-
Hot Product
-
paper layer:
-
3-26layers
-
inner diameter:
-
30-200(mm)
-
thickness:
-
2-15(mm)
-
speed:
-
0-35(m/min)
-
Fixed length mode:
-
Numerical control
-
Cutting method:
-
Circular knife CNC automatic
-
Gluing method:
-
Double-sided glue
-
way to control:
-
numerical control
-
Linear guide:
-
square
-
Drive hub:
-
four-wheel drive

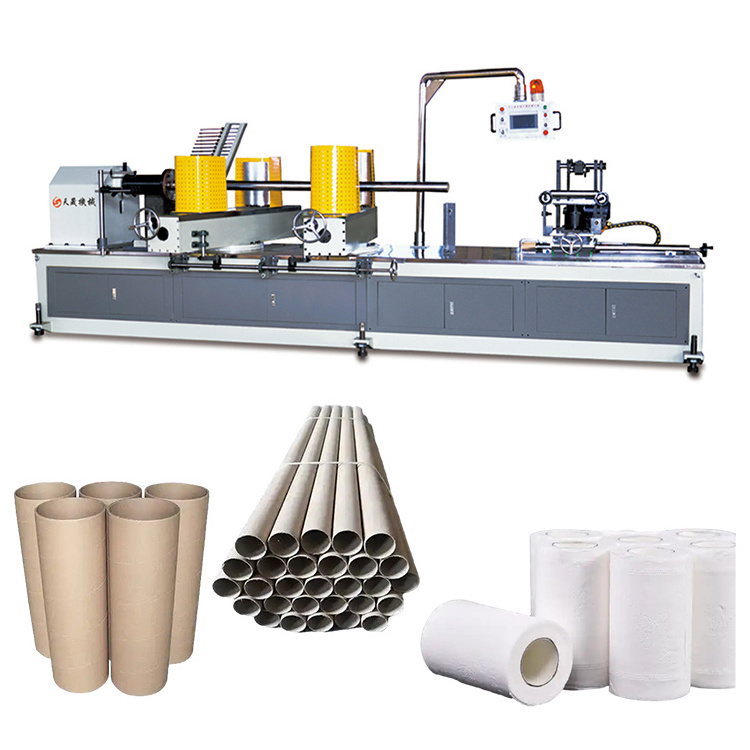

Automatic stable property paper tube core cutter cutting machine four-head CNC paper tube forming machine
Four-head CNC Paper Tube Machine
Details Images
Paper tube machine adopts paper tube in the form of drum, through electronic control operating system control, the host consist of paper frame, glue, drum, photoelectric tube cutting, and tube under a series of process, in the production of paper tube thickness, tube cutting length can be adjusted freely according to user requirement, speed is fast, simple and convenient procedure, high automation.
Finished Product Display
Product Paramenters
Technical Parameter
|
Paper layer
|
3-26layers
|
|
Inner diameter
|
30-200（mm）
|
|
Thickness
|
2-15（mm）
|
|
Speed
|
0-35（m/min）
|
|
Fixed length mode
|
Numerical control
|
|
Winding head
|
Four head
|
|
Cutting method
|
Circular knife CNC automatic
|
|
Gluing method
|
Double-sided glue
|
|
Way to control
|
Numerical control
|
|
Input voltage
|
380V/220V
|
|
Number of operators
|
1-3
|
|
Total weight
|
5239kg
|
Control System
|
Main engine power
|
22kw
|
|
Electrical components
|
Omron/Chint
|
|
Button/emergency stop
|
Siemens
|
|
Frequency converter
|
Robicon/ERG
|
|
Signal element
|
Omron/Pefun
|
|
Pneumatic Components
|
Airtac/tianao/detai/chengdi
|
|
PLC controller
|
Special products
|
|
HMI
|
Special products
|
Configuration Device
|
Host size
|
5200mm*1900mm*2100mm
|
|
Area size
|
20000mm*9000mm
|
|
Upper paper shelf
|
Right-angle belt hoisting
|
|
Glue frame
|
Automatic gluing
|
|
Bottom paper break
|
Automatic alarm
|
|
Bottom surface paper
|
Stainless steel pot device
|
|
Paper guide wheel
|
Stainless steel pipe
|
|
Host table
|
Stainless steel plate
|
|
Host angle
|
Electric adjustment
|
|
Core winding die fixing
|
Flange
|
|
Mandrel
|
1
|
|
Tube belt
|
2 pieces
|
|
Unloading rack
|
Stainless steel automatic
|
|
application tools
|
1set
|
Our company is located in Fucheng County, Hengshui City, Hebei Province, bordering Dongguang County, Cangzhou City, within the Bohai Economic Circle. Our company covers an area of 20,000 square meters, with a workshop and office area of 12,000 square meters. It is an enterprise integrating design, manufacturing, sales and service. The main products of our company are: base paper slitting machine, automatic paper tube machine, numerical control paper corner protector, numerical control precision cutting machine and paper tube rear-end finishing equipment. At present, the products have been sold all over the country. At the same time, we have negotiated and cooperated with domestic and foreign trade import and export companies. The products have been exported to Europe, America, Central and South Asia, West Asia, the Middle East, Africa, Russia, Ukraine and other countries.
The credit rating of the enterprise is "AAA", and it has become the "technical research base" of many well-known colleges and universities. The company has passed ISO9001 quality management system certification and has formal product "corporate standards". It is a well-known CCTV broadcasting company and has With more than 20 national patent certificates, in 2017, it was recognized as a "High-tech Enterprise in Hebei Province" by the Hebei Department of Science and Technology.
The company has always been adhering to the work policy of "Customer First, Quality First" and "Elaborate Design, Careful Production, and Whole-hearted Service". With advanced technology, exquisite craftsmanship, perfect testing methods and excellent after-sales service, the company wholeheartedly welcomes domestic and foreign customers to visit, guide and negotiate in person.
Q1 Are you a Factory manufacturer or a Trader Company?
A: Our factory manufacturer has 20 years of production experience and has our trading company.
Q2 How long is the production time?
A: 30 days after receiving the deposit.
Q3 What is your payment method?
A:T/T and L/C.
