Quick Details
-
Brand Name:
-
Cosuper
-
Model Number:
-
PWM-10A
-
Work Time (h):
-
16
-
Max PV Power:
-
-
-
Max PV Voltage:
-
-
-
Certificate:
-
ROHS
-
Warranty:
-
18 months
-
Rated Current:
-
10A
-
Battery Voltage:
-
12/24VDC Auto
-
Absorb Charge Voltage:
-
14.9±0.3 /2*(14.9)±0.3 /4*(14.4)±0.3VDC
-
Float Charge Voltage:
-
13.8±0.3 /2*(13.4)±0.3 /4*(13.4)±0.3VDC
-
Protection:
-
Over Charge and Discharge, Short Circuit , Reverse Polarity
-
Under Voltage Warning:
-
11.5±0.3 /2*(11.5)±0.3 /4*(11.5)±0.3VDC
-
Under Voltage Protection:
-
10.1±0.3 /2*(10.1)±0.3 /4*(10.1)±0.3VDC
-
No load current:
-
<10mA
-
Control Mode:
-
3 stage MPPT charge mode
-
Product name:
-
10A PWM solar charge controller
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Cosuper
-
Model Number:
-
PWM-10A
-
Work Time (h):
-
16
-
Max PV Power:
-
-
-
Max PV Voltage:
-
-
-
Certificate:
-
ROHS
-
Warranty:
-
18 months
-
Rated Current:
-
10A
-
Battery Voltage:
-
12/24VDC Auto
-
Absorb Charge Voltage:
-
14.9±0.3 /2*(14.9)±0.3 /4*(14.4)±0.3VDC
-
Float Charge Voltage:
-
13.8±0.3 /2*(13.4)±0.3 /4*(13.4)±0.3VDC
-
Protection:
-
Over Charge and Discharge, Short Circuit , Reverse Polarity
-
Under Voltage Warning:
-
11.5±0.3 /2*(11.5)±0.3 /4*(11.5)±0.3VDC
-
Under Voltage Protection:
-
10.1±0.3 /2*(10.1)±0.3 /4*(10.1)±0.3VDC
-
No load current:
-
<10mA
-
Control Mode:
-
3 stage MPPT charge mode
-
Product name:
-
10A PWM solar charge controller

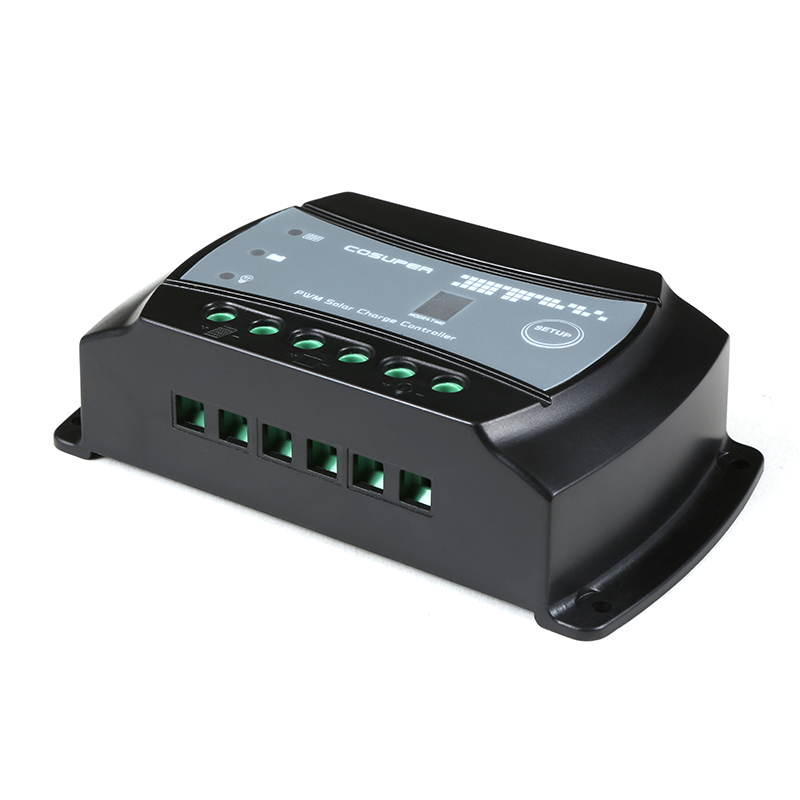

12v 24v pwm solar panel charge controller 10a
PWM Solar Power Controller Features
1.12V/24V auto recognition
2.LED indicators for displaying the solar charging& battery loading status
3.Four working modes available for different loading and working circumstance
4. Working status, and parameter would be auto-recorded if power failure happens, no need to reset the controller, it's easy to operate
5.Various kinds of electronics protection for solar panel, loading, and controller
6.Adopts the latest solar charge algorithm for battery, of which service life can be extended by protecting the battery from vulcanization, through auto equalization charge once a week
12v 24v 10A PWM solar power controller Specification
|
Models |
CPW-10C |
|
Rated Charge/Load Current |
10A |
|
Battery Voltage |
12V/24VDC |
|
Absorb Charge Voltage |
14.9±0.3 /2*(14.9)±0.3 |
|
Float Charge Voltage |
13.8±0.3 /2*(13.8)±0.3 |
|
Recommended PV Open Circuit |
18/36VDC |
|
Recommended PV Open Circuit Voltage (Approx) |
55VDC |
|
Automatic Protection |
Over Charge and Discharge, Short Circuit, Reverse Polarity |
|
Under Voltage Warning |
11.5±0.3 /2*(11.5)±0.3 |
|
Under Voltage Protection |
11.1±0.3 /2*(11.1)±0.3 |
|
Charge Status Indicator Lights |
Green-Ready, Yellow-charging |
|
Light Control DC Output |
Auto night switch on and day switch off with timing control |
|
No Load Current |
≤10mA |
|
Operation Temp |
-35~85℃ |
|
Control Mode |
3 stage PWM charge mode |
|
Cooling |
Natural (no fan) |
|
Light Control DC Output |
Yes |
|
Time Control DC Output |
Yes |
|
Temperature Compensation |
option |
|
Certification |
CE |
|
Weight (kg) |
0.12 |
|
Size (mm) |
126*70*37 |
Shipping way: By express, air, sea according to customer's requirements.
1)Any inquiries will be replied within 24 hours
2)Well-trained and experienced staffs to answer all your enquires in fluent English.
OEM and ODM available:
1)Print logo on our products.
2)Customized Specification.
3)Customized Color Package box.
4)Any your idea on our products, we can help you to design and put it into production
Before and After-sale service:
1)All products will have been quality checked strictly in the test house before packing
2)All products will be well packed before shipping
3)All our products have 2-5 years warranty
and we are sure the product will be free from maintenance within the warranty period
Payment term:
T/T, Western Union, Paypal, MoneyGram, L/C are available.
Shipping and delivery:
1)We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS and so on. You can also choose your own shipping forwarder.
2)normal products need About 15-25 days, customized products need about 30-45 days.
