Quick Details
-
Brand Name:
-
YILINK
-
Model Number:
-
YL5090100 2P
-
Battery Size:
-
10.5*90.5*103mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
210
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Cycle life:
-
≥500 Times
-
Working voltage range:
-
3.0~4.2V
-
Discharge temperature:
-
-20~60℃
-
Charge temperature:
-
0~45℃
-
Wires length:
-
50mm
-
Connector part number:
-
customize
-
Assemble type:
-
Lipo battery pack with PCM
-
Cover:
-
Blue PVC
-
Warranty:
-
12 months
Quick Details
-
Storage Type:
-
Room temperature
-
Anode Material:
-
NCM
-
Application:
-
Consumer Electronics
-
Brand Name:
-
YILINK
-
Model Number:
-
YL5090100 2P
-
Battery Size:
-
10.5*90.5*103mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
210
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Cycle life:
-
≥500 Times
-
Working voltage range:
-
3.0~4.2V
-
Discharge temperature:
-
-20~60℃
-
Charge temperature:
-
0~45℃
-
Wires length:
-
50mm
-
Connector part number:
-
customize
-
Assemble type:
-
Lipo battery pack with PCM
-
Cover:
-
Blue PVC
-
Warranty:
-
12 months

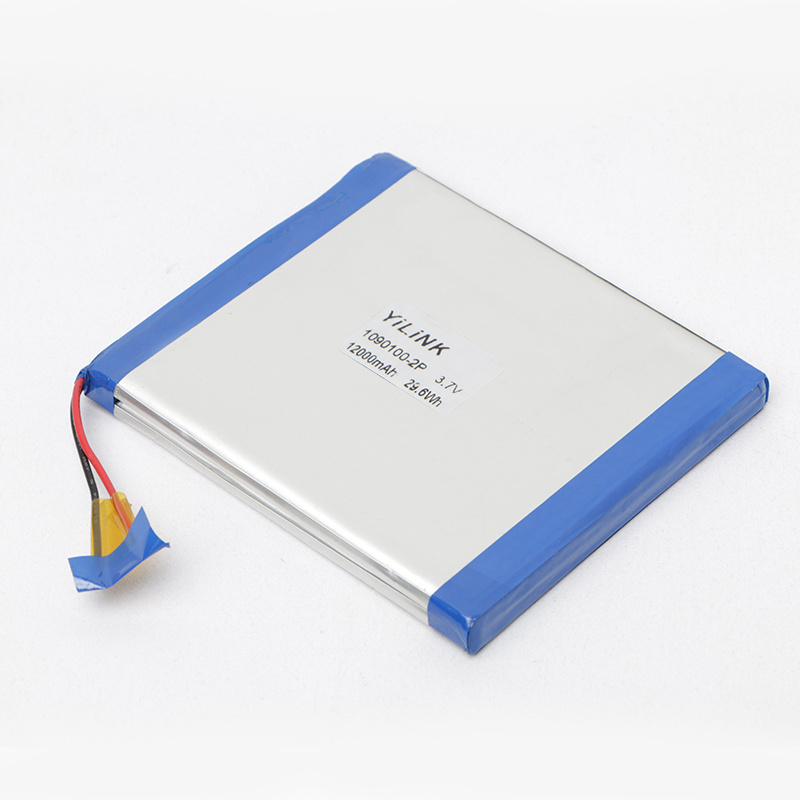

High capacity lipo battery 1090100 1S2P Lithium polymer battery 12000mAh 3.7v lipo battery
Li Polymer Battery Specification:
| Battery Type | Lipo Battery | |
| PCM | Yes | |
| Accembly Composed Type | 1S2P / 2 cells | |
| Nominal Capacity | 12000 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2 V | |
| Cut-off Voltage | 3.0 V | |
| Standard Charge Current | 2400 mA | @0.2C charge |
| Max. Charge Current | 6000 mA | @0.5C charge |
| Standard Discharge Current | 2400 mA | @0.2C discharge |
| Max. Discharge Current | 6000 mA | @0.5C discharge |
| Resistance | <40 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 210 g | |
| Dimensions(T.W.L.) | 10.5*90.5*103 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10 ~ 40℃ | Less than one month |
| 0 ~ 30℃ | More than one month | |
| Protection Function(PCM) |
Over Charge, Over Discharge,
Over Load, Short Circuit |
|
| Warranty | 12 Months | |
OEM and ODM
* Large order :Can print your LOGO on the products and packages, and accept small changes on the products.
* Sample :Standard package without YILINK words
Advantages
- Superior storage characteristics;
- Stable discharge under various environmental temperature conditions, High temperature performance.
- Lighter weight smaller size.
- Large capacity and good shock resistance,excellent cost performance and long cycle life.
- Strong over-discharge resistance and charge retention.
- Environmental friendly.
- High operating voltage of 3.7V and energy density.
- High discharge rate for more powerful devices.
- Most safest no explosion no fire.
