Quick Details
-
Power:
-
24V/4.5KW, 2.2kw/380v
-
Table Size:
-
2400mm*1170mm
-
Overall Dimensions:
-
2250*1350*1530mm
-
Weight:
-
500 kg
-
Marketing Type:
-
New Product 2024
-
Machine driving speed (pick-up state):
-
0.8km/h
-
Machine speed (closed state):
-
3.5km/h
-
Minimum turning radius (outer wheel):
-
2.20m
-
Overall height (fence fold) (E):
-
1580m
-
Overall height (fence not folded):
-
2280mm
-
Surface preparation:
-
Phosphate acid washing and spray plastic treatment
-
Safety guardrail:
-
Use a 30mm * 30mm square tube
-
Mesa:
-
Lay the anti-skid pattern board at 3mm
-
Product name:
-
electric scissor lifts self moving aerial work platform
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SKOTT
-
Power:
-
24V/4.5KW, 2.2kw/380v
-
Table Size:
-
2400mm*1170mm
-
Overall Dimensions:
-
2250*1350*1530mm
-
Weight:
-
500 kg
-
Marketing Type:
-
New Product 2024
-
Machine driving speed (pick-up state):
-
0.8km/h
-
Machine speed (closed state):
-
3.5km/h
-
Minimum turning radius (outer wheel):
-
2.20m
-
Overall height (fence fold) (E):
-
1580m
-
Overall height (fence not folded):
-
2280mm
-
Surface preparation:
-
Phosphate acid washing and spray plastic treatment
-
Safety guardrail:
-
Use a 30mm * 30mm square tube
-
Mesa:
-
Lay the anti-skid pattern board at 3mm
-
Product name:
-
electric scissor lifts self moving aerial work platform

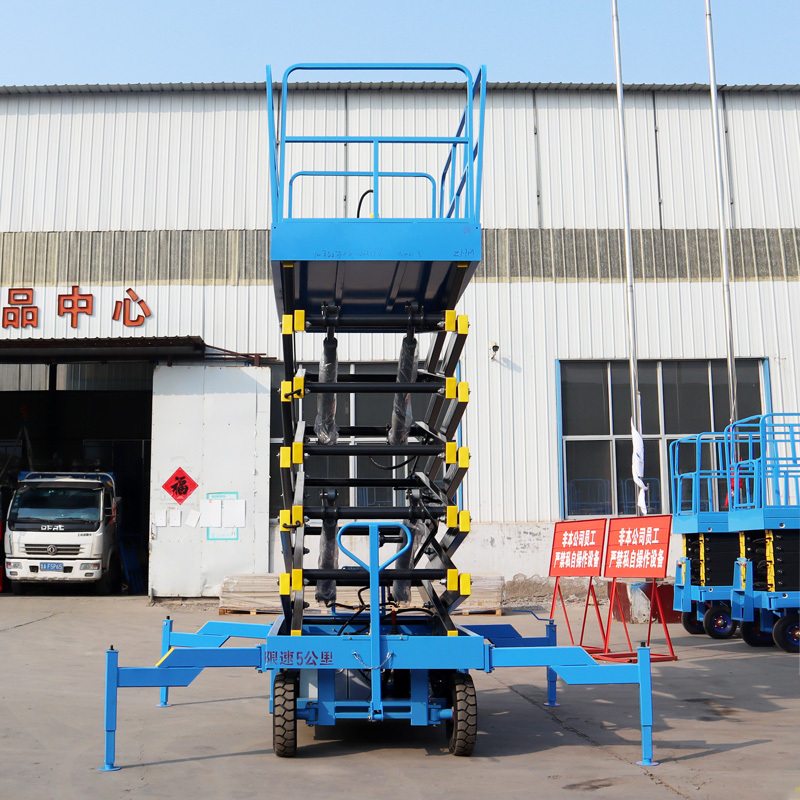

Mobile scissor lifting platform adopts high-strength manganese steel structure,four wheels are easy to move, the work surface is wide, and the bearing capacity is high. It can support multiple people to work at the same time. It makes aerial work safer and more efficient.
Products Description
Product performance:
Control form:
Upper and lower controls. Control part of the installation of safety emergency stop, in order to maximize the protection of property and personal safety. A 36V safety control voltage is used for each operation part
Pump station:
Special hydraulic pump station lifting operation platform. With the emergency drop valve, the overflow valve can prevent the high system pressure and play the protection function
Rust removal treatment:
Thblasting, sandblasting and rust treatment; remove the corrosion and splash of steel structure members to uneven the surface of steel members and increase the adhesion of powder
Spray treatment:
Use electrostatic powder spraying; excellent coating appearance quality, strong adhesion and mechanical strength, high color brightness, lasting fading.
