Vacuum table, white light lamps under the table for printing quality inspection.
Three photocell sensors, one for sensor marks, two on the right & left of screen clamps for web guide.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Lingtie
-
Dimensions(L*W*H):
-
L2950*W1160*H1865mm
-
Weight:
-
1700 KG
-
Certification:
-
ISO 9001
-
Max. Print Area:
-
500*700 mm
-
Screen Frame Area:
-
800*1100 mm
-
Printing material thickness:
-
0.02-0.5 mm
-
Printing Speed:
-
20-50t/min
-
Machine Configuration:
-
Optional Configurations
-
Heating mode of oven:
-
Hot air drying or UV
-
Used for:
-
Polyester film
-
Efficiency:
-
High Efficiency, Saving Manpower
-
Life:
-
More than 20 years
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Lingtie
-
Dimensions(L*W*H):
-
L2950*W1160*H1865mm
-
Weight:
-
1700 KG
-
Certification:
-
ISO 9001
-
Max. Print Area:
-
500*700 mm
-
Screen Frame Area:
-
800*1100 mm
-
Printing material thickness:
-
0.02-0.5 mm
-
Printing Speed:
-
20-50t/min
-
Machine Configuration:
-
Optional Configurations
-
Heating mode of oven:
-
Hot air drying or UV
-
Used for:
-
Polyester film
-
Efficiency:
-
High Efficiency, Saving Manpower
-
Life:
-
More than 20 years
Product Description
Japan brand servo motors to ensure precision and stability.
Japan brand PLC and frequency converter for machine control.
English touch screen control panel.
English touch screen control panel.
5) Printing materials:
PVC, PET,PP, PC, PE, BOPP etc all kinds of films, various of nameplate for electronic appliances, membrane switches, panels, soft circuit board, IMD, IML, FPC, rubber vulcanization, heat transfer films, non-woven fabric, color labels for cars, water labeling, ceramic decals, thermal transfer paper, leather, electrostatic film, tetoron, coated paper, adhesive sticker and so on. The thinnest which it can be printing is 0.02 mm.

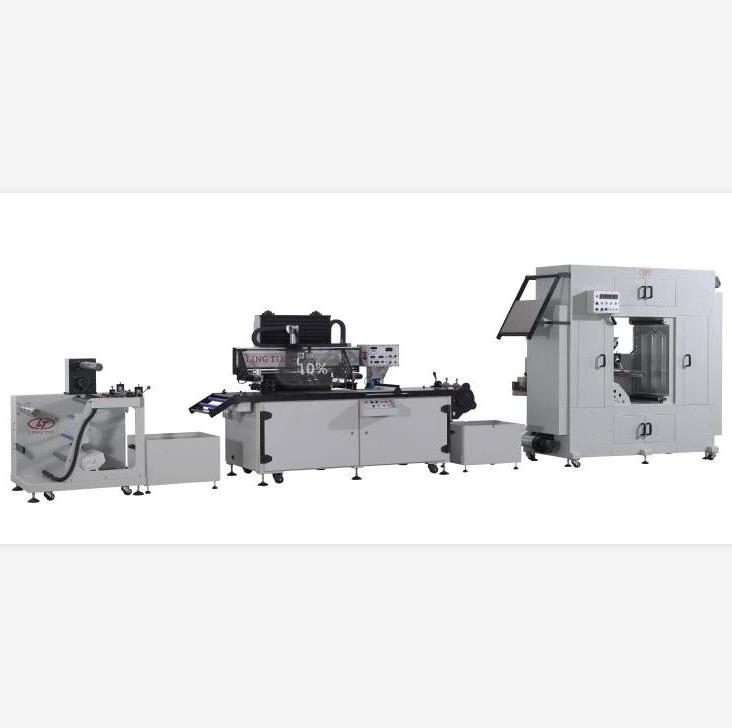

This screen printing machine is composed of a feeder, a printing unit and a hot air dryer.
Detailed Images
|
Name
|
Automatic Roll to Roll Screen Printing Machine
|
|
Model
|
LTA-5070
|
|
Print Area
|
530*750mm
|
|
Print Speed
|
0-2500t/h
|
|
Screen Frame Area
|
800*1100mm
|
|
Max. Paper Width
|
520mm
|
|
Inspection Table Max. Size
|
600*600mm
|
|
Air Source
|
0.4-0.6mpa
|
|
Power
|
1P 220V 3KW/3P 380V 3KW(Customizable)
|
|
Printing Material Thickness
|
0.02-0.5mm
|
|
Weight
|
1700kg
|
|
Machine Size
|
L2950*W1160*H1865mm
|
Automatic Feeder
1. Equipped with photoelectric sensor, the sensitivity of induction is high, can sense any material, automatic control of feeding.
2. Equipped with no material sensor, the machine will automatically stop when there is no material.
Optional functions:
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device
2. Equipped with no material sensor, the machine will automatically stop when there is no material.
Optional functions:
1) Electromagnetic tension control
2) Double-sided dust removal
3) Automatic deviation correction function
4) Electrostatic removal function
5) Tear film function
6) Splice station
7) Anti-scratch device
|
Technical Parameters
|
|
|
|
|
||||
|
Name
|
Automatic feeding machine
|
|
|
|
||||
|
Model
|
LTC-480B
|
LTC-600B
|
LTC-700B
|
LTC-900B
|
||||
|
Max.Wed Width
|
490mm
|
610mm
|
710mm
|
910mm
|
||||
|
Power
|
0.3kw
|
|
|
|
||||
|
Tension
|
≤0.1N
|
|
|
|
||||
|
Weight
|
300kg
|
320kg
|
350kg
|
400kg
|
||||
|
Machine Size
|
L1100*W1000*H1200mm
|
L1100*W1080*H1200mm
|
L1100*W1220*H1200mm
|
L1750*W1250*H1260mm
|
||||
Automatic Printer
1. The printing seat adopts 4-column precise linear guide rail, with high repeatable positioning accuracy, strong stability and
durability.
durability.
2. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
3. Equiped with a man-machine system.
Optional functions:
1) Automatic punching function
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device
3. Equiped with a man-machine system.
Optional functions:
1) Automatic punching function
2) automatic registration function
3) dust elimination roller
4) pneumatic frame fixing function
5) CCD optical device
|
Name
|
Automatic Roll to Roll Screen Printing Machine
|
|
|
||
|
Model
|
LTA-3040
|
LTA-4050
|
LTA-6080
|
||
|
Print Area
|
330*450mm
|
430*550mm
|
630*850mm
|
||
|
Print Speed
|
0-6000t/h
|
0-6000t/h
|
0-2500t/h
|
||
|
Screen Frame Area
|
600*800mm
|
700*900mm
|
900*1200mm
|
||
|
Max. Paper Width
|
320mm
|
420mm
|
620mm
|
||
|
Inspection Table Max. Size
|
400*400mm
|
500*500mm
|
700*800mm
|
||
|
Air Source
|
0.4-0.6mpa
|
0.4-0.6mpa
|
0.4-0.6mpa
|
||
|
Power
|
1P 220V 3KW/3P 380V 3KW(Customizable)
|
|
|
||
|
Printing Material Thickness
|
0.02-0.5mm
|
0.02-0.5mm
|
0.02-0.5mm
|
||
|
Weight
|
1200kg
|
1500kg
|
2000kg
|
||
|
Machine Size
|
L2560*W980*H1865mm
|
L2620*W1100*H1865mm
|
L3150*W1260*H1865mm
|
||
Hot Air Dryer
1. Oven with 4 sides, 4 sides heating, air circulation more smooth.
2. 4 independent digital display temperature controller respectively control the temperature, temperature control is more convenient, more accurate.
2. 4 independent digital display temperature controller respectively control the temperature, temperature control is more convenient, more accurate.
3.
Adopts uniform speed function to ensure that the material stays in the oven at any position for the same time and rewinding speed.
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
Optional functions:
1) Uniform speed device
2) Radiator fan
3) Automatic double-side dust elimination
4) Correction device
5) Anti-pull device
|
Technical Parameters
|
|
|
|
|
||||
|
Name
|
Hot air dryer
|
|
|
|
||||
|
Model
|
LTB-350
|
LTB-460
|
LTB-600
|
LTB-800
|
||||
|
Material quality
|
Baogang-45#steel plate
|
|
|
|
||||
|
Power
|
14kw
|
14kw
|
22kw
|
22kw
|
||||
|
temperature
|
Room temperature-140℃
|
|
|
|
||||
|
Insulation layer thickness
|
50mm
|
50mm
|
50mm
|
100mm
|
||||
|
Temperaturer controller
|
2pcs
|
2pcs
|
4pcs
|
4pcs
|
||||
|
Weight
|
400kg
|
500kg
|
600kg
|
700kg
|
||||
|
Machine Size
|
L1970*W780*H1810mm
|
L1970*W900*H1810mm
|
L2830*W1060*H2150mm
|
L3000*W1260*H2260mm
|
||||
