Quick Details
-
Product name:
-
electronic counter
-
Feed output:
-
DC12V
-
Power consumption:
-
≤4.5VA
-
Control output capacity:
-
3A/250VAC Impedance load
-
Impulse level:
-
Low level ,high level
-
Triggered:
-
Low level active(NPN active)
-
Power supply:
-
85~264VAC
-
Style:
-
Luxury
-
Function:
-
count
-
Work environment:
-
The temperature0~40°C,Relative humidity≤85%
Quick Details
-
Brand Name:
-
AISET/YATAI
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
JC
-
Product name:
-
electronic counter
-
Feed output:
-
DC12V
-
Power consumption:
-
≤4.5VA
-
Control output capacity:
-
3A/250VAC Impedance load
-
Impulse level:
-
Low level ,high level
-
Triggered:
-
Low level active(NPN active)
-
Power supply:
-
85~264VAC
-
Style:
-
Luxury
-
Function:
-
count
-
Work environment:
-
The temperature0~40°C,Relative humidity≤85%
Products Description
|
Selection of counting output method
|
(1) After the count reaches the set value, the control point outputs and continues counting;
(2) After the count reaches the setvalue, the control point outputs and stops counting;
(3) After the count reaches the set value, the display will automatically reset and count again, and the control contact output will be delayed until it stops outputting;
(4) After the count reaches the set value, stop counting, control the contact output to stabilize and delay until the output stops, and the display will automatically reset and count again.
|
|
Input signal and selection
|
(1) Contact signals: relays, travel switches, microswitches, etc., should be selected at low speed (25 times/s)
(2) No contact signal: proximity switch, photoelectric switch, etc., select high speed (5000 times/s) or low speed (25 times/s) according to requirements
(3) Pulse signal: TTL circuit, etc. Pulse voltage: low level V=0-1.3V, high level V,=4.5-30V, according to the requirements, choose high speed (5000 times/s), medium speed (250 times/s), or low speed (30 times/s)
|
|
Installation method
|
Disk mounted or socket mounted installation
|
|
Control output capacity
|
3A/250MAC (resistive load)
|
|
Reset (reset) method
|
When resetting, both the display value and control output are reset
(1) Panel reset (reset) key reset (only in counting state)
(2) Terminal reset (RST/COM pin short circuited)
(3) Single stable delay local automatic reset: 0.1-9.9s selectable
|
|
Counting frequency
|
Temperature 0-50 ° C, relative humidity ≤ 95% (without condensation)
|
|
Reset (reset) method
|
When resetting, the counter is cleared and the contact output is released
(1) Reset the panel reset key and release the contact output
(2) Terminal reset (RST/COM pin short circuited), reset signal pulse width>0.1s
(3) Single stable delay local automatic reset: 0-99.9s selectable
|
|
Installation method
|
5000 times/s at high speed; Medium speed 250 times/s; Low speed 25 times/s (signal duty cycle 1:1)
|
|
Signal input impedance
|
≥5kΩ
|
|
power supply
|
220VAC 50Hz+2% (24VDC or other voltages can be customized)
|
|
Power outage protection code/non protection code can be selected (JC80C - Z only has power outage protection code method) Data
retention time |
>10 years
|
|
consumption
|
≤4.5VA
|
|
work environment
|
Temperature 0-50 ° C, relative humidity ≤ 85%
|
General Description

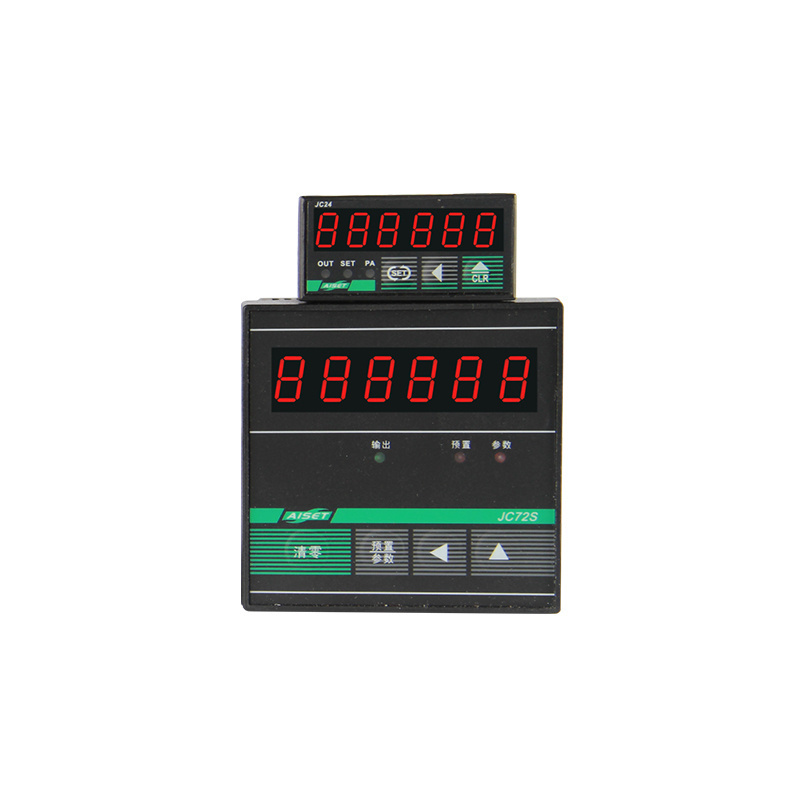

JC series electronic counters are the new generation of preset counters launched by our company. The JC series electronic counter adopts a new high-performance single-chip microcomputer as the main control component, which has advantages such as high accuracy, wide counting range, digital display, touch keyboard operation, permanent power outage data storage, strong anti-interference performance, and beautiful appearance.
Upgrade model: JC-T dual setting electronic counter, with three counting working modes: batch counting, deviation alarm, and dual setting.
Features
1. Using a microcomputer as the main control, the design is as hardware and software oriented as much as possible, so it has high reliability. Data storage adopts E ² PROM, reliable and permanent.
2. Comprehensively adopting hardware and software electromagnetic compatibility design, with strong anti-interference performance.
