Use famous brand terminal blocks with good contact.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
20-80
-
Size:
-
1000*219
-
Power:
-
40-1000
-
Weight (KG):
-
500 kg
-
Water flow rate:
-
4-4403 gpm
-
Reaction Chamber:
-
SS304 or SS316L
-
Working pressure:
-
0.6Mpa
-
Water temperature:
-
from 5°C to 60°C
-
UV lamp life:
-
9000-12000 hours
-
UV wavelength:
-
254nm,185nm
-
Quartz sleeve:
-
UV transmittance≥ 90%
-
Electronic ballast:
-
high power factor 0.98
-
System fault alarm:
-
Included
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PEIDE
-
Material:
-
Stainless steel 304
-
Weight:
-
20-80
-
Size:
-
1000*219
-
Power:
-
40-1000
-
Weight (KG):
-
500 kg
-
Water flow rate:
-
4-4403 gpm
-
Reaction Chamber:
-
SS304 or SS316L
-
Working pressure:
-
0.6Mpa
-
Water temperature:
-
from 5°C to 60°C
-
UV lamp life:
-
9000-12000 hours
-
UV wavelength:
-
254nm,185nm
-
Quartz sleeve:
-
UV transmittance≥ 90%
-
Electronic ballast:
-
high power factor 0.98
-
System fault alarm:
-
Included

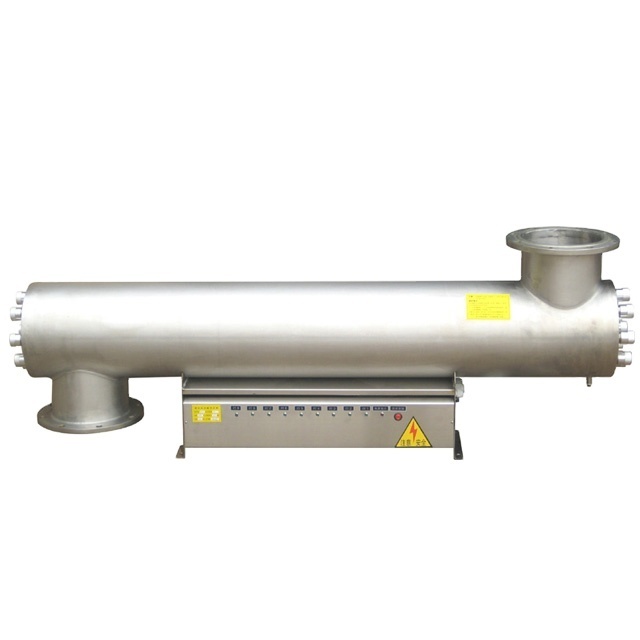

Swimming pool and drinking water UV sterilizer disinfection system
Product Paramenters
|
Flow rate
|
0-5000m
3
/h
|
|
Lamp life
|
9000 hours
|
|
Connection type
|
ANSI150/DIN/JIS
|
|
Material construction
|
SUS304/SUS316l/Duplex stainless steel
|
|
Surface treatment
|
Sand blasting/polishing/electropolished
|
|
Wiper system
|
Electronic or pneumatic wiper system
|
|
Voltage
|
110V-240V/1phase
380-660V/3phase |
|
Frequency
|
50/60Hz
|
|
Operation temperature
|
Max working ambient 45 degree
|
|
Installation
|
Vertical or Horizontal
|
UV disinfection is a broad-spectrum, non-chemical disinfection technology used in commercial, industrial, and healthcare settings for the inactivation of microorganism. UV disinfection is generated in special UV lamps. A watertight quartz tube surrounds each lamp. The liquid to be disinfected is passed through the quartz tubing where gas plasma generated in the lamp emits intensive UV light. When microorganisms are exposed to the germicidal wavelength of UV light, their cellular DNA and RNA absorbs the wavelengths, thereby damaging their nucleic acid. This modifies the DNA of the microorganisms to be unable to divide and reproduce, thus rendering it inactive. UV provides rapid inactivation of bacteria, viruses, yeasts, and molds.
Product Advantages
UV lamp imports from"Light-sources" company,in USA.
Quartz tube transmittance more than 90%.
Auto wiper cleaning system optional.
Equipment Model
|
Model
|
Flow rate
(m
3
/hr)
|
Total power
(W)
|
Inlet/outlet connection
(mm)
|
Reactor size
( length x diameter)
|
|
PDCn-050
|
2
|
40
|
25
|
1000×Φ89
|
|
PDCn-150
|
6
|
80
|
32
|
1000×Φ108
|
|
PDCn-200
|
8
|
120
|
40
|
1000×Φ159
|
|
PDCn-300
|
12
|
160
|
50
|
1000×Φ159
|
|
PDC-360
|
15
|
200
|
65
|
1000×Φ159
|
|
PDC-500
|
20
|
240
|
65
|
1000×Φ219
|
|
PDC-600
|
25
|
280
|
80
|
1000×Φ219
|
|
PDC-700
|
30
|
320
|
100
|
1000×Φ219
|
|
PDC-1000
|
40
|
360
|
100
|
1000×Φ219
|
|
PDC-1300
|
50
|
435
|
125
|
1000×Φ273
|
|
PDC-1500
|
60
|
450
|
150
|
1700×Φ273
|
|
PDC-2000
|
80
|
620
|
150
|
1700×Φ273
|
|
PDC-2500
|
100
|
775
|
150
|
1700×Φ273
|
|
PDC-3000
|
125
|
930
|
150
|
1700×Φ273
|
|
PDC-4000
|
150
|
1240
|
200
|
1700×Φ325
|
|
PDC-5000
|
200
|
1550
|
200
|
1700×Φ377
|
|
PDC-7000
|
300
|
2170
|
250
|
1700×Φ426
|
|
PDC-10K
|
400
|
2520
|
250
|
1700×Φ529
|
Project Reference
Company Exhibition
We actively participate in the organization of exhibitions and actively cooperate with partners from various countries to promote economic development.
1. Q: What terms of payment do you accept?
A: Payment method:T/T,Paypal,western union.
2. Q: What is your delivery time?
A: Delivery term:10-30 working days.
3. Q: What's the minimum quantity of your order?
A: MOQ:1 Set.
4. Q: How long is the warranty?
A: Quality guarantee period:1 year
Production Process
