Quick Details
-
Brand Name:
-
ET
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
KG
-
Structure:
-
Dismountable Modulary Structure
-
Diesel Engine:
-
China brand engine or Cummins Engine
-
Name:
-
Jet Suction Dredger
-
Paint:
-
reputed marine paint
-
Water Flow:
-
0-4500m3/H
-
Driven:
-
Generator Set
-
Work site:
-
River Sea Lake
-
Engine options:
-
Cummins, CAT, Weichai, Jichai, etc.
Quick Details
-
Dredging Depth:
-
15 m, 1-20m
-
Draught:
-
45 inch
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ET
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
KG
-
Structure:
-
Dismountable Modulary Structure
-
Diesel Engine:
-
China brand engine or Cummins Engine
-
Name:
-
Jet Suction Dredger
-
Paint:
-
reputed marine paint
-
Water Flow:
-
0-4500m3/H
-
Driven:
-
Generator Set
-
Work site:
-
River Sea Lake
-
Engine options:
-
Cummins, CAT, Weichai, Jichai, etc.
Product Description

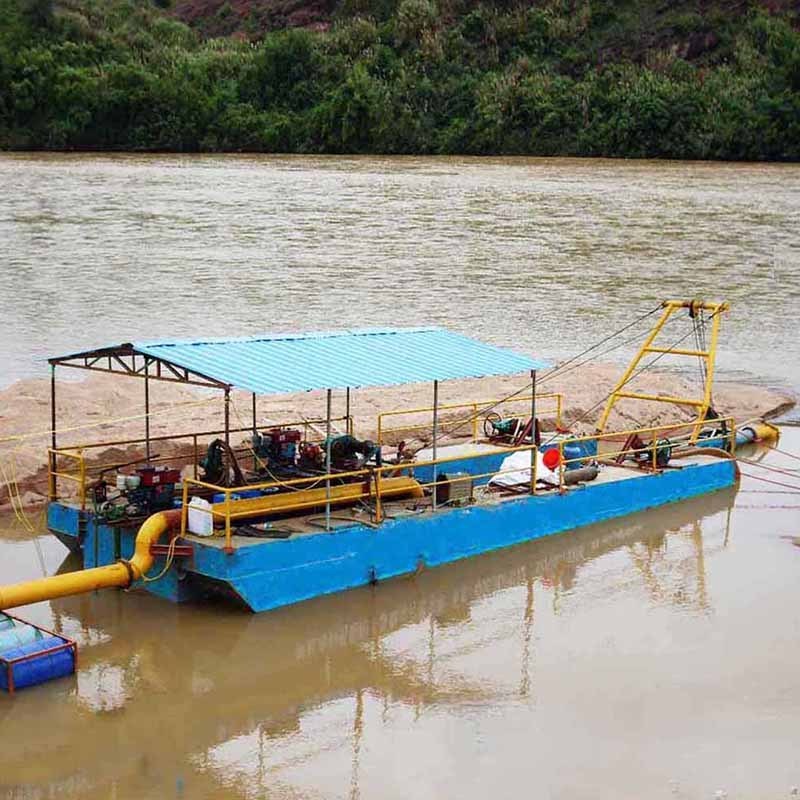

Jet suction sand mining dredger with long discharge distance pumping sand
Specification
|
NO.
|
Item
|
|
JSD200
|
JSD250
|
JSD300
|
JSDD350
|
JSD400
|
|
1
|
Dredger performance
|
Sand capacity(m³/hr)
|
80-110
|
130-260
|
300-360
|
360-390
|
440-520
|
|
Max.dredging depth(m)
|
8
|
Max.discharge distance(m)
|
200-600
|
200-1000
|
200-1500
|
200-1800
|
200-2000
|
|
Suction diameter(mm)
|
150
|
Max.gravel diameter passing through(mm)
|
50-60
|
60-70
|
60-70
|
60-70
|
60-80
|
|
Discharge diameter(mm)
|
15
|
Max.dredging depth(m)
|
15
|
15
|
15
|
20
|
20
|
|
2
|
Dredger body
|
Size(L*W*H)
|
8*1*1.5,2PC
6*2.25*1.5, 1PC |
8*1*1.5,2PC
6*2.25*1.5, 1PC |
11.8*1.1*1.5,2PC
8*2.25*1.8,1PC |
18*1.1*1.5,
2PC |
18*1.1*1.5,
2PC |
|
3
|
Sand suction system
|
Pump size(inch)
|
8/6
|
10/8
|
12/10
|
14/12
|
16/14
|
|
Distance diacharge(m)
|
400
|
Pump flow(m³/hr)
|
410-540
|
620-1450
|
1650-1800
|
1800-1950
|
2200-2600
|
|
|
|
Pump head(m)
|
28-48
|
21-35
|
24-35
|
24-35
|
30-50
|
|
|
|
Pump speed(rpm)
|
730-980
|
730
|
730
|
730
|
550-700
|
|
|
|
Main engine power(kw)
|
132-156
|
180-250
|
250-300
|
300-410
|
410-460
|
|
|
Yes
|
Gearbox
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
|
Include
|
Connect metal base
|
Include
|
Include
|
Include
|
Include
|
Include
|
|
|
Jetting sand up
|
High pressure water pump
|
Jetting sand up
|
Jetting sand up
|
Jetting sand up
|
Jetting sand up
|
Jetting sand up
|
Case
JSD100
Portable jet suction dredger for small scale dredging
JSD200
Hot sale model
JSD400
Double pump and large work load jet suction vessel
Relative Products
Packing & Delivery
Packing and Shipping
Delivery Time:7-30 days, depend on orders;
1,LCL : Wood case or channel steel frame with iron piece
2,FCL : Nude and firmed in container (20GP, 40GP, 40HQ)
Delivery Time:7-30 days, depend on orders;
1,LCL : Wood case or channel steel frame with iron piece
2,FCL : Nude and firmed in container (20GP, 40GP, 40HQ)
