Quick Details
-
Use:
-
Cleaning Grains
-
Production Capacity (kg/h):
-
6000 - 10000
-
Sieve Size(mm):
-
2000x1250
-
Power (kW):
-
0.37x2
-
Weight:
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Rice, flour,feed,fat, and food factory
-
Color:
-
Customized color
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Dingxin
-
Dimension(L*W*H):
-
2700*1500*1600mm
-
Use:
-
Cleaning Grains
-
Production Capacity (kg/h):
-
6000 - 10000
-
Sieve Size(mm):
-
2000x1250
-
Power (kW):
-
0.37x2
-
Weight:
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Rice, flour,feed,fat, and food factory
-
Color:
-
Customized color
-
Certification:
-
CE
Product Overview
T

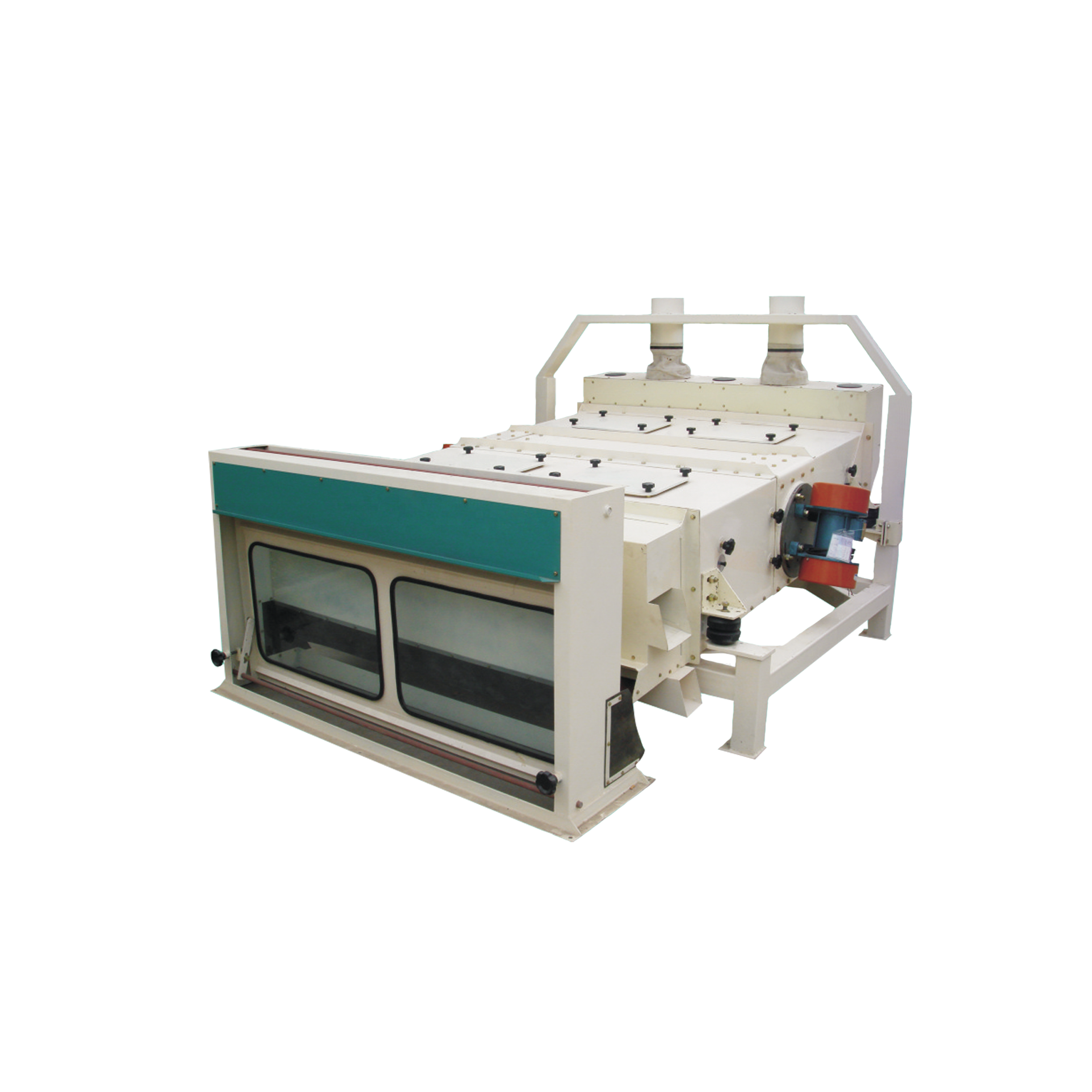

QLZ125 paddy pre cleaner seed cleaner wheat oat paddy seed clean rice paddy cleaner
TQLZ series vibrating sieve machine is suitable for cleaning raw grain for grain processing plant and grain storage. It is also used for granule separation in food and chemical industry.
The sieve of different specification can separate large, small and light impurities (with vertical aspirator) from wheat, paddy ,corn and oil bearing materials.
It is designed with doubledecked sieve, and well sealed. It has much better effects especially for big impurities contained in grain.
FEATURES AT A GLANCE
1. Compact size, well sealed, less dust leakage.
2. Optional vertical aspirator has high efficiency of removing light impurities and dust.
3. High capacity, low noise and low power consumption.
4. Driven by a pair of vibrating motors, the vibrating force, vibrating direction and inclination of sieve cover are adjustable.
5. Dependable quality, good appearance, convenient installation and operation.
6. Sieve pores are difficult to be blocked thanks to automatic cleaning device.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
MODEL
|
CAPACITY(T/H)
|
POWER(KW)
|
NET WEIGHT(KG)
|
DIMENSIONS(M)
|
|
TQLZ80
|
3-5
|
0.22*2
|
650
|
2.5*1.3*1.5
|
|
TQLZ100
|
4-7
|
0.37*2
|
700
|
3*1.5*1.6
|
|
TQLZ125
|
6-10
|
0.37*2
|
800
|
3*1.8*1.6
|
|
TQLZ150
|
8-12
|
0.55*2
|
1000
|
3*2*1.6
|
|
TQLZ180
|
10-18
|
0.55*2
|
1100
|
3*2.3*1.6
|
|
TQLZ200
|
15-25
|
1.1*2
|
1200
|
3*2.5*1.6
|
|
TQLZ250
|
20-35
|
1.1*2
|
1400
|
3*3*1.6
|
