Quick Details
-
Filling Accuracy:
-
1.5
-
Voltage:
-
380
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Chunlai
-
Dimension(L*W*H):
-
3000x650x1650mm
-
Weight:
-
700 KG
-
coffee packing:
-
k-cup filling sealing machine
-
coffee production:
-
Nespresso capsule filling sealing machine
-
coffee caupsule packing:
-
k-cup, Nespresso, Espresso, Lavazza Blue, Lavazza point
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 400BPH, 2000BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Plastic, Paper
-
Filling Material:
-
Milk, Water, Oil, Juice, Powder
-
Filling Accuracy:
-
1.5
-
Voltage:
-
380
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Chunlai
-
Dimension(L*W*H):
-
3000x650x1650mm
-
Weight:
-
700 KG
-
coffee packing:
-
k-cup filling sealing machine
-
coffee production:
-
Nespresso capsule filling sealing machine
-
coffee caupsule packing:
-
k-cup, Nespresso, Espresso, Lavazza Blue, Lavazza point
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE
Product Description

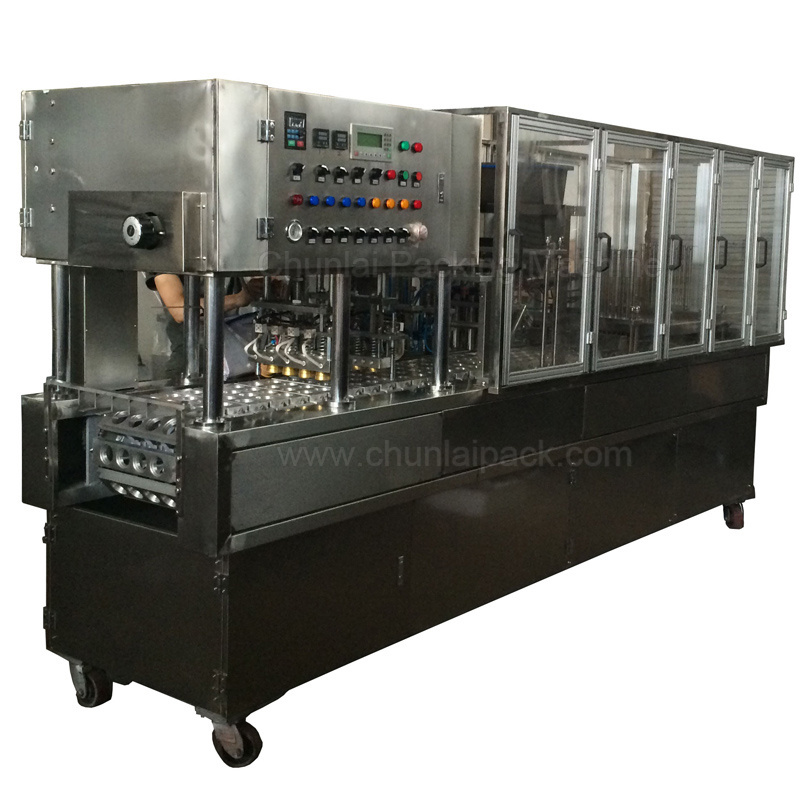

BG60A-4C Line Type Coffee Powder
Cup Filling and Sealing Machine
Can be customized according to customer's demand
Cup material available: PS, PP, PE, PET, paper and so on
Sealing film: roll film or die-cut foil
Filling: liquid, paste, powder, granule
BG60A K-cup Keurig Coffee Capsule Powder Screw Filling and Sealing Machine
Features:
BG60-4C Line Type Coffee Powder Cup Filling Sealing Machine is used for coffee capsules/cups filling with powder product like coffee powder, tea powder, coconut powder, coffee cream, soup powder, etc.. It is specially designed for fill small coffee capsule/cups.
The machine also can be customized for packaging a wide range of liquid, paste, granulated and powdered products into pre-formed containers of various size and shapes. The machine can be used in a variety of applications for the food industry, such as sour cream, yogurt, cheese, butter, guacamole, salsa, mayonnaise, margarine, hummus, dip, salad dressings, seasoning, soup, chocolate, jelly, honey, jam, ketchup, chili sauce, coffee, dry products, cosmetic cream and more.
Depending on the output required, the BG60 series Linear Type Cup Filling and Sealing Machine can be designed for 2 cups, 4 cups, 6 cups, 8 cups, 10 cups per time or more. The filling units which can be combined different type fillers on a same machine.
Machine basic function include cup dispenser, filling, heat sealing, automatic outfeed
Main Function:
Load coffee capsules/cups on machine automatically
Paper filter is optional according to different demand
Auger fill coffee powder customized as 3g, 5g, 7g, 10g, 12g etc
Press fluffy powder
Auto sealing(can be customized according to pre-cut aluminium foil or roll film)
Twice heat seal
Automatic feed out capsule/cup
Nitrogen flushing is optional
Depending on the output required, the BG60 series Linear Type Cup Filling and Sealing Machine can be designed for 2 cups, 4 cups, 6 cups, 8 cups, 10 cups per time or more. The filling units which can be combined different type fillers on a same machine.
Machine basic function include cup dispenser, filling, heat sealing, automatic outfeed
Main Function:
Load coffee capsules/cups on machine automatically
Paper filter is optional according to different demand
Auger fill coffee powder customized as 3g, 5g, 7g, 10g, 12g etc
Press fluffy powder
Auto sealing(can be customized according to pre-cut aluminium foil or roll film)
Twice heat seal
Automatic feed out capsule/cup
Nitrogen flushing is optional
Technical Parameter
|
Model
|
BG60A-2C
|
BG60A-4C
|
BG60A-6C
|
BG60A-8C
|
BG60A-10C
|
||||
|
Production Capacity
|
1600-2000 cups/hour, 2 cups per time
|
3200-4000 cups/hour, 4 cups per time
|
4800-6000 cups/hour, 6 cups per time
|
6400-8000 cups/hour, 8 cups per time
|
8000-10000 cups/hour, 10 cups per time
|
||||
|
Filling Range
|
can be customized
|
|
|
|
|
||||
|
Voltage
|
3 phase 380V 50/60Hz single phase 220V, 50/60Hz
|
|
|
|
|
||||
|
Air Consumption
|
0.8 m
3
/min
|
0.8 m
3
/min
|
0.8 m
3
/min
|
1 m
3
/min
|
1.2 m
3
/min
|
||||
|
Size
|
3000mm x 600mm x 1750mm
|
3000mm x 700mm x 1750mm
|
3000mm x 800mm x 1750mm
|
3000mm x 900mm x 1750mm
|
3000mm x 1000mm x 1750mm
|
||||
|
Weight
|
500KG
|
700KG
|
800KG
|
900 KG
|
1000KG
|
||||
Details Images
Main Function
automatic cup drop
automatic filling
automatic suck foil
automatic sealing
control panel
sample
Roll Film Sealing Machine
Main Function
cup denester
filling
sealing & cutting
cup exit
Optional Machine Configuration
Output round table
Conveyor belt
