Quick Details
-
Brand Name:
-
SOFTEL
-
Use:
-
FTTH/CATV/XPON
-
Warranty Time:
-
2
-
Product name:
-
FTTH CATV Optical Node
-
Optical AGC control range::
-
-18 ~ +2 dBm
-
Operating frequency::
-
5-1003 MHz
-
Input Wavelength:
-
1310/1490/1550nm
-
Output Wavelength:
-
1310/1490nm
-
Input return loss::
-
≥16dB
-
Operating temperature::
-
-20 ~ +55℃
-
Operating voltage::
-
DC +12V
-
Consumption::
-
≤ 6W
-
Dimension::
-
155mm(L)x116mm(W)x26mm(H)
-
Certification:
-
CE
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
SR201AW
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOFTEL
-
Use:
-
FTTH/CATV/XPON
-
Warranty Time:
-
2
-
Product name:
-
FTTH CATV Optical Node
-
Optical AGC control range::
-
-18 ~ +2 dBm
-
Operating frequency::
-
5-1003 MHz
-
Input Wavelength:
-
1310/1490/1550nm
-
Output Wavelength:
-
1310/1490nm
-
Input return loss::
-
≥16dB
-
Operating temperature::
-
-20 ~ +55℃
-
Operating voltage::
-
DC +12V
-
Consumption::
-
≤ 6W
-
Dimension::
-
155mm(L)x116mm(W)x26mm(H)
-
Certification:
-
CE
Products Description
Brief Introduction

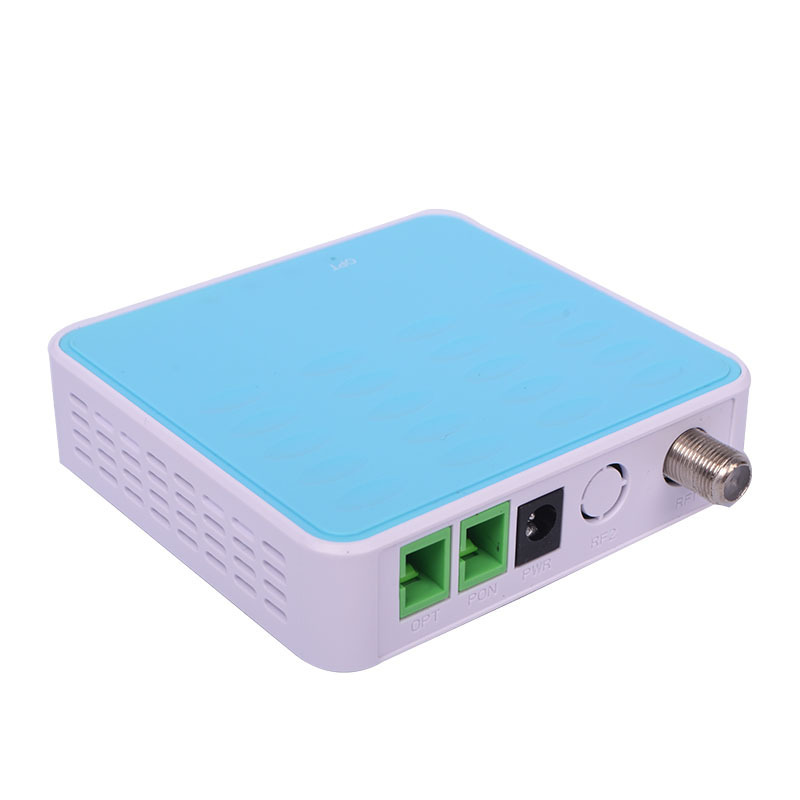

The SR201AW is a mini in-door optical receiver build in WDM, design for FTTP/FTTH transmission applications.
It delivers excellent frequency and distortion responses with low noise, high RF output, and low power consumption.
It is single mode fiber-pigtailed and is available with various connector options.
Features
■1 GHz operating bandwidth
■Lower input optical range:+2~-18dBm
■Output level up to 76dBuV (@-15dBm power input);
■2 RF Output optional
■Low power consumption<1.0W;
■Lower input optical range:+2~-18dBm
■Output level up to 76dBuV (@-15dBm power input);
■2 RF Output optional
■Low power consumption<1.0W;
Product Paramenters
|
Item |
Description
|
Value
|
Unit
|
|
Conditions / Notes
|
||||
|
|
Optical Specifications (Forward Path)
|
|
|
|
|
||||
|
1
|
Wavelength
|
1550/1490/1310
|
nm
|
Com port
|
|
||||
|
|
|
1490/1310
|
nm
|
For ONT
|
|
||||
|
2
3 |
Optical Power Input Range
|
-18～+2
|
dBm
|
|
|
||||
|
|
AGC Range
|
0～-12
|
dBm
|
|
|
||||
|
4
|
Optical Input Return Loss
|
≥45
|
dB
|
|
|
||||
|
|
RF Specifications (Forward Path)
|
|
|
|
|
||||
|
4
|
Bandwidth
|
47～1003
|
MHz
|
|
|
||||
|
5
|
Flatness
|
±1.0
|
dB
|
47～1003MHz，At 25 ℃
|
|
||||
|
6
|
Slope
|
0~2.0
|
dB
|
47～1003MHz，At 25 ℃
|
|
||||
|
7
|
Temperature Stability
|
±1.5
|
dB
|
In the operating temperature range (-25 ~ +65 ℃)
|
|
||||
|
8
|
Output Level
|
75±2
|
dBuV
|
-15dBm input optical power, The analog channel, per channel modulation 4.0%, in the 860MHz point test, at 25℃
|
|
||||
|
9
|
Impedance
|
75
|
Ohm
|
|
|
||||
|
10
|
Return Loss（47～1000MHz）
|
≥12
|
dB
|
At 25 ℃
|
|
||||
|
11
|
MER
|
≥30
|
dB
|
-15~-5dBm input optical power
|
|
||||
|
|
|
≥24
|
dB
|
-20~-16, input optical power
|
|
||||
|
12
|
Power
|
< 1.0
|
W
|
|
|
||||
|
|
Environmental Parameters
|
|
|
|
|
||||
|
13
|
Operating Temperature
|
-25～65
|
℃
|
|
|
||||
|
14
|
Storage Temperature
|
-40～70
|
℃
|
|
|
||||
|
15
|
Storage Humidity
|
≤95
|
％
|
Non- condensation
|
|
||||
|
|
User Interface
|
|
|
|
|
||||
|
16
|
Optical Connector Type
|
SC/APC in,
SC/PC out |
|
SC Optional,
See the figure4 and5 |
|
||||
|
17
|
Power supply
|
DC5V/0.5A
|
|
External adapter, See the figure3
|
|
||||
|
18
|
RF Output
|
RG6 Connector
|
|
Optional,
See the figure1 and2 |
|
||||
|
|
|
1 or 2 ports
|
|
|
|
||||
|
19
|
Optical Indicator
|
Shine Red or
Green color |
|
Optical power <-16dBm ,red
Optical power >--16dBm ,green See the figure6 |
|
||||
|
20
|
Housing
|
90×85×25
|
mm
|
|
|
||||
|
21
|
Weight
|
0.15
|
kg
|
|
|
||||
