Quick Details
-
Spindle Taper:
-
MT4
-
Range of Spindle Speed(r.p.m):
-
80 - 1250 r.p.m
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
CTMACH
-
Model Number:
-
CTZX40
-
Table Travel (mm):
-
800*240mm
-
Year:
-
2022
-
Spindle Motor Power(kW):
-
1.5
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1200*850*1100mm
-
Weight (KG):
-
305
-
Marketing Type:
-
Hot Sales 2021
Quick Details
-
Table Travel (X) (mm):
-
580mm
-
Table Travel (Y) (mm):
-
200mm
-
Table Travel (Z) (mm):
-
430mm
-
Spindle Taper:
-
MT4
-
Range of Spindle Speed(r.p.m):
-
80 - 1250 r.p.m
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
CTMACH
-
Model Number:
-
CTZX40
-
Table Travel (mm):
-
800*240mm
-
Year:
-
2022
-
Spindle Motor Power(kW):
-
1.5
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1200*850*1100mm
-
Weight (KG):
-
305
-
Marketing Type:
-
Hot Sales 2021
SIMILAR PRODUCTS

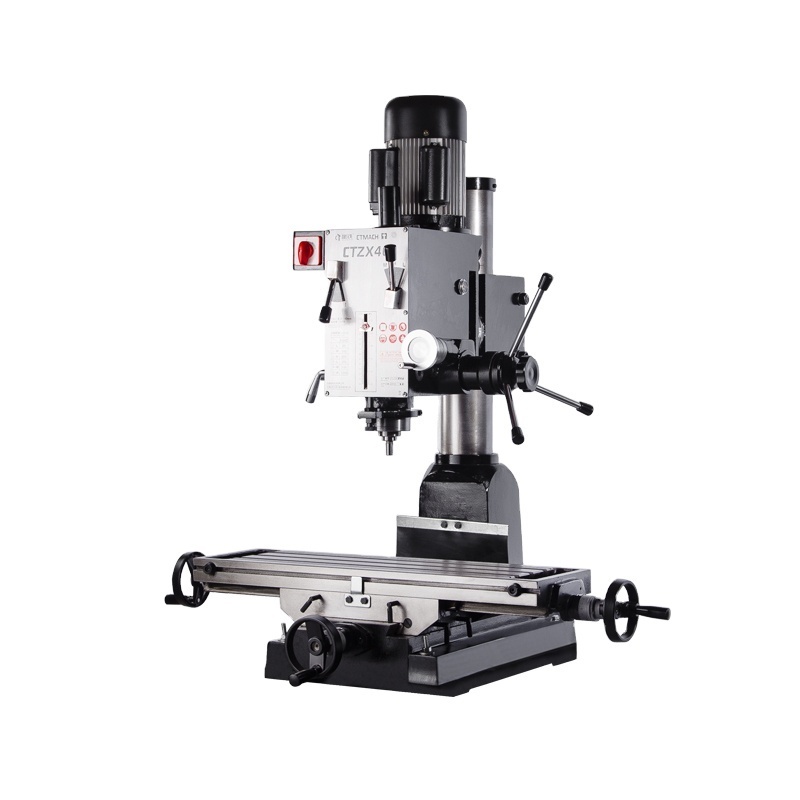

CTZX40 Round Column Drilling and Milling Machine
Speed selection by lever control
Calibrated scale for tilting
Rack and pinion drilling feed
Calibrated fine feed
Totally enclosed oil immersed gear box, very quiet operation.
Large diameter spindle supported on taper roller bearings
Split nuts to leadscrews to compensate for wear
Tapered gibs to X and Y axis
Table and cross slide locks
Interlock chuck guard
This machine uses metal gears
PRODUCT SPECIFICATIONS
|
Max. Drilling Diamter
|
|
45mm
|
|
|
|||
|
Max. Face Milling Capacity
|
|
60mm
|
|
|
|||
|
Max. Vertical Milling Capacity
|
|
20mm
|
|
|
|||
|
Max. Tapping Capacity
|
|
M16
|
|
|
|||
|
Worktable Size
|
|
800*240mm
|
|
|
|||
|
T-slots Size
|
|
14mm
|
|
|
|||
|
X-Axis Travel
|
|
580mm
|
|
|
|||
|
Y-Axis Travel
|
|
200mm
|
|
|
|||
|
Spindle Taper
|
|
MT4
|
|
|
|||
|
Spindle Travel
|
|
130mm
|
|
|
|||
|
Distance From Spindle Axis to Column Guide Rail
|
|
285mm
|
|
|
|||
|
Distance From Spindle to Table
|
|
430mm
|
|
|
|||
|
Spindle Incline Angle
|
|
±45°
|
|
|
|||
|
Spindle Speed (Variable Speed)
|
|
80-1250rpm
|
|
|
|||
|
Motor Power
|
|
1.5kw
|
|
|
|||
|
N.W.
|
|
305kg
|
|
|
|||
|
Overall Dimensions
|
|
1200*850*1100mm
|
|
|
|||
FEATURES AT A GLANCE
Product Acessories
SALES AND SERVICE NETWORK
Products are exported to more than 30 countries and regions in the world
EU CE standard, safe and reliable
ISO9001 quality system certification
