Quick Details
-
Gross Vehicle Weight:
-
12400
-
Product name:
-
Water Tank Truck
-
Chassis brand:
-
Sinotruk HOWO
-
Water tank truck type:
-
Sprinkling
-
Storage:
-
20000L Water
-
Drive type:
-
4x2 6X4 8x4
-
Tank material:
-
Carbon Steel
-
Wheelbase:
-
3800
-
Tyre:
-
12R22.5
-
Tank Volume:
-
15001 - 30000L
-
Spraying water:
-
Cold Water
-
Certification:
-
3C,VE,ISO9001
Quick Details
-
Dimensions (L x W x H) (mm):
-
9800*2500*3200
-
Brand Name:
-
Howo
-
Place of Origin:
-
Shandong, China
-
Gross Vehicle Weight:
-
12400
-
Product name:
-
Water Tank Truck
-
Chassis brand:
-
Sinotruk HOWO
-
Water tank truck type:
-
Sprinkling
-
Storage:
-
20000L Water
-
Drive type:
-
4x2 6X4 8x4
-
Tank material:
-
Carbon Steel
-
Wheelbase:
-
3800
-
Tyre:
-
12R22.5
-
Tank Volume:
-
15001 - 30000L
-
Spraying water:
-
Cold Water
-
Certification:
-
3C,VE,ISO9001

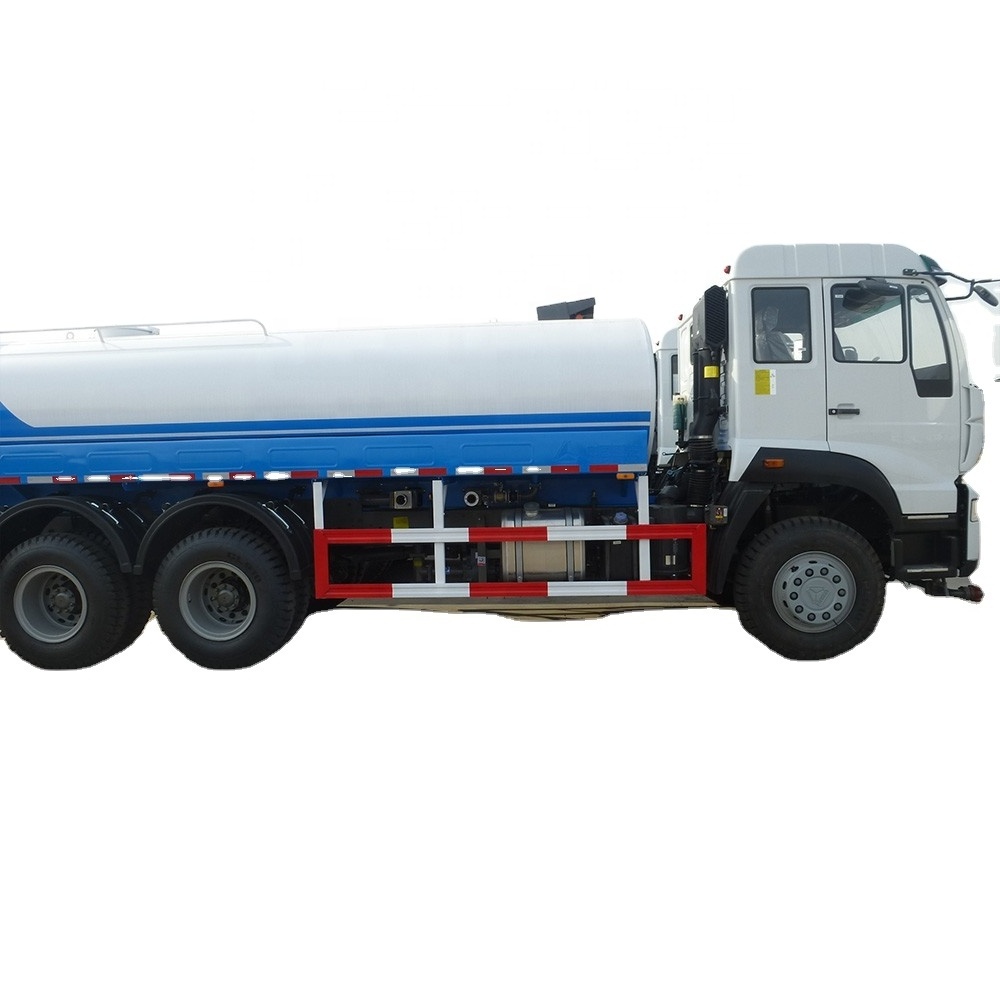

20m3 Liters Water Tank Truck 20000 Liters Water Tank Truck Dimensions
Product Description
Specification
|
Product Name
|
Sinotruk howo export water tank truck 20CBM
|
|
|
Driving Type
|
6×4,left hand drive
|
|
|
Chassis model
|
ZZ1257N4647C
|
|
|
Weights
|
|
|
|
Payload (kg)
|
24000
|
|
|
Curb weight(kg)
|
12400
|
|
|
Dimensions
|
|
|
|
Wheelbase(mm)
|
4600+1350
|
|
|
Overall Dimension(mm)
|
9800×2500×3200
|
|
|
Box dimension
|
20CBM
|
|
|
Max speed(km/h)
|
80
|
|
|
Engine
|
|
|
|
Engine model
|
WD615.95E (336HP)
|
|
|
Engine type
|
4 stroke water-cooled,inter-cooling
|
|
|
No. of cylinders
|
straight-6 cylinders
|
|
|
Displacement(L)
|
9.726L
|
|
|
Max. output (kw)
|
247kw
|
|
|
Drive Line
|
|
|
|
Transmission
|
HW15710,10 forwards,2 reverse gear,Ellipse water tanker Tanker shape
|
|
|
Steering
|
ZF8098,With power steering
|
|
|
Brake system
|
Air brake
|
|
|
Cab
|
|
|
|
Cab
|
HW76
|
|
|
Standard configuration
|
Full steel skeleton structure, covered with double layer steel plate;Can be tipped forwardly; with A/C;shock-absorbers
Whole instrument desk, digital meters,and so on |
|
|
Axle
|
|
|
|
Front axle
|
HF7
|
|
|
Rear axle
|
HC16
|
|
|
Tire specification
|
|
|
|
Tire specification
|
12.00-20 standard tire,10 tires+1 spare tire
|
|
|
Specification fuction of water truck
|
|
|
|
Tanker shape
|
Ellipse water tanker
|
|
|
Tanker material
|
Q235,carbon steel
|
|
|
Tank compartments
|
4 compartments
|
|
|
Manhole
|
Man way access hole on top of tank;1 units DN500mm manhole
|
|
|
Man walk way
|
With skid resistance man walk way on top of tank
|
|
|
Horse reels
|
Two 75 ft hose reels at each side of the truck
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
China National Heavy Duty Truck Group Co., Ltd has nearly 60 years’ history since 1958, where the first heavy duty truck was produced in China.
We have our own spare parts departments,have strong production and distribution capability.We can satisfy your demand within 2-7days.
We have our own spare parts departments,have strong production and distribution capability.We can satisfy your demand within 2-7days.
FAQ
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q: How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q: How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
