Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
HengBiao
-
Model Number:
-
YQB
-
Place of Origin:
-
Hebei, China
-
Structure:
-
vane pump
-
Outlet Size:
-
1inch
-
Power:
-
1.5-18.5kw, 1.5-18.5kw
-
motor:
-
100% Copper Wire,explosion proof
-
Product name:
-
lpg filling pump
-
Material:
-
Cast iron, stainless steel
-
Function:
-
High Effeciency
-
Certification:
-
ISO9001
-
MOQ:
-
1 Set
-
Keywords:
-
LPG PUMP
-
Transfer media:
-
LPG, DME, liquid ammonia and other volatile liquids
-
Usage:
-
Booster
Quick Details
-
Application:
-
Other, Automotive Industry, Biofuel Industry, Commercial Buildings, District Energy, Family Homes, Food and Beverage Industry, Industrial Boilers, Industrial Utilities, Machining, Marine, Metal and Equipment Manufacturers, temperature control, Water Distribution
-
Pressure:
-
Low Pressure
-
Voltage:
-
220V/380V, Voltage 220V/380V/400v-480v
-
Warranty:
-
1 years
-
Brand Name:
-
HengBiao
-
Model Number:
-
YQB
-
Place of Origin:
-
Hebei, China
-
Structure:
-
vane pump
-
Outlet Size:
-
1inch
-
Power:
-
1.5-18.5kw, 1.5-18.5kw
-
motor:
-
100% Copper Wire,explosion proof
-
Product name:
-
lpg filling pump
-
Material:
-
Cast iron, stainless steel
-
Function:
-
High Effeciency
-
Certification:
-
ISO9001
-
MOQ:
-
1 Set
-
Keywords:
-
LPG PUMP
-
Transfer media:
-
LPG, DME, liquid ammonia and other volatile liquids
-
Usage:
-
Booster
Overview
Product Description
YQB series LPG pump is mainly used for transportation of liquefied petroleum gas, propylene, ammonia, but also for irrigation and transport all kinds of similar nature or volatile liquids and petroleum products. The pump is a positive displacement vane pump,advanced structure, the surface of a composite curve consisting of a stator, mechanical seals at both ends, with respective end surfaces are fixed using the "O"-ring, with the rotational movement of the member are made of metal should be relatively
non-metallic with the use of safe and reliable, a machine function.
non-metallic with the use of safe and reliable, a machine function.
Details Images
Working principle
Liquefaction type of positive displacement pump, liquid ammonia pump vane pump, working on blade centrifugal slide, flow associated with the rotation speed of shaft, the stator surface using the original domestic made from composite curve, stator and rotor, baffle, leaf of ten sealed cavity, because the stator surface is composite curve, as the rotor turns into the oral cavity volume increases gradually, and formed the negative pressure suction, thus the oil suction, after the rotor rotation Angle, volume section decreases, thus the oil hydraulic, between oil absorption cavity and cavity pressure oil has an oil separates oil absorption and pressure oil cavity.The blade is closely attached to the inner surface of stator by centrifugal force and two-baffle structure, which makes the pump work normally under rated condition.
Product Paramenters
|
Model
|
Speed n
|
Flow Q
|
Pressure difference
ΔP
|
Working pressure
P
|
Power
N
|
Inlet size
|
Outlet size
|
Temperature
℃
|
|
YQB2-5
|
600r.P.m
|
2 m3/h
|
1.8MPa
0.5MPa
|
2.0MPa
|
1.5KW
|
1
|
1
|
-40 ~40
|
|
YQB5-5
|
780r.P.m
|
5 m3/h
|
|
2.0MPa
|
2.2KW
|
1
|
1
|
-40 ~40
|
|
YQB10-5
|
600r.P.m
|
10m3/h
|
0.5MPa
|
1.8MPa
|
5.5KW
|
2
|
2
|
-40 ~40
|
|
YQB15-5
|
780r.P.m
|
15m3/h
|
|
1.8MPa
|
5.5KW
|
2
|
2
|
-40 ~40
|
|
YQB25-5
|
600r.P.m
|
25m3/h
|
0.5MPa
|
1.8MPa
|
11KW
|
3
|
3
|
-40 ~40
|
|
YQB35-5
|
780r.P.m
|
35m3/h
|
|
1.8MPa
|
11KW
|
3
|
3
|
-40 ~40
|
|
YQB50-5
|
780r.P.m
|
50 m3/h
|
0.5MPa
|
1.8MPa
|
15KW
|
4
|
4
|
-40 ~40
|
|
YQB80-5
|
780r.P.m
|
80 m3/h
|
0.5MPa
|
1.8MPa
|
18KW
|
4
|
4
|
-40 ~40
|
Application
Generally used in:

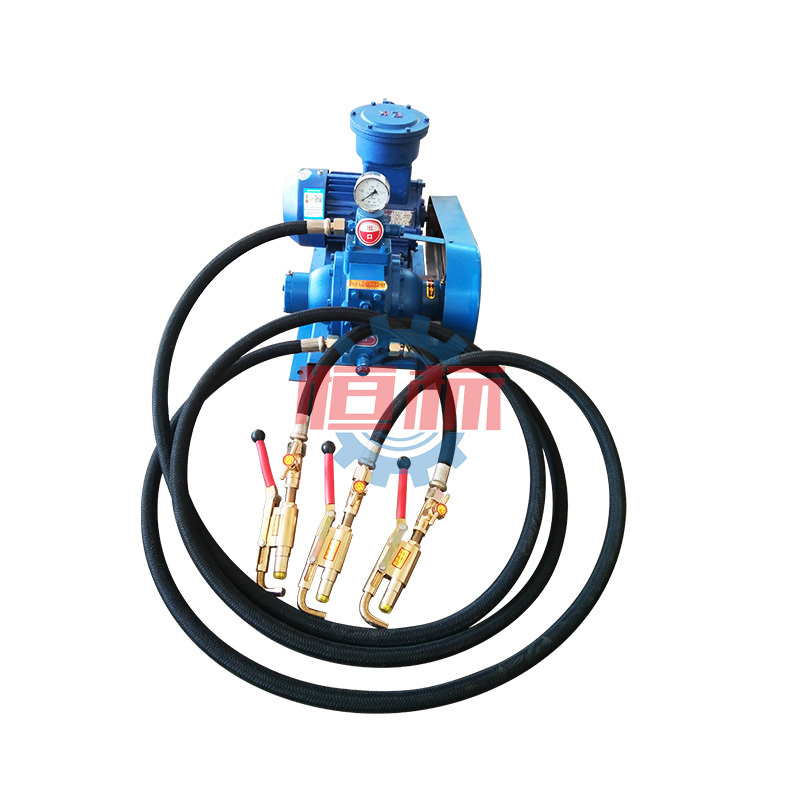

1.Filling LPG pump with filling gun and hose, fill lpg gas from cylinder to cylinder.
2.Transfering lpg pump, often connect with pipes to work.
3.Direct connection lpg transfer pump, some customers like direct connection, not like belt driven.
1.Filling LPG pump with filling gun and hose, fill lpg gas from cylinder to cylinder.
2.Transfering lpg pump, often connect with pipes to work.
3.Direct connection lpg transfer pump, some customers like direct connection, not like belt driven.
