Faster ice Making /Lower power consumption
Aluminum evaporator is of 3 times higher heat exchange efficiency than other steel [SUS304, galvanized steel], so ice block can be completely frozen faster. In this way, it can produce more ice blocks with lower power consumption.
- Product Details
- {{item.text}}
Quick Details
-
Ice storage capacity:
-
/
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Linsky
-
Dimension(L*W*H):
-
L4020mm*W1437mm*H2871mm
-
Weight:
-
1560 KG
-
Product name:
-
Machines for making ice 1 ton ice block making machine for commercial
-
Cooling way:
-
Air Cooling
-
Compressor:
-
Copeland
-
Refrigerant:
-
R404a/R22
-
Material:
-
stainless steel
-
Control system:
-
Siemens PLC
-
Power supply:
-
380V/3P/50Hz
-
Ice making capacity:
-
1Tons/24Hours
-
Block ice weight:
-
5kg/10kg/15kg/20kg
-
Keyword:
-
Block Ice Machine
Quick Details
-
Ice Shape:
-
ICE BLOCK
-
Voltage:
-
380V/50HZ/3P
-
Power:
-
4.2KW
-
Ice storage capacity:
-
/
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Linsky
-
Dimension(L*W*H):
-
L4020mm*W1437mm*H2871mm
-
Weight:
-
1560 KG
-
Product name:
-
Machines for making ice 1 ton ice block making machine for commercial
-
Cooling way:
-
Air Cooling
-
Compressor:
-
Copeland
-
Refrigerant:
-
R404a/R22
-
Material:
-
stainless steel
-
Control system:
-
Siemens PLC
-
Power supply:
-
380V/3P/50Hz
-
Ice making capacity:
-
1Tons/24Hours
-
Block ice weight:
-
5kg/10kg/15kg/20kg
-
Keyword:
-
Block Ice Machine
Ice Machine Description
Machines for making ice 1 ton ice block making machine for commercial
Large dimension but small contact area means block ice does not melt easily. For tropical countries and areas, block ice still has overwhelming advantages over other forms of ice. The ease of ice storage, handling and transport all could be realized in this form of large blocks. That's the very ideal ice for the relatively long time storage and long distance distribution. Linsky brine type block ice machines are stable and energy efficient, simple to use and cost-effective to maintain.
Machines for making ice 1 ton ice block making machine for commercial
Linsky can offer 3 types of block ice machine for different applications: direct refrigeration aluminum alloy type, indirect refrigeration brine type and containerized mobile type.
Block Ice large cube shape, weight of 1~200kg, solid ice; Block ice is the largest ice in all the ice products. It is not easy to thaw due to its small contact area. And it can be crushed into different shapes of ice according to different requirements. Linsky offers transparent, semi-transparent or milky white three ice appearances available.
|
Machines for making ice 1 ton ice block making machine for commercial
|
|
|
|
Model:
|
LIB-10B
|
|
|
Daily capacity:
|
1Ton/24hr.
|
|
|
Dimension:
|
L4020mm*W1437mm*H2871mm
|
|
|
Weight:
|
1560kg
|
|
|
Operating Power:
|
4.2KW
|
|
|
Install Power:
|
5KW
|
|
Ice Machine details
Brine Type Block Ice Machine Features- Machines for making ice 1 ton ice block making machine for commercial
(1)
Large evaporation area coil evaporator increases heat transfer efficiency, ensures long service time and corrosion resistance;
(2)Well insulated brine tank with high resistant epoxide coating;
(3)Heavy-duty overhead crane with 2 speeds for moving, lifting and tipping the ice cans;
(4)Ice thawing tank utilizes the exhaust heat from compressor, more energy saving;
(5)Modular design simplified equipment transportation and on-site installation process;
(6)Rivet and reinforced ice cans construction to extend its service life;
(7)Unique propeller blade processing technology to improve the efficiency of the agitator, increase the flow of salt water, accelerate ice making speed;
(8)Options of stainless steel ice cans and galvanized steel ice cans;
(9)Touch screen, reserve function, 3G network remote fault alarm, 4G network remote video monitoring are available on request.

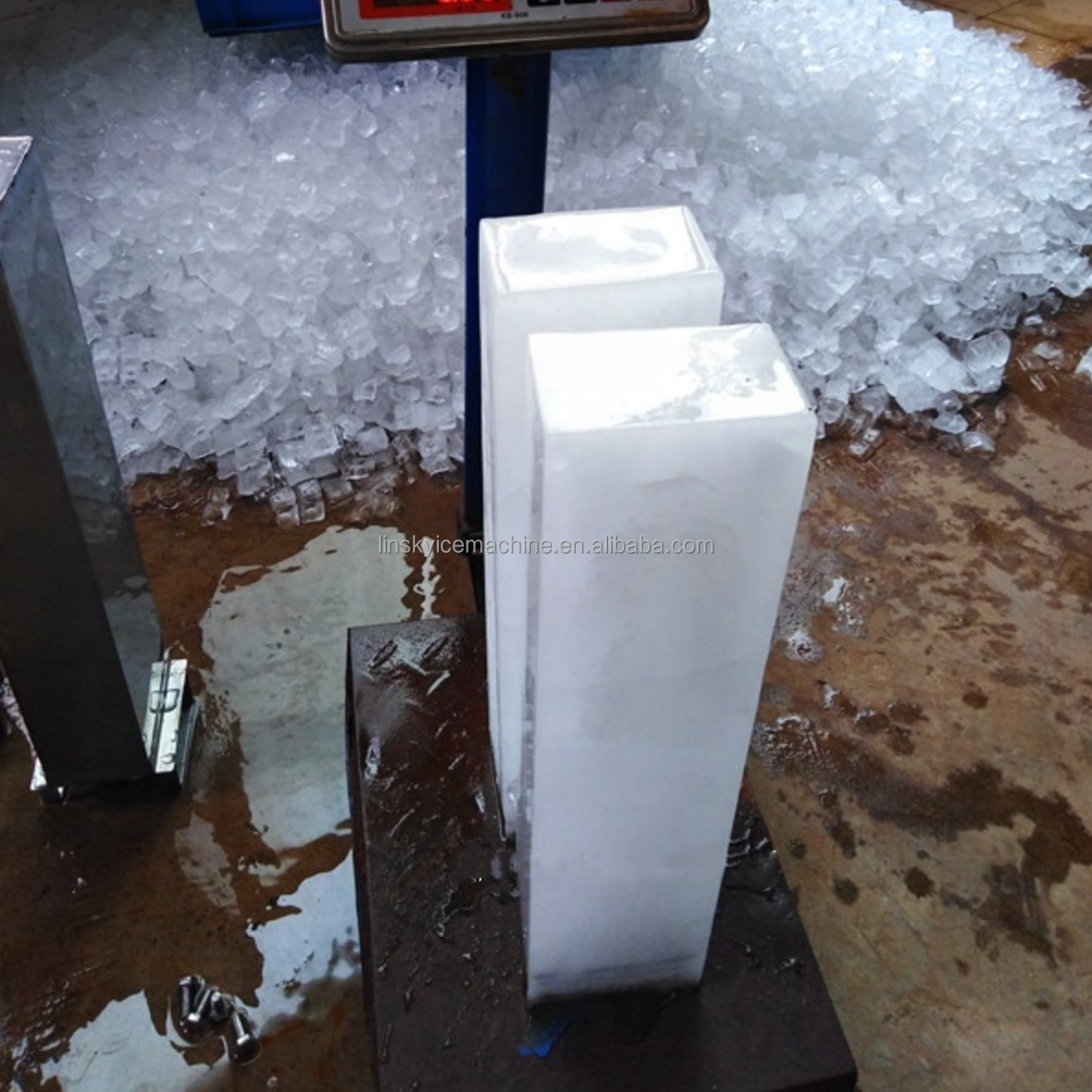

Block ice: Machines for making ice 1 ton ice block making machine for commercial
From block ice appearance, Linsky block ice machine could produce transparent, semi-transparent and milky white block ice; In the aspect of weight and dimension, Linsky standard block ice weight and dimension are listed below for your reference:
How does a brine type block ice machine work?
-
Machines for making ice 1 ton ice block making machine for commercial
As shown, when compressor unit (11) starts to run, refrigerant enters into coil evaporator (08) and begins evaporating. Brine water in brine tank (09) is circulated by agitator (05), then flow through coil evaporator (08). After water temperature decreases, it contacts with the outer surface of ice cans (06) and absorbs the heat of water in ice cans. Thus, all the water in the ice cans will be freeze until freezing point. The water after exchanged heat will be delivered by agitator to coil evaporator to be cooled down again, which forms a brine water circulation. In certain time, all the water in the ice cans will turn into block ice.
The crane (07) will move on guiding rail (10) and hoist a row of ice cans (06) down into the ice thaw tank (04). Normal
temperature water in thaw tank will melt the outside surface of ice can, so the ice surface thaws and gets separate from ice cans.
The compressor unit (11) can control brine tank temperature by electric control box (12). When the temperature increases, the compressor unit starts to work; when it reaches to the set temperature, the compressor unit stops to work.
The crane (07) will move on guiding rail (10) and hoist a row of ice cans (06) down into the ice thaw tank (04). Normal
temperature water in thaw tank will melt the outside surface of ice can, so the ice surface thaws and gets separate from ice cans.
The compressor unit (11) can control brine tank temperature by electric control box (12). When the temperature increases, the compressor unit starts to work; when it reaches to the set temperature, the compressor unit stops to work.
Ice Machine Application
Block ice machine match with Ice crusher-
Machines for making ice 1 ton ice block making machine for commercial
Block Ice Applications fishing industry, fresh keeping or human consumption after crushing; transparent one used for ice
sculpture, ice show etc.; it also can be used in the area of chemical industry, food processing cooling.
Block ice Features:
Machines for making ice 1 ton ice block making machine for commercial
* Transparent ice features: crystal, solid and not easy to melt;
* Semi-transparent ice features: misty white appearance as a few amount of gas mixed in ice making process, ice is solid and not easy to melt;
* Milky white ice features: milky white as lot of gas mixed in fast ice making process, low temperature, not easy to melt but suitable for crushing.
* Transparent ice features: crystal, solid and not easy to melt;
* Semi-transparent ice features: misty white appearance as a few amount of gas mixed in ice making process, ice is solid and not easy to melt;
* Milky white ice features: milky white as lot of gas mixed in fast ice making process, low temperature, not easy to melt but suitable for crushing.
Ice Machine packaging&Shipping
For Machines for making ice 1 ton ice block making machine for commercial:
(1)Packed in plywood case.
(2)Spared parts and accessories are offered free of charge for installation and operation.
Ice Machine Projects
Linsky 5Ton/24h block ice machine to
China Railway Construction Department
Linsky 10Ton/24h block ice machine to
Malaysia
Longer service life Lower future investment
Without salt and other material's corrosion, Linsky all LIB series ice block machine with longer service life and you need just
clean the ice moulds/ice machine regularly. The fucture maintenance investment is lower.
Without salt and other material's corrosion, Linsky all LIB series ice block machine with longer service life and you need just
clean the ice moulds/ice machine regularly. The fucture maintenance investment is lower.
Linsky 20Ton/24h block ice machine to
Tanzania
Labor saving
Add water--ice making--wait--ice dropping and ice block moving away. Linsky LIB series ice block machine need only your labor cost to move the ice blocks, all other process is automatically finished.
Add water--ice making--wait--ice dropping and ice block moving away. Linsky LIB series ice block machine need only your labor cost to move the ice blocks, all other process is automatically finished.
FAQ
1. What should I prepare to buy the ice machine from you?
(1) We will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
(2) The install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V/50Hz/3P, most North and South America countries are using 220V/60Hz/3P, please confirm with our salesman and make sure it is available in your factory.
(3) With all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment (T/T or L/C or Trade Assurance Order on Alibaba.com directly) to close the deal, for all our standard design, we will need about 35~45 working days on the production.
(4) After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2. How to install the ice machine?
(1) For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
(2) For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3. What if I buy your ice machine, but I cannot find the solution for the problem?
All Linsky ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
(1) We will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
(2) The install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V/50Hz/3P, most North and South America countries are using 220V/60Hz/3P, please confirm with our salesman and make sure it is available in your factory.
(3) With all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment (T/T or L/C or Trade Assurance Order on Alibaba.com directly) to close the deal, for all our standard design, we will need about 35~45 working days on the production.
(4) After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2. How to install the ice machine?
(1) For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
(2) For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3. What if I buy your ice machine, but I cannot find the solution for the problem?
All Linsky ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
Linsky Ice Machine Factory Introduction
Shanghai Snowdream Refrigeration Equipment Co., Ltd, as the leading manufacturer and exporter of commercial and industrial ice machines in China, with a decade of professional experience in ice cooling field, has been approved with CE and ISO 9001-2000.Brand is "Linsky".
Linsky's products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments,such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
Linsky's products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments,such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
