Quick Details
-
Max. Single-leaf Length:
-
2.5M
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Type:
-
Automatic Door Opener
-
Key words:
-
Swing Gate Operator
-
Max. Single-leaf Length:
-
2.5M
1) Push rod 24V DC swing gate opener
2) Soft start slow stop function
3) Obstacle detection in opening and closing
4) Automatic close function, time is adjustable
5) Over-current function meet European safety requirements
6) Safe design to prevent PCB burned for wrong wiring connection
7) Support GSM, solar system, photocell, alarm lamp, electronic lock
8) You can add up to 23 extra remotes that can control this system
9) In case of a power outage or an emergency you may also use manual release bar
|
Model |
PK3 00DC |
|
Driving Method |
Screw driven piston type |
|
Motor Power |
DC 24V , 140W |
|
Operating Cycle |
20 second per 90(approx) |
|
Max. Single-leaf Weight |
300KG |
|
Max. Single-leaf Length |
2.5M |
|
Gear Box |
Worm gear |
|
Limit Switch |
Stop block |
|
Working Temperature |
-20℃~70℃ |
|
Work Duty |
S2 30min |
|
Power Supply |
AC 110V/220V, 60Hz/50Hz |
|
Protection Class |
IP 54 |
|
Weight |
1 6 KG |
|

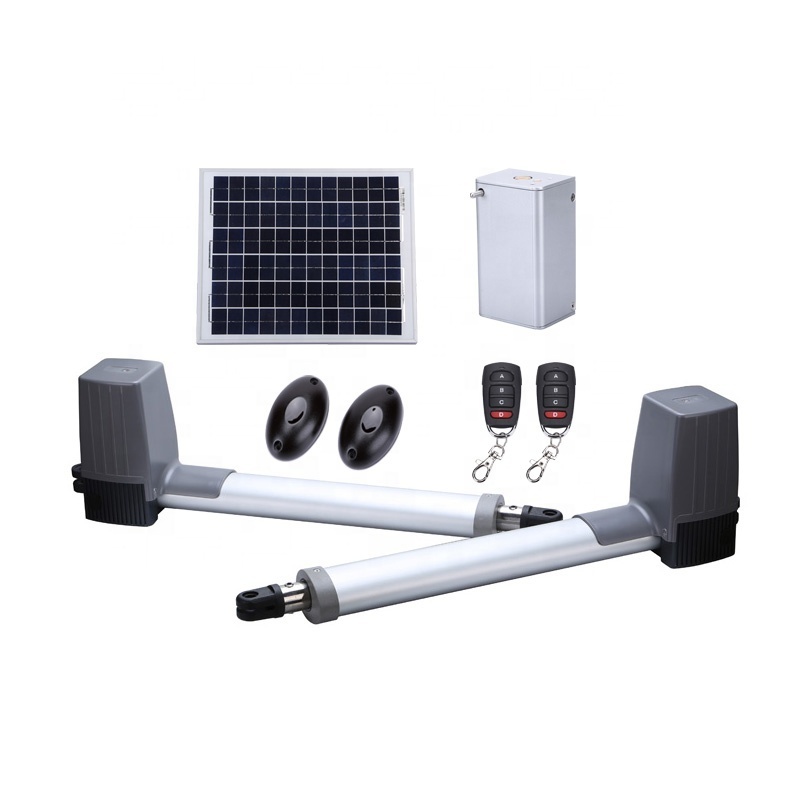

Standard Configuration |
2 motor, 1 control box with board, 2 remote transmitters, 1 release bar |
|
Optional Accessories |
Photocell, alarm wall lamp(20V/220V/110V), wireless keypad, wireless wall button, 20W solar panel, 9AH battery box with solar charger |
