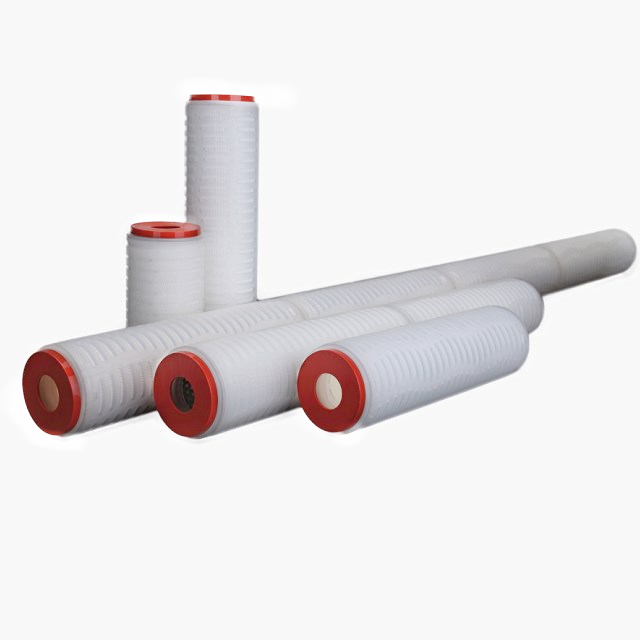

![[TS Filter] biogas and air cartridge filter 1 micron hydrophobic PTFE membrane filter cartridge for industrial gas sterile](https://cdn.bestsuppliers.com/seo_products_img/kesima/8cc896c46dc733e29146e86fbd69096c.png!/rotate/180)
![[TS Filter] biogas and air cartridge filter 1 micron hydrophobic PTFE membrane filter cartridge for industrial gas sterile](https://cdn.bestsuppliers.com/seo_products_img/kesima/21dbf0174c5434d39a188d75b11dc686.png!/rotate/180)
![[TS Filter] biogas and air cartridge filter 1 micron hydrophobic PTFE membrane filter cartridge for industrial gas sterile](https://cdn.bestsuppliers.com/seo_products_img/kesima/33b8fe57a96f3a1081cb1b268496a32d.png!/rotate/180)
![[TS Filter] biogas and air cartridge filter 1 micron hydrophobic PTFE membrane filter cartridge for industrial gas sterile](https://cdn.bestsuppliers.com/seo_products_img/kesima/68fc0e4c2d613d05a4f64aa06a5f3268.jpg!/rotate/180)
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TS Filter
-
Type:
-
PTFE filter cartridge
-
Filter media:
-
Hydrophobic PTFE Membrane
-
Outer Diameter:
-
69mm
-
Cage, Core:
-
PP
-
Micron:
-
0.1, 0.2, 0.45 um
-
Length:
-
5, 10, 20, 30, 40 inch
-
Filtration efficiency:
-
99.9%
-
Adapter:
-
Code 7, 226, 222, DOE, etc
-
Filtration Area:
-
0.65 m2(10 inch)
-
Application1:
-
Vent Filtration, Fermentation air ; Compressed air
Quick Details
-
Weight (KG):
-
10
-
Core Components:
-
Hydrophobic PTFE filter membrane
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TS Filter
-
Type:
-
PTFE filter cartridge
-
Filter media:
-
Hydrophobic PTFE Membrane
-
Outer Diameter:
-
69mm
-
Cage, Core:
-
PP
-
Micron:
-
0.1, 0.2, 0.45 um
-
Length:
-
5, 10, 20, 30, 40 inch
-
Filtration efficiency:
-
99.9%
-
Adapter:
-
Code 7, 226, 222, DOE, etc
-
Filtration Area:
-
0.65 m2(10 inch)
-
Application1:
-
Vent Filtration, Fermentation air ; Compressed air
Products Description
PARAMETER INFORMATION
|
Materials Of Construction |
Filter Media
|
Hydrophobic PTFE membrane
|
|
|
Support Layers
|
Polypropylene
|
|
|
Micron Rating
|
0.1, 0.2, 0.45, 0.65, 1.0, 3.0 um
|
|
|
Inner Core
|
Reinforced Polypropylene/Stainless Steel
|
|
|
Outer Cage
|
Reinforced Polypropylene
|
|
|
End Cap
|
Polypropylene / Stainless Steel Insert
|
|
|
Seal Method
|
Thermal Bonded, No Adhesives
|
|
|
O-Rings/Gaskets
|
Silicone, Nitrile, EPDM, Viton, Teflon
|
|
Cartridge Dimensions |
Outer Diameter
|
69mm(2.75'')
|
|
|
Inner Diameter
|
33mm(1.30'')
|
|
|
Length(Based On DOE End Cap)
|
10"- 254mm, 20"- 508mm, 30"-762 mm,
40"- 1016mm |
|
|
Filtration Area(m2)
|
0.65 m2 per 10''
|
|
Operating Conditions |
Normal Operating Temperature:
|
Up to 65℃ (149 ℉ )
|
|
|
Max.operating Temperature:
|
90℃ (194 ℉ ) at △ P£1.0 bar (14.5psi)
|
|
|
Normal Flow Direction
|
4.2 bar (60.9 psi) at 25℃ (77 ℉ )
|
|
|
Reverse Flow direction
|
2.1 bar (30.5psi) at 25℃ (77 ℉ )
|
|
|
PH Value Compatibility
|
1-14
|
|
|
Sterilization
|
Steam Sterilization for 30 minutes at 121±2 ℃ , 100 cycles,Autoclave 30minutes (optional)
|
|
Cartridge Safety
|
Endotoxin
|
＜ 0.25 EU/ml
|
|
|
Extractables
|
0.03g / 10"
|
