Quick Details
-
Country of Origin:
-
China
-
Brand:
-
Feasycom
-
Bluetooth version:
-
Bluetooth 5.2 dual mode(BR/EDR+BLE)
-
Certifications:
-
FCC,IC,CE,KC,TELEC,SRRC
-
Dimension:
-
13mm*26.9mm*2.2mm
-
Transmit power:
-
+18.5dBm
-
Profiles:
-
A2DP/AVRCP/HSP/HFP/HOGP/HID/SPP/GATT
-
Frequency:
-
2.402-2.480GHz
-
Power supply:
-
3.3V
-
Operating Temperature:
-
-20°C to +85°C
-
Interface:
-
UART/I2C/PCM/I2S/USB
-
APP:
-
FeasyBlue App
Quick Details
-
Model Number:
-
FSC-BT909C
-
Chipset:
-
Qualcomm CSR8811
-
Application:
-
Audio Transmitter and Receiver
-
Country of Origin:
-
China
-
Brand:
-
Feasycom
-
Bluetooth version:
-
Bluetooth 5.2 dual mode(BR/EDR+BLE)
-
Certifications:
-
FCC,IC,CE,KC,TELEC,SRRC
-
Dimension:
-
13mm*26.9mm*2.2mm
-
Transmit power:
-
+18.5dBm
-
Profiles:
-
A2DP/AVRCP/HSP/HFP/HOGP/HID/SPP/GATT
-
Frequency:
-
2.402-2.480GHz
-
Power supply:
-
3.3V
-
Operating Temperature:
-
-20°C to +85°C
-
Interface:
-
UART/I2C/PCM/I2S/USB
-
APP:
-
FeasyBlue App
Products Description

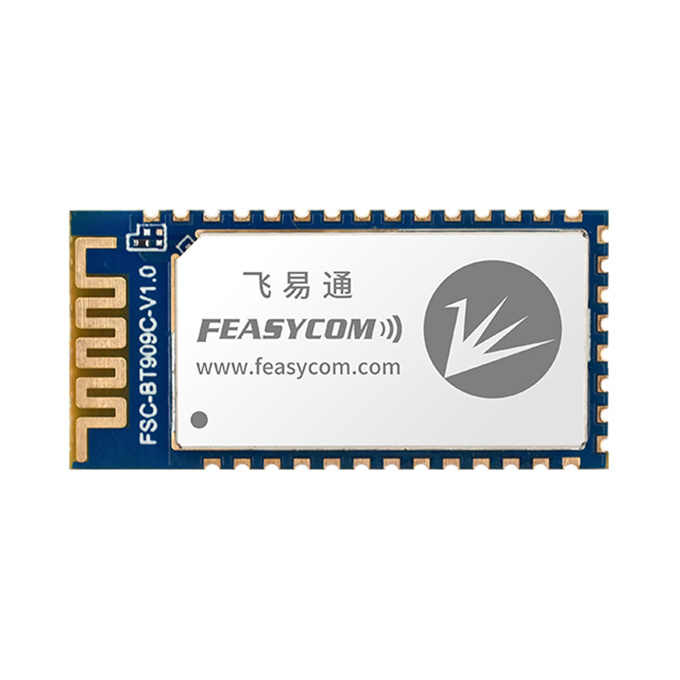

Feasycom FSC-BT909C is a Class 1 dual-mode Bluetooth 5.2 audio module that offers an impressive wireless transmission range of up to 100m.
It supports a comprehensive range of profiles including SPP (Master/Slave), HID, and BLE (Master/Slave), HS/HF, A2DP,AVRCP, OPP, DUN and more, ensuring comprehensive compatibility and functionality. With the long-range capabilities, FSC-BT909C is widely applicable in solutions for large-scale warehouses and long-range barcode scanners. It boasts UART and SPI interfaces, ensuring seamless integration with devices such as barcode scanners, printers, and ECG machines.
Main Features
- Support Audio Transmitter and Receiver
- Fully qualified Bluetooth 5.2/5.1/5.0/4.2/4.1/4.0/3.0/2.1
- Postage stamp sized form factor
- Class 1 support (high output power)
- The default UART Baud rate is 115.2Kbps and can support from 1200bps up to 921Kbps,.
- UART, IPC,PCM/I'S data connection interfaces.
- Support profiles for HS/HF, A2DP, AVRCP, OPP, DUN, SPP, HID, BLE
- RoHS compliant
- Support Audio Transmitter and Receiver
- Fully qualified Bluetooth 5.2/5.1/5.0/4.2/4.1/4.0/3.0/2.1
- Postage stamp sized form factor
- Class 1 support (high output power)
- The default UART Baud rate is 115.2Kbps and can support from 1200bps up to 921Kbps,.
- UART, IPC,PCM/I'S data connection interfaces.
- Support profiles for HS/HF, A2DP, AVRCP, OPP, DUN, SPP, HID, BLE
- RoHS compliant
Specification
|
Module model
|
FSC-BT909C
|
|
|
Bluetooth version
|
Bluetooth 5.2 dual mode(BR/EDR+BLE)
|
|
|
Chipset
|
CSR8811
|
|
|
Certifications
|
FCC,IC,CE,TELEC,SRRC
|
|
|
Dimension
|
13mm*26.9mm*2.2mm
|
|
|
Transmit power
|
+18.5dBm
|
|
|
Profiles
|
A2DP/AVRCP/HSP/HFP/HOGP/HID/SPP/GATT
|
|
|
Frequency
|
2.402-2.480GHz
|
|
|
Power supply
|
3.3V
|
|
|
Operating Temperature
|
-20°C to +85°C
|
|
|
Interface
|
UART/I2C/PCM/I2S/USB
|
|
|
* Please contact us for more information
|
|
|
