Quick Details
-
Dimensions(L*W*H):
-
16225*2895*2965mm
-
Weight:
-
21500KG
-
Inner diameter of core:
-
76mm
-
Diameter of material:
-
600mm
-
Diameter of printing plate:
-
100-300mm
-
Width of printing:
-
1100mm
-
Register precision:
-
0.10mm
-
Max speed:
-
220m/min
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wity
-
Voltage:
-
380V/50HZ
-
Dimensions(L*W*H):
-
16225*2895*2965mm
-
Weight:
-
21500KG
-
Inner diameter of core:
-
76mm
-
Diameter of material:
-
600mm
-
Diameter of printing plate:
-
100-300mm
-
Width of printing:
-
1100mm
-
Register precision:
-
0.10mm
-
Max speed:
-
220m/min
Related machine
Product Description

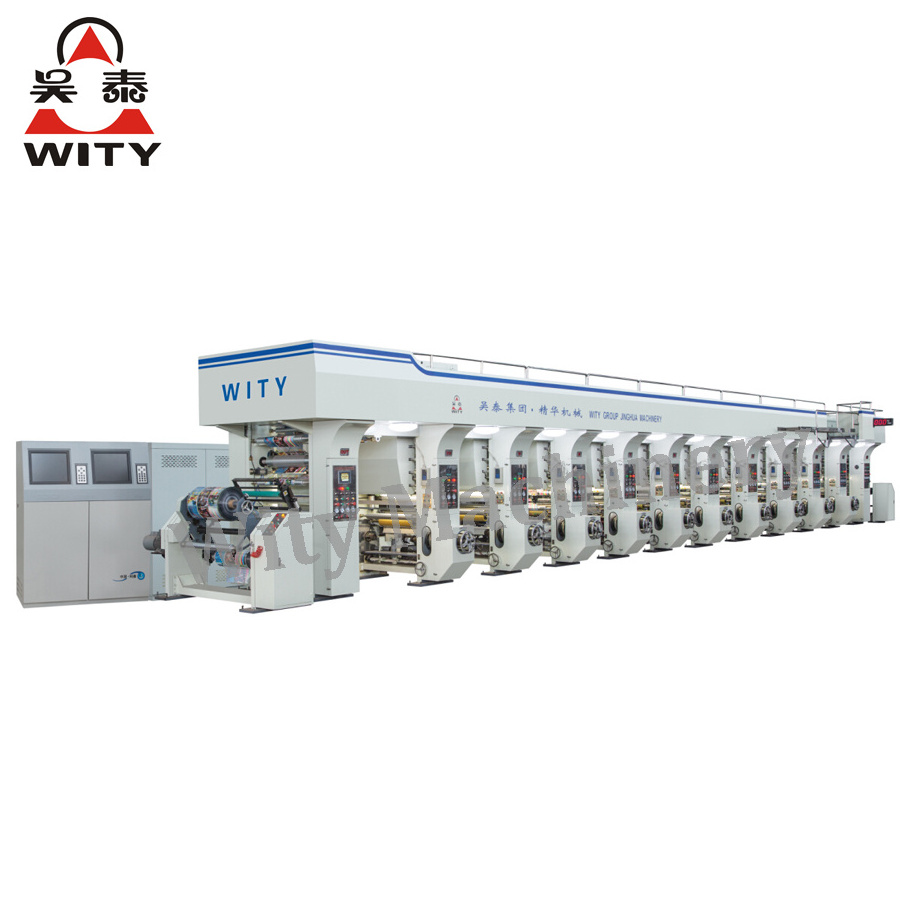

YAD-K2 Series Auto Register Gravure Printing Machine
This model rotogravure printing machine is cost effective, compact structure, automatic control, high precision color register, high quality printing result, suitable for many kinds plastic film, paper roll material high quality and efficiency printing.
Note: it can extra equip horizontal color register structure, double side printing structure, electronic transmission structure.
Specification
|
Model
|
YAD-K2
|
|
Inner diameter of core
|
76mm
|
|
Diameter of material
|
600mm
|
|
Diameter of printing plate
|
100-300mm
|
|
Width of printing
|
1100mm
|
|
Register precision
|
0.10mm
|
|
Max speed
|
220m/min
|
|
Overall dimensions(mm)
|
16225x2895x2965
|
|
Total power
|
180kw
|
Material
|
Printing material
|
Thickness
|
Printing material
|
Thickness
|
|
OPP/BOPP/CPP
|
15-60μm
|
PET
|
12-60μm
|
|
PA
|
15-60μm
|
Cellophane
|
20-40μm
|
|
PVC/PO/PVDC
|
40-70μm
|
composite film
|
up to 150g/m2
|
|
composite pressure film
|
up to 150g/m2
|
PE
|
60-100μm
|
Feature
a) Independent heavy duty type machine frame
b) Oil immersed type gear box for shaftless plate cylinder loading
c) Unwinding and rewinding with double roll non-stop material splicing
d) Four floating roller and seven motor synchronous closed loop for tension control
e) Japan Fujikura brand low friction air cylinder for tension swing roller control
f) Japan Yaskawa brand frequency inverter for vector frequency conversion motor control
g) Swiftly reaction for speed increasing and decreasing, steady color register, high output
h) With double cooling structure of water cooling and air cooling
i) Double screw rod longitudinal auto color register structure
j) Three direction adjustable double shaft pneumatic control scraping blade (movement: ±6mm)
k) External type independent heating system
l) Touch screen controller for tension controlling
m) High static picture and precision color register system
n) Lifting type escalator
o) Indirect ink transfer device (Option)
